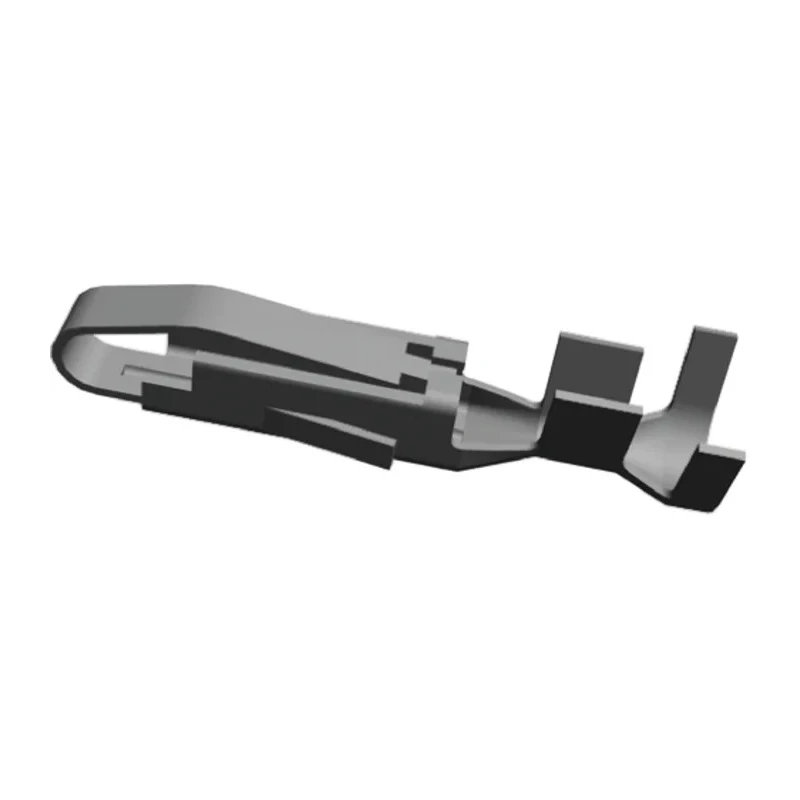

TE Connectivity Low Power Drawer Series Hermaphroditic Crimp Terminal with Gold Plating for 24 AWG to 20 AWG Wire 170313-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 2A |
| Model | 170313-1 |
| Gender | Hermaphroditic |
| Contact Material | Phosphor Bronze |
| Series | Low Power Drawer |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Standard Blind-Mate Drawer and Hybrid Blind-Mate Drawer Connector Housings |
| Standards/Approvals | UL 1015, UL 1007, RoHS |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- This crimp terminal features gold-plated phosphor bronze contacts for reliable conductivity.
- It supports minimum wire sizes of 24 AWG (0.2 mm²) and maximum wire sizes of 20 AWG (0.5 mm²).
- Designed for standard and hybrid blind-mate drawer connector housings.
- Operating temperature ranges from -20°C to 105°C ensuring durable performance.
- Termination type is crimp, providing secure wire connections.
- Meets UL 1015, UL 1007, and RoHS standards for safety and environmental compliance.
- Low power drawer series suitable for electronic power connector applications.
Product Description
TE Connectivity model 170313-1 is a hermaphroditic crimp terminal from the Low Power Drawer series, designed for reliable electrical connections in electronic and electrical applications. It is engineered for use with standard blind-mate drawer and hybrid blind-mate drawer connector housings, supporting wire sizes ranging from 24 AWG (0.2 mm²) minimum to 20 AWG (0.5 mm²) maximum. The contact material is phosphor bronze with a gold plating finish, enhancing conductivity and corrosion resistance.
The terminal supports a continuous current rating of 2 amps, suitable for low current power connections. It operates reliably within a temperature range of -20°C to 105°C, making it ideal for use in various industrial, electronics manufacturing, and power connector applications.
The crimp termination type ensures secure and stable wire connection, critical for maintaining electrical integrity in demanding environments. The product complies with UL 1015 and UL 1007 standards, along with RoHS directives, ensuring it meets rigorous safety and environmental requirements.
These crimp terminals facilitate efficient assembly in blind-mate drawer connector systems commonly found in power distribution and electronic equipment manufacturing. Their hermaphroditic design allows for versatile connection arrangements, simplifying wiring setups.
This crimp terminal features gold-plated phosphor bronze contacts for reliable conductivity. It supports minimum wire sizes of 24 AWG (0.2 mm²) and maximum wire sizes of 20 AWG (0.5 mm²). Designed for standard and hybrid blind-mate drawer connector housings.
Operating temperature ranges from -20°C to 105°C ensuring durable performance. Termination type is crimp, providing secure wire connections. Compliant with UL 1015, UL 1007, and RoHS standards for safety and environmental compliance.
Durable construction ideal for industrial and electronic assembly applications. Explore EnvMart’s extensive range of TE Connectivity power connectors and Crimp Terminals for reliable and high-performance electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports wire sizes ranging from 24 AWG (0.2 mm²) minimum to 20 AWG (0.5 mm²) maximum.
It has a continuous current rating of 2 amps, suitable for low current power connections.
The operating temperature range is from -20°C to 105°C, allowing it to function in various environments.
This model uses crimp termination, which ensures secure and stable wire connections.
The contacts are made of phosphor bronze and feature gold plating, enhancing conductivity and corrosion resistance.
It is designed for use with standard and hybrid blind-mate drawer connector housings.
It complies with UL 1015, UL 1007, and RoHS standards for safety and environmental compliance.
This terminal is hermaphroditic, allowing for versatile connection arrangements.
The country of origin for this product is India.
The model number is 170313-1, which identifies this specific crimp terminal in the Low Power Drawer series.
This crimp terminal is suitable for electronic power connector applications, particularly in industrial and electronics manufacturing.
The gold-plated contacts and crimp termination type enhance the reliability and stability of electrical connections in demanding environments.
