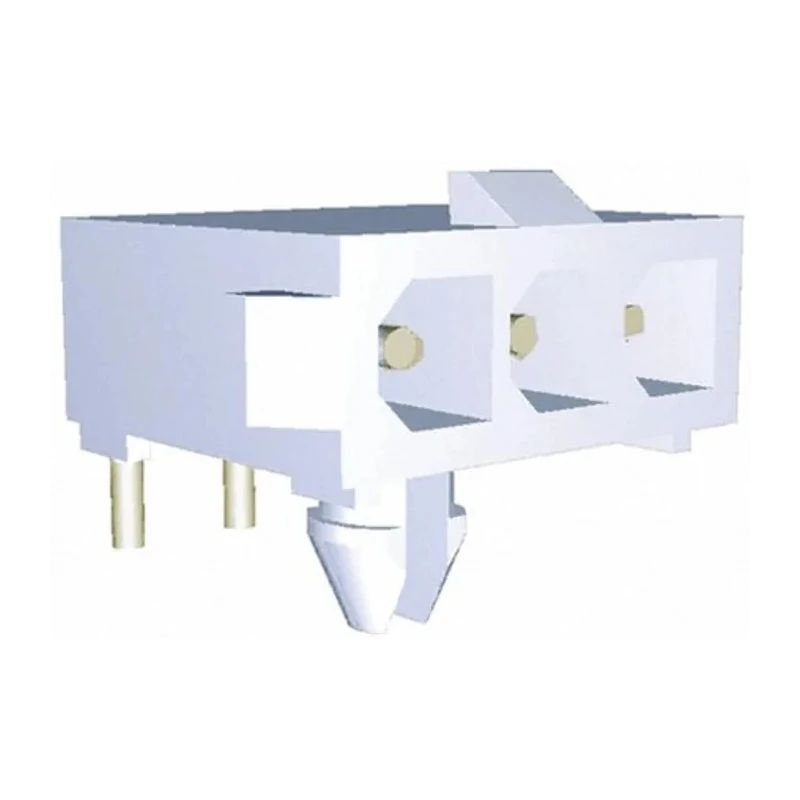

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header, 3 Contact 4.14 mm Pitch 1-770967-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 4.14mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector features a shrouded design with a positive locking latch mechanism for secure mating.
- Constructed with a white UL94V-0 nylon housing for flame retardance and durability.
- Brass contacts plated with gold ensure reliable electrical conductivity and corrosion resistance.
- Operates safely at a current rating of 9.5A and voltage rating of 600V.
- Designed for a single row with right angle orientation and through-hole mounting for easy PCB integration.
- Suitable for industrial, electronic components, power, and connector applications.
- Minimum operating temperature is -20°C and maximum is 85°C ensuring a wide range of environmental suitability.
- Termination type is solder to facilitate secure electrical connections.
Product Description
TE Connectivity 1-770967-1 Mini-Universal MATE-N-LOK Series right angle through hole PCB header is designed for wire-to-board electrical connections with a 4.14 mm pitch and 3 male contact pins.
The shrouded connector system features a white UL94V-0 nylon housing that incorporates a positive locking latch mechanism, ensuring secure mating and reliable board retention through integrated board locks. The brass contact pins are plated in gold to provide excellent corrosion resistance and outstanding electrical conductivity.
Rated for 9.5A current and 600V voltage, this connector is ideal for use in various industrial and electronic component applications including power connections and PCB wiring systems. It is mounted through the PCB using a right angle through-hole design, easing installation and providing secure mechanical support.
This PCB header is engineered to operate in a wide temperature range from -20°C up to 85°C, making it suitable for demanding environments. The termination type is solder, suitable for providing strong and durable electrical and mechanical connections on circuit boards.
The connector has a shrouded design with a positive latch for secure mating. Constructed from flame retardant UL94V-0 nylon housing. Brass male contacts plated with gold for reliability. Supports current up to 9.5 Amps and voltage up to 600 Volts.
Single row with right angle orientation and through-hole mount. Operating temperature range from -20°C to 85°C. Solder termination type for PCB attachment.
This TE Connectivity Mini-Universal MATE-N-LOK connector system is widely used in industrial, manufacturing, electronics, and power distribution applications where reliable PCB connections are required. The product is part of a series that includes various plug housings compatible for comprehensive system designs.
Explore the extensive range of connectors available on EnvMart for advanced electronic and power interconnection solutions.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 9.5A and a voltage rating of 600V.
The pitch size of this connector is 4.14 mm.
It uses solder termination for secure electrical connections on circuit boards.
The housing is made of UL94V-0 nylon, and the contacts are brass plated with gold for corrosion resistance and conductivity.
It operates within a temperature range of -20°C to 85°C.
This model features 3 male contact pins.
It has a right angle orientation and is designed for through-hole mounting.
Yes, it is designed for various industrial and electronic component applications, including power connections and PCB wiring systems.
It features a shrouded design with a positive locking latch mechanism to ensure secure mating and reliable board retention.
The connector is manufactured in India.
This connector is part of the Mini-Universal MATE-N-LOK series.
It is designed for wire-to-board electrical connections.
