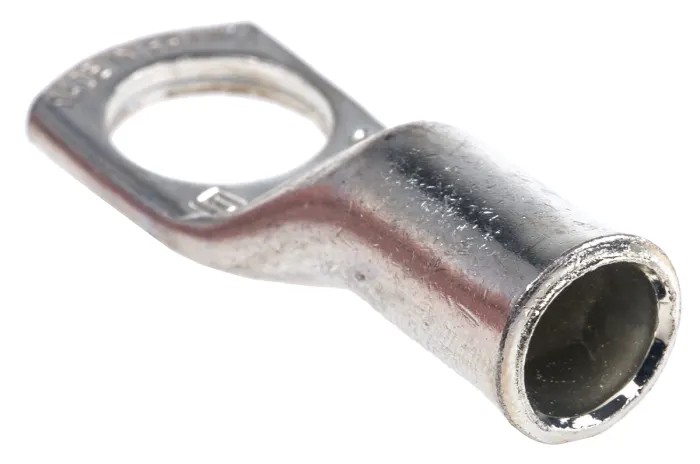

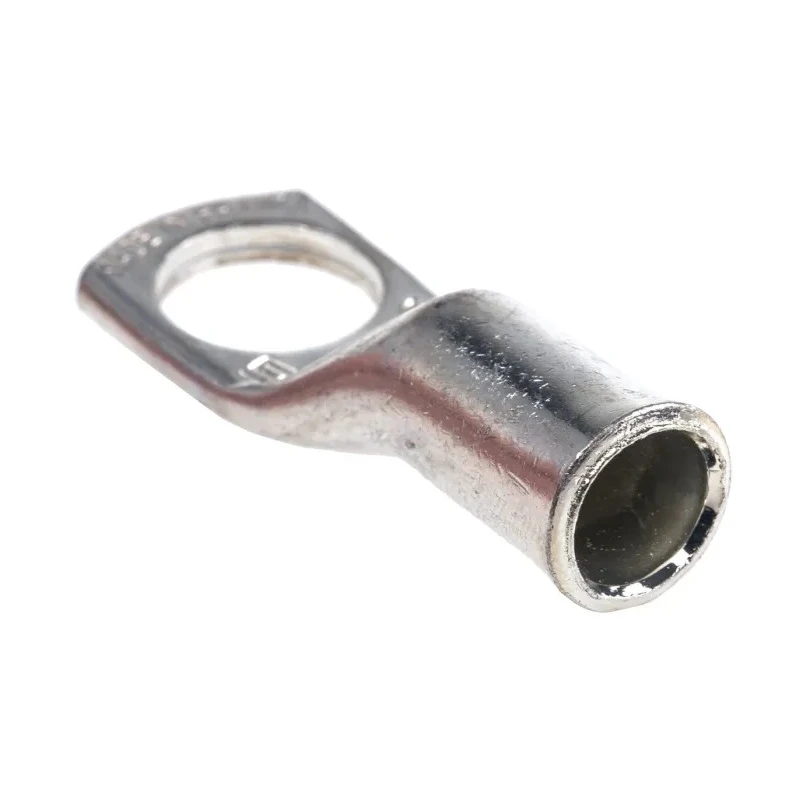

TE Connectivity XCT Uninsulated Ring Terminal 12 mm Stud Size 2 AWG Wire Size Grey 710036-4

TE Connectivity presents the XCT series uninsulated ring terminal model 710036-4, specifically engineered to provide reliable and efficient connection for 2 AWG copper conductors. With a 12 mm stud size and grey coloration, this terminal offers superior conductivity due to its high-quality electrolytic copper base material plated with bright tin to prevent corrosion and oxidation over time.

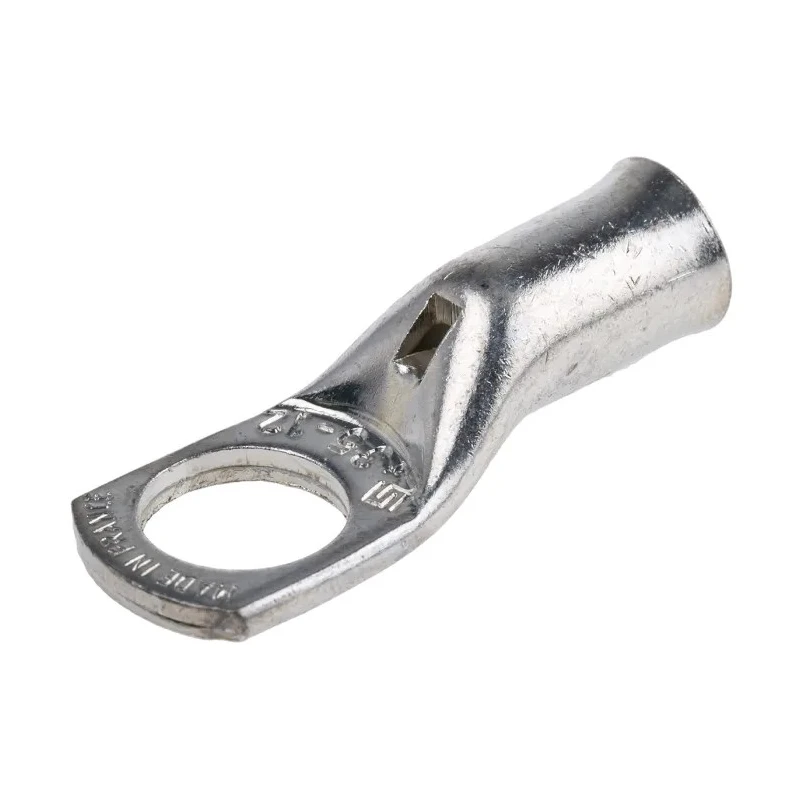

The terminal features a funnel entry barrel that allows easy wire insertion and reduces assembly time. Additionally, the barrel includes an inspection window to verify correct conductor placement before crimping. Crimping can be performed via hexagonal compression or indent methods, offering flexibility in electrical assembly operations.

This terminal’s robust construction is highlighted by its 1.5 mm thickness, 46 mm total length, 12.8 mm inner ring diameter, and 17 mm outer ring diameter, ensuring dependable mechanical and electrical performance. It is designed to meet NF C 20 130 French standard requirements, making it suitable for stringent industrial and commercial settings.

Applications for this ring terminal include electrical wiring in industrial machinery, power connectors in control systems, and general electronics assembly requiring secure and corrosion-resistant connections. Its grey color coding aids easy identification in electrical panels and wire harness setups.

High conductivity electrolytic copper with bright tin plating for corrosion resistance. Funnel entry barrel for efficient wire insertion and crimping. Inspection window in barrel for visual conductor confirmation. Compatible with hexagonal compression and indent crimping techniques.

Designed to meet NF C 20 130 quality standards. Overall length: 46 mm, Outer ring diameter: 17 mm, Inner ring diameter: 12.8 mm. Terminal thickness: 1.5 mm for durability. Suitable for industrial, commercial, and electronic applications.
