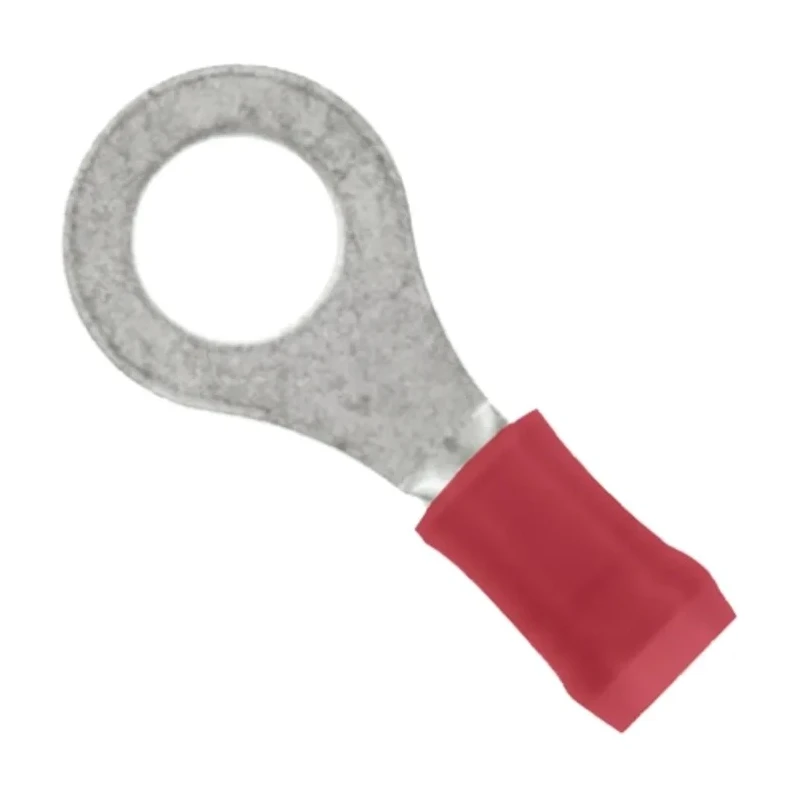

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG 16 AWG Wire Size Nylon Red 151730

TE Connectivity 151730 PIDG Insulated Ring Terminal is engineered for consistent and reliable wire connections in demanding industrial and electronic environments. Featuring a precision-formed copper body with tin plating, this ring terminal provides excellent conductivity and corrosion resistance. The outer nylon insulation in bright red enhances identification and offers durable protection.

The terminal's copper sleeve surrounding the wire barrel improves insulation support and prevents wire strand fraying, critical for maintaining connection integrity. Serrations inside the barrel maximize contact area and tensile strength, ensuring secure crimps even under mechanical stress. The funnelled wire entry design allows for rapid wire insertion during high-volume manufacturing, enhancing production efficiency.

Compatible with wire sizes ranging from 22 AWG to 16 AWG and a stud size of M5, it suits various industrial applications, including instrumentation, control systems, lighting fixtures, power supplies, panel boxes, motors, aerospace, transportation, lifting equipment, and household appliances.

These PIDG ring terminals meet or exceed MIL-T-7928, Type II, Class 1 and 2 standards for quality assurance. The color-coded red nylon insulation facilitates easy wire size recognition and tooling.

Constructed with a high conductivity copper body for efficient current flow. Copper sleeve improves wire insulation support and prevents wire fraying. Serrations inside the barrel provide maximum contact and tensile strength after crimping.

The funnelled wire entry enables easy and fast wire insertion during production. Color-coded nylon sleeve allows quick wire size and tooling identification. Designed for reliable and uniform crimps using specialized tool dies.

Suitable for use in instrumentation, control panels, lighting, power supplies, and transportation equipment. Meets or exceeds MIL-T-7928 Type II Class 1 and 2 requirements in many applications.

This product is ideal for industrial, laboratory, manufacturing, electronics, and HVAC wiring applications where secure and durable electrical connections are critical. The PIDG insulation technology offers reliable performance under high mechanical and environmental stress.
