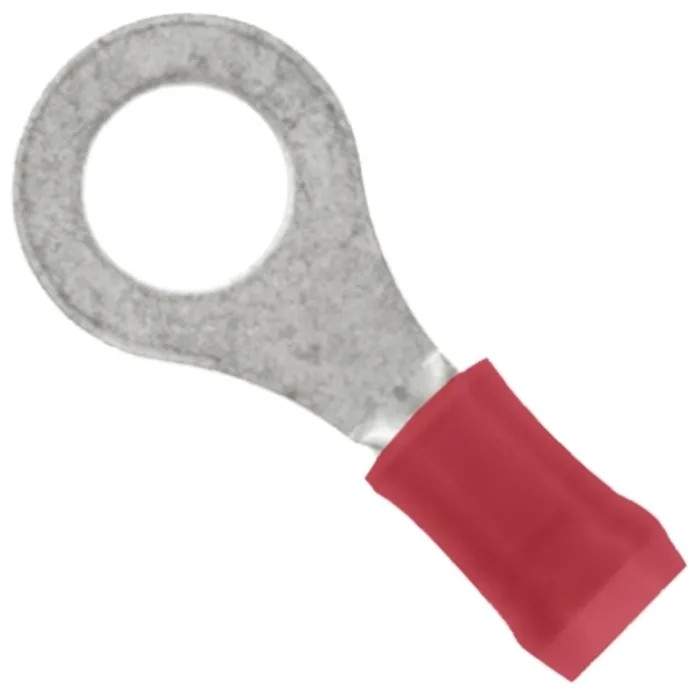

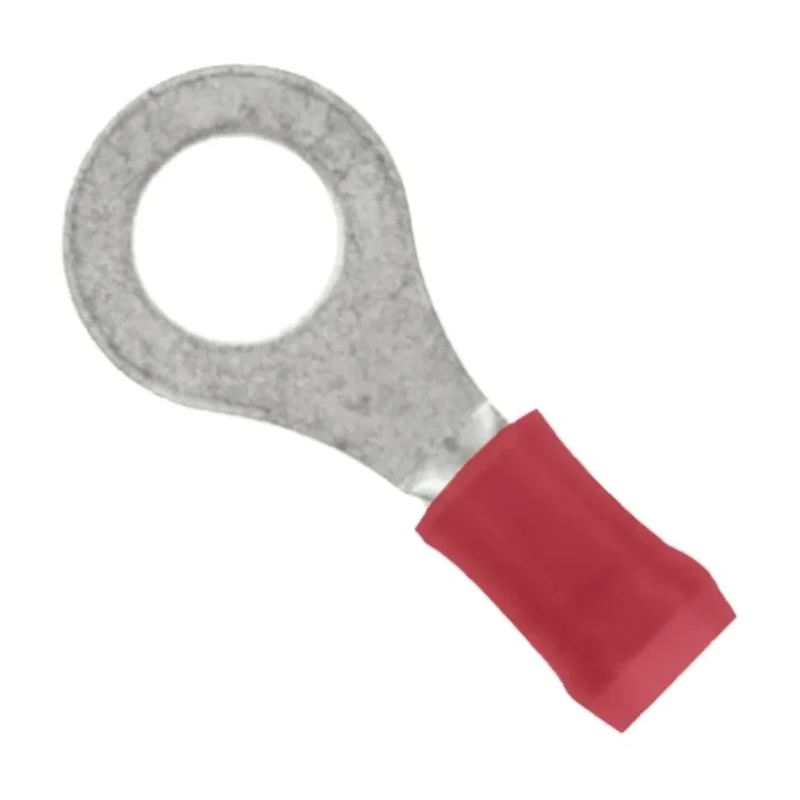

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire Size Red 151730

TE Connectivity 151730 PIDG Insulated Ring Terminal offers a reliable and uniform crimping solution for wire terminations with M5 stud size compatibility and accommodating wire sizes from 22 AWG to 16 AWG. This insulated Ring Terminal features a high conductivity copper body plated with tin to ensure excellent electrical performance and durability in harsh environments.

The red nylon insulation sleeve aids in quick wire size identification and provides robust electrical insulation. The terminals have a precise overall length of 24.74 mm and an outer ring diameter of 9.53 mm, with an inner ring diameter of 5.21 mm, ensuring compatibility with M5 studs.

The design includes serrations in the wire barrel to maximize contact area and tensile strength after crimping, while an internal copper sleeve supports the wire insulation, effectively preventing fraying of wires. The funnelled wire entry facilitates easy, high-speed wire insertion during production processes.

These terminal connectors meet rigorous reliability standards and are suited for a wide range of industrial and commercial applications including instrumentation, control systems, lighting circuits, power supplies, panel constructions, transportation sectors, lifting equipment, electric motors, aerospace applications, and household appliances.

They are designed for operation up to a maximum temperature of 105°C, ensuring suitability for demanding electrical and mechanical conditions. The product does not carry specific approvals but aligns with common industrial requirements for wire terminals.

High conductivity copper body for effective electrical transmission. Nickel-plated copper contact for enhanced corrosion resistance. Red nylon insulation sleeve for wire identification and insulation. Designed for M5 stud size and wire sizes from 22 AWG to 16 AWG.

Maximum operating temperature of 105°C for reliable performance. Serrated barrel ensures secure crimp and tensile strength. Copper sleeve prevents wire fraying and supports insulation. Funnelled wire entry for fast and efficient assembly.

Suitable for diverse industrial, aerospace, and commercial applications. Explore more items in the Power Connectors category at EnvMart for high-quality electrical components designed to meet your application requirements.
