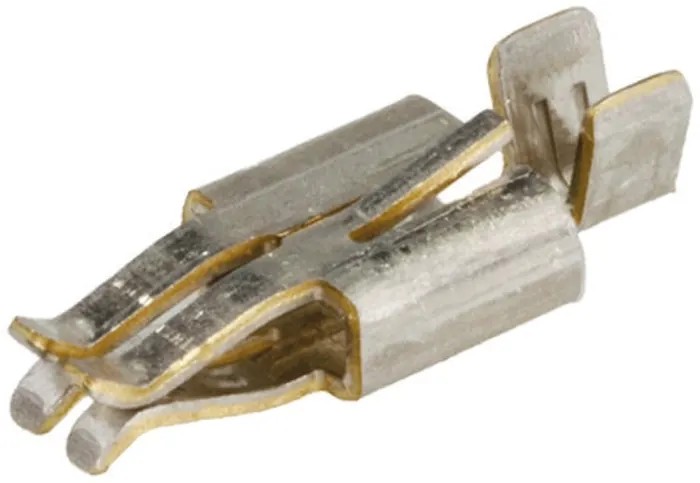

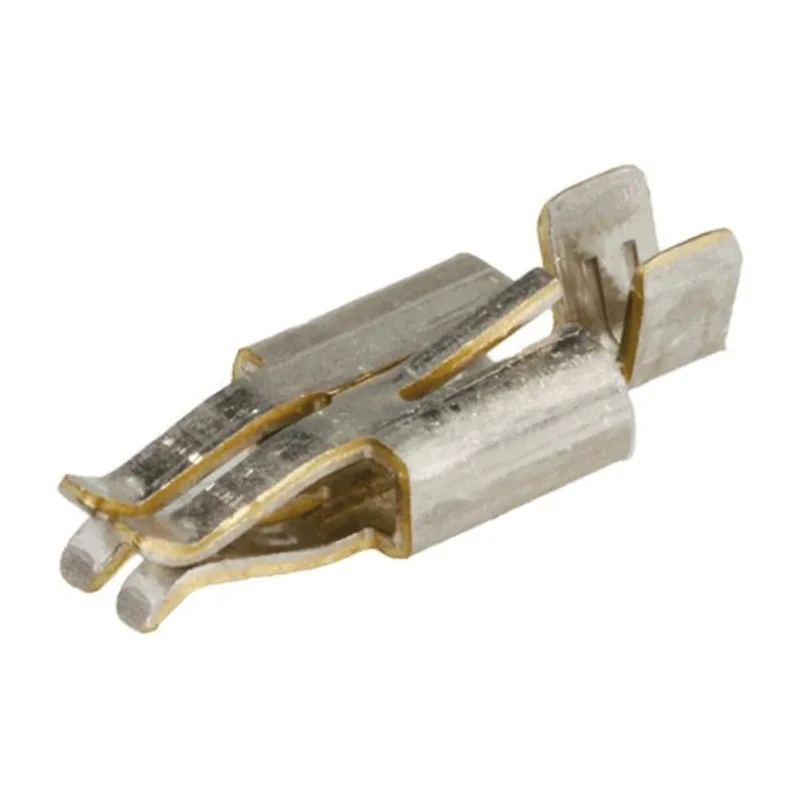

TE Connectivity Hermaphroditic Series Female Crimp Terminal 5A Current, 22 AWG Min, 18 AWG Max, 11.9mm Length 2058302-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 11.9mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Hermaphroditic |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Hermaphroditic Blade and Receptacle Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
Key Features
- This terminal is female gender and intended for use with hermaphroditic blade and receptacle connector housing.
- Contacts are made of copper alloy with tin plating for reliable electrical connection.
- Operates between -40°C and 105°C, suitable for various industrial environments.
- Crimp termination type ensures secure and durable wire connection.
- Compact length of 11.9 mm allows use in low profile SMT and reflow processing.
- Connector mates to itself with horizontal and vertical mating capabilities.
- Designed for LED lighting controls, LED strips, and channel lettering applications.
- Rounded corners minimize shadowing and redundant SMT pads enhance soldering reliability.
Product Description
TE Connectivity 2058302-1 Hermaphroditic Series Female Crimp Terminal is engineered for in-line board-to-board SMT applications requiring reliable and compact connections. Rated for 5A current, it supports minimum wire size of 22 AWG and maximum wire size of 18 AWG, making it adaptable to various wire gauges.
This crimp terminal features copper alloy contacts plated with tin to maintain excellent conductivity and corrosion resistance. The product is designed to operate safely between -40°C and 105°C, which suits industrial, electronic, and lighting environments.
The terminal's compact length of 11.9 mm and low profile flat surface make it compatible with SMT and reflow soldering processes. It can be mated horizontally and vertically with itself, and articulation from 90° to 180° is possible for flexible PCB designs.
Applications include LED lighting controls, LED strips, and channel lettering where compact and reliable electrical connections are critical. Rounded corners reduce shadowing and the redundant SMT pads provide enhanced solder reliability. Its solder pad footprint matches Tyco Electronics SMT Poke-In LED connectors for versatile PCB design compatibility.
This terminal is female and designed for use with hermaphroditic blade and receptacle connector housing. Constructed with copper alloy contacts plated in tin to ensure strong electrical connection. Operating temperature range from -40°C to 105°C enables use in varied industrial scenarios.
Crimp termination type provides secure wire attachment and durability. Length of 11.9 mm supports compact PCB layouts. Enables board-to-board connection with mating horizontally and vertically, including articulation from 90° to 180°.
Ideal for use in LED lighting applications and channel lettering. Redundant SMT pads and rounded corners ensure manufacturing efficiency and reliability. Compatible with standard SMT Poke-In LED connectors for design flexibility.
For electronic manufacturing, industrial automation, and LED lighting applications, this TE Connectivity crimp terminal provides a robust and versatile solution. Browse related power connectors and Crimp Terminals on EnvMart for complementary components and tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crimp terminal is rated for a current of 5A.
It supports a minimum wire size of 22 AWG and a maximum wire size of 18 AWG.
The length of this terminal is 11.9 mm.
This model operates safely between -40°C and 105°C.
The contacts are made of copper alloy and are plated with tin for improved conductivity and corrosion resistance.
It is designed for use with hermaphroditic blade and receptacle connector housing, allowing for horizontal and vertical mating capabilities.
This terminal uses a crimp termination type for secure wire attachment.
It is commonly used in LED lighting controls, LED strips, and channel lettering applications.
The terminal has rounded corners to minimize shadowing and redundant SMT pads to enhance soldering reliability.
This model allows articulation from 90° to 180°, providing flexibility for various PCB designs.
The country of origin for this terminal is India.
Yes, the compact design of this terminal makes it suitable for low profile SMT and reflow processing.
