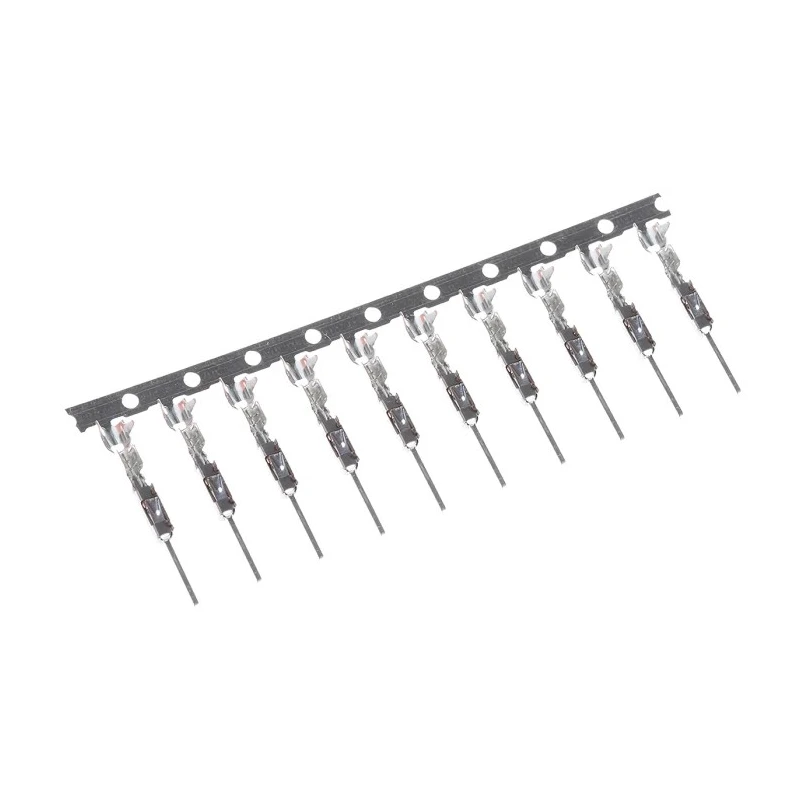

TE Connectivity Micro Quadlock System Series Male Crimp Terminal with Tin Contact Plating 5-965908-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Gender | Male |
| Series | Micro Quadlock System |
| Termination Type | Crimp |
| For Use With | Micro Quadlock System Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 0.75mm² |
Key Features
- Designed with a robust construction for high current capacity.
- Utilizes four points of contact for enhanced electrical reliability.
- Features a split function design to reduce fatigue caused by vibration and mechanical stress.
- Safe handling design facilitates secure insertion into connector housing cavities.
- Compatible with Micro Quadlock System connector housings.
- Terminated via crimp methods suitable for wire sizes between 0.5 mm² and 0.75 mm².
Product Description
TE Connectivity 5-965908-1 Micro Quadlock System Series Male Crimp Terminal with tin plating is engineered for reliable electronic and electrical connectivity in motor vehicles and other applications that encounter vibration and mechanical stress. This male crimp terminal is specifically designed to fit Micro Quadlock System connector housings, ensuring dependable mechanical and electrical performance.
The contact features a square 0.63 mm x 0.63 mm pin that engages with a socket contact delivering four points of contact for optimal reliability. The unique split function design separates the internal contact body, responsible for electrical and electro-mechanical functions, from the steel cantilever spring which provides retention and mechanical protection, thereby extending contact life by reducing fatigue.
Its tin plating ensures corrosion resistance and consistent conductivity, while supporting wire sizes from 0.5 mm² to 0.75 mm² terminated by crimping techniques. The terminal is suitable for automotive and other high-reliability environments where vibration resistance and secure connections are critical.
Robust design with high current carrying capacity. Four reliable points of contact for consistent electrical performance. Split functions reduce fatigue during vibration and mechanical stress. Safe handling with audible click upon full insertion.
Tin plating provides corrosion resistance. Compatible with Micro Quadlock System connector housings.
This TE Connectivity Micro Quadlock Series Male Crimp Terminal is ideally applied in automotive, industrial, electronic assembly, and other demanding electrical connector applications. It is a critical component in ensuring long-term dependable operation of wiring harnesses subjected to mechanical stress and vibration.
Explore EnvMart’s extensive range of electronics components including Crimp Terminals, connectors, and wiring solutions for reliable industrial and automotive installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This male crimp terminal supports wire sizes from 0.5 mm² to 0.75 mm², which can be terminated using crimping techniques.
It is designed for use with Micro Quadlock System connector housings, ensuring a secure fit and reliable performance.
The terminal features tin plating, which provides corrosion resistance and helps maintain consistent conductivity.
The split function design separates the internal contact body from the steel cantilever spring, reducing fatigue caused by vibration and mechanical stress, thus extending contact life.
This crimp terminal is male, designed to connect securely with compatible socket contacts.
The terminal is manufactured in India.
This terminal is part of the Micro Quadlock System series, which is engineered for high reliability in various applications.
Key features include a robust design for high current capacity, four points of contact for enhanced electrical reliability, and a safe handling design that provides an audible click upon full insertion.
It is suitable for automotive, industrial, and electronic assembly applications, particularly in environments that experience vibration and mechanical stress.
The terminal utilizes a crimp termination method, which is suitable for the specified wire sizes.
It features a safe handling design that facilitates secure insertion into connector housing cavities, along with an audible click to confirm full insertion.
The four points of contact are designed to enhance electrical reliability, ensuring consistent performance in demanding applications.
