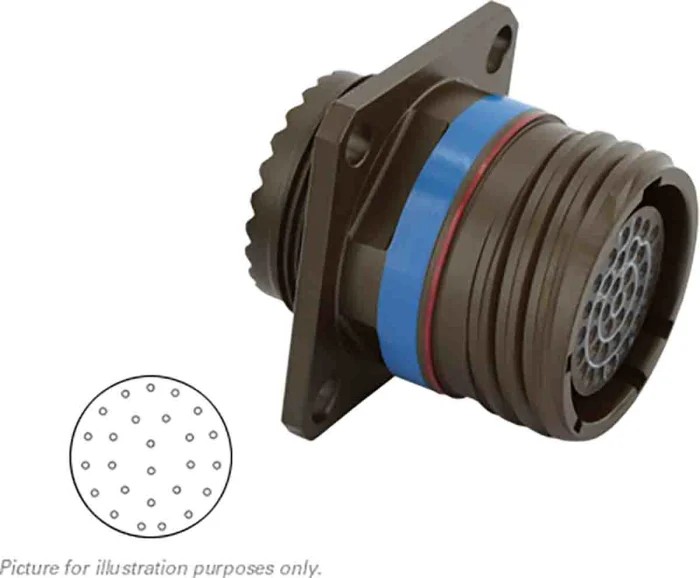

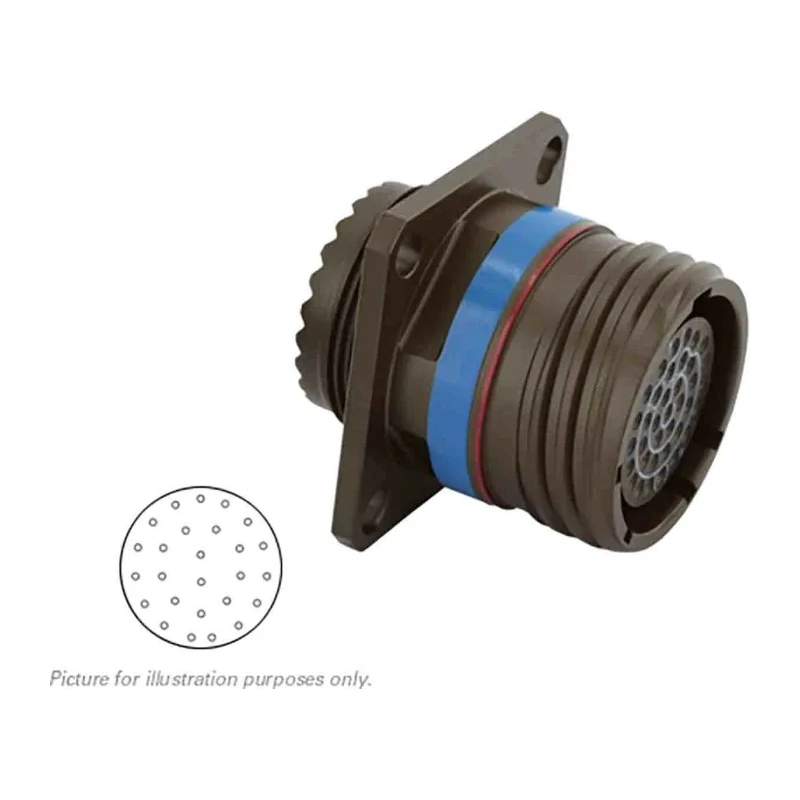

Souriau Sunbank by Eaton MIL Spec Circular Connector 26 Way Female Contacts Copper Alloy Straight 7.5A 8D Series 8D017W26SA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 7.5A |
| Model | 8D017W26SA |
| IP Rating | IP67 |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | 8D |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 17 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Complies with MIL-DTL-38999 military standard for reliability.
- Features 26 female contacts with 7.5A current rating.
- Constructed with copper alloy contacts and gold over nickel plating.
- Aluminium housing with olive drab cadmium plated shell for durability.
- Offers IP67 rated protection and resistance from -65°C to 175°C operating temperature.
- Uses screw coupling mating type with quick self-locking mechanism.
- Designed as a straight connector with crimp termination for secure connections.
- Series 8D connector suitable for civil, military, marine, offshore, and industrial applications.
Product Description
The Souriau Sunbank by Eaton 8D017W26SA is a high-performance Mil Spec Circular Connector designed for industrial, military, and aerospace environments requiring robust and reliable electrical connections.
This 26-way female contact connector belongs to the 8D series of MIL-DTL-38999 standard, ensuring compliance with rigorous military-grade quality assurance specifications. Its copper alloy female contacts are plated with gold over nickel to enhance corrosion resistance and electrical conductivity.
The connector's aluminium housing combined with olive drab cadmium plating on the shell provides excellent environmental protection, including an IP67 rating for water and dust ingress protection. It operates reliably within a wide temperature range from -65° Celsius up to 175° Celsius, suitable for extreme conditions often encountered in civil and military aeronautics as well as marine and offshore applications.
The 8D017W26SA connector features a screw coupling with a quick, self-locking mechanism offering secure and vibration-resistant connections. The straight orientation and crimp termination type facilitate easy and durable installation. Additionally, the design provides EMI enhanced protection via shielding ring and shell-to-shell bottoming for improved signal integrity.
This product does not currently hold specific approvals or certifications but meets strict performance criteria applicable in harsh industrial environments. Its high resistance to vibration and thermal extremes makes it an ideal choice for critical applications demanding longevity and dependability.
Compliance with MIL-DTL-38999 and industry standards. Robust copper alloy contacts with high-quality plating. Durable aluminium housing with corrosion-resistant plating. Wide operating temperature and IP67 protection. Secure screw coupling with self-locking mechanism.
Suitable for aerospace, marine, industrial, and military sectors. Crimp termination ensures reliable electrical contacts. Compact 8D series size 17 shell for versatile use. Select Souriau Sunbank by Eaton connectors from EnvMart for superior performance in critical connectivity applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7.5A, making it suitable for various electrical applications.
It offers an IP67 rating, providing protection against dust and water ingress.
The connector operates reliably within a temperature range of -65°C to 175°C.
It features copper alloy contacts with gold over nickel plating and an aluminium housing with olive drab cadmium plating.
This connector is designed with 26 female contacts.
It utilizes a crimp termination type for secure electrical connections.
It features a screw coupling mating type with a quick self-locking mechanism for secure connections.
It complies with the MIL-DTL-38999 military standard, ensuring high reliability and performance.
The shell size of this model is 17, which is part of the 8D series.
This connector is suitable for aerospace, marine, industrial, and military applications.
It has a straight orientation, designed for easy installation.
The gold over nickel plating enhances corrosion resistance and electrical conductivity, improving performance in harsh environments.
