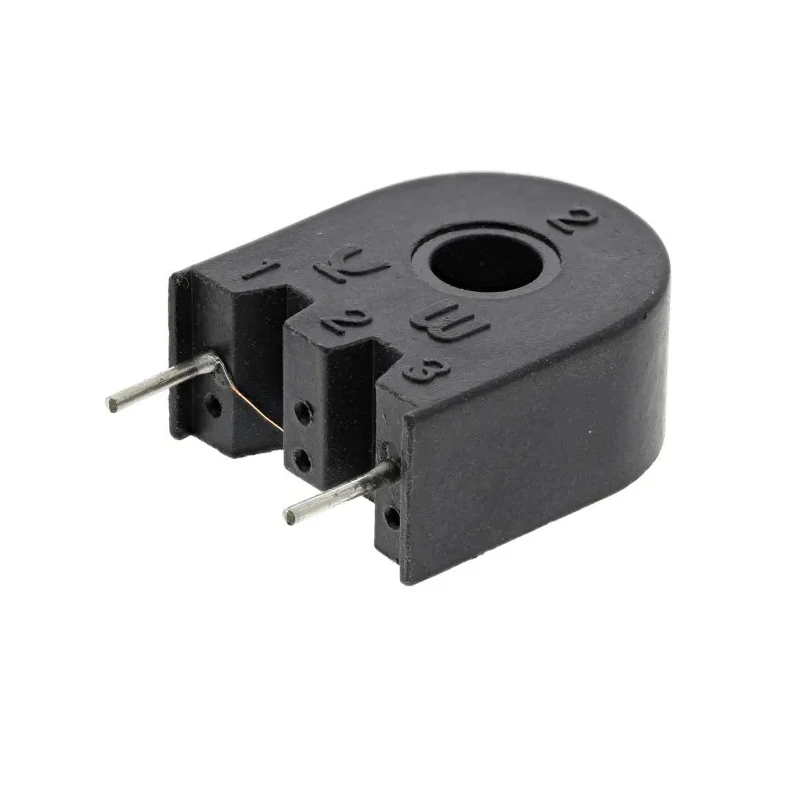

Murata Power Solutions 5600 Series Current Transformer 10 A 56300C

Murata Power Solutions 56300C 5600 Series Current Transformer 10 A is a high-frequency current sensing device designed for precise monitoring of AC currents in electronic systems. With a primary current rating of 10 A and secondary current of 1 A, it is well-suited for applications such as switched-mode power supplies, motor controls, and electronic lighting ballasts.

The transformer features a through-hole mount type and wire terminal connections ensuring a reliable and secure installation in various industrial and commercial electronic applications. It operates efficiently across a minimum operating frequency of 20 kHz up to a maximum of 200 kHz, providing broad usability in high-frequency circuits.

Compact in size, measuring 16.79 mm in length, 8.89 mm in width, and 20.19 mm in depth, this transformer integrates easily into densely packed circuit boards. It withstands a wide operating temperature range from -40°C to 85°C, making it suitable for various environmental conditions.

With primary DC resistance of 5.73 Ω and secondary DC resistance of 8.59 Ω, alongside an inductance of 160 mH, it delivers consistent electrical characteristics for reliable sensing and control. Manufactured in China, this product aligns with quality expectations for current transformers.

Provides reliable current sensing with a primary current rating of 10 A. Features a through-hole mount type for secure PCB installation. Operates efficiently within a frequency range of 20 kHz to 200 kHz. Compact dimensions of 16.79 mm length, 8.89 mm width, and 20.19 mm depth.

Operates reliably in temperatures ranging from -40°C to 85°C. Constructed to support switched-mode power supplies and motor control applications. Utilizes wire terminal type connection for ease of wiring. Secondary current rated at 1 A for signal processing.

High inductance value of 160 mH for improved performance. Manufactured in China and conforms to product quality standards.

This current transformer is ideal for industrial, automation, and process control environments where accurate current monitoring is essential to optimize system performance and ensure operational safety. It provides high-frequency sensing reliability required in automation systems and electronic equipment.
