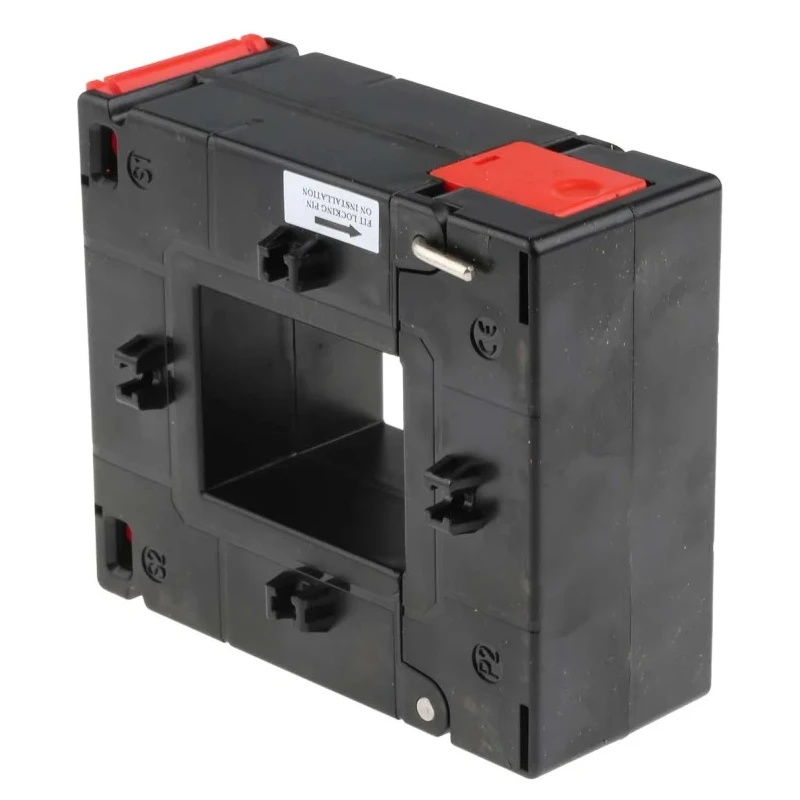

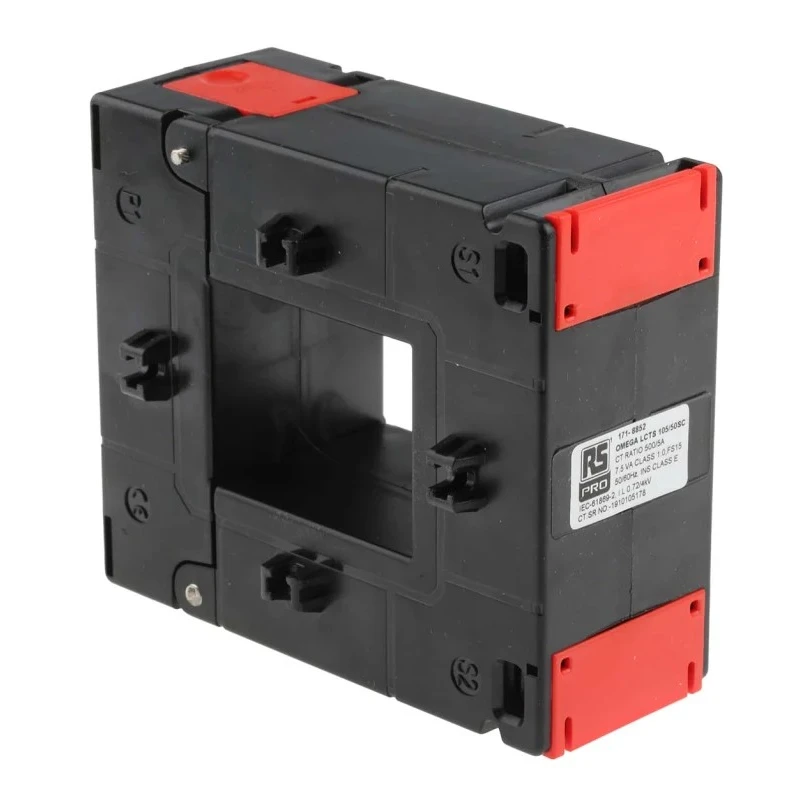

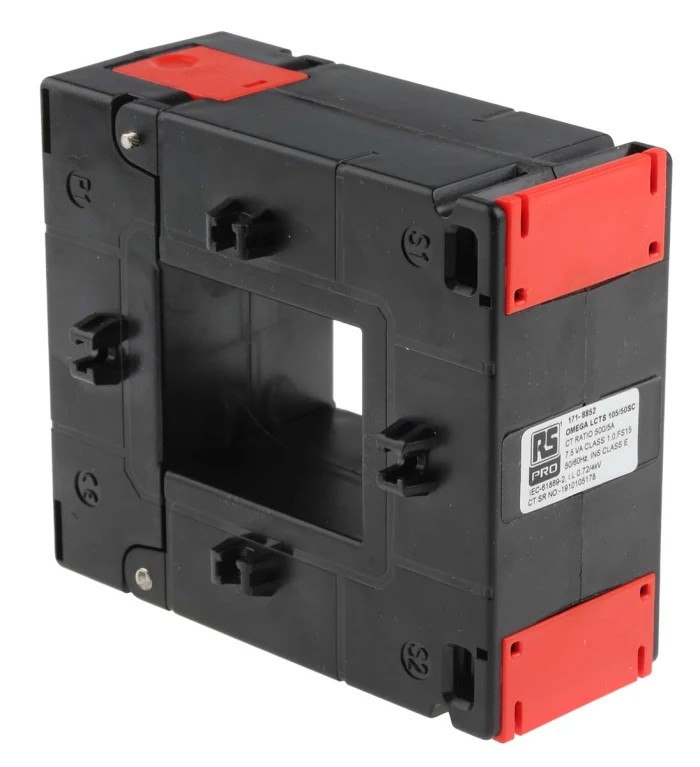

RS PRO Current Transformer 500 A 21mm Bore Surface Mount Split Core IEC 60044-1 UL94V-0 171-8852
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 171-8852 |
| Depth | 51mm |
| Width | 108mm |
| Mount Type | Surface Mount |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -5°C |
| Bore Diameter | 21mm |
| Secondary current | 5A |
| Terminal type | Wire |
| Insulation Class | E |
| Primary Current | 500A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| The RS PRO base mounted split core transformer has a current ratio of 500 | 5. It offers an efficient method by which the current can be measured without breaking the conductor, thereby reducing installation and commissioning time. It is a surface mounted device |
| HOBUT CTSCM Series Clip Fit Current Transformer, 500A Input, 500 | 5, 5 A OutputBrand: HOBUT |
Key Features
- Features a cost-effective moulded case with flame retardant grade enclosure.
- Equipped with wire terminals for secure connections.
- Operates efficiently between -5°C and 55°C ambient temperatures.
- Complies with standards IEC 60044-1, UL94V-0, IEC 61010-2, and IEC 61869-1.
- Surface mount design minimizes installation and commissioning time.
- Suitable for commercial power distribution and electrical substations applications.
- Insulation class E ensuring reliable electrical isolation.
- System voltage rating up to 720V maximum.
Product Description
RS PRO 171-8852 Current Transformer is a high-quality surface mounted split core transformer with a primary current rating of 500 A and a 21mm bore diameter. This transformer offers a secondary current of 5 A, providing an efficient and reliable current measurement method without breaking the conductor, thereby significantly reducing installation and commissioning time. The device is designed with a cost-effective moulded case and a flame retardant grade enclosure suitable for robust industrial and commercial use.
The unit operates within a temperature range from -5°C to 55°C and meets stringent electrical standards including IEC 60044-1, UL94V-0, IEC 61010-2, and IEC 61869-1. Its insulation class is rated E, and it supports system voltages up to 720 V. The current transformer is tested for electrical strength at 3 kV 50 Hz for 1 minute, guaranteeing safe and stable operation.
Its surface mount type facilitates easy installation on electrical panels and substations, making it ideal for commercial electric power distribution and substation monitoring systems. The product is manufactured in India, ensuring adherence to local quality and manufacturing standards.
Provides current ratio 500:5 for accurate current sensing. Flame retardant moulded case enhances safety. Wire terminal type for secure connections. Wide operating temperature range from -5°C to 55°C. Complies with IEC 60044-1 and IEC 61869-1 standards.
Surfacemount design for ease of installation. System voltage rating up to 720 V maximum. Test voltage 3 kV 50 Hz for 1 minute ensuring durability.
The RS PRO current transformer is suitable for industrial automation, process control, electrical substations, and commercial power distribution applications. It delivers reliable, cost-effective performance while maintaining compliance with industry standards. This model 171-8852 helps reduce installation complexity and enhances measurement safety in various electrical environments.
Explore more Current Transformers and electrical control devices at EnvMart for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this model is 500 A.
It provides a secondary current output of 5 A.
The bore diameter is 21 mm.
The maximum operating temperature is 55°C.
The minimum operating temperature is -5°C.
This unit features a surface mount design for easy installation.
It complies with IEC 60044-1, UL94V-0, IEC 61010-2, and IEC 61869-1 standards.
The insulation class is rated E.
The maximum system voltage rating is up to 720 V.
The depth is 51 mm and the width is 108 mm.
It is equipped with wire terminals for secure connections.
It is suitable for commercial power distribution and electrical substations applications.
