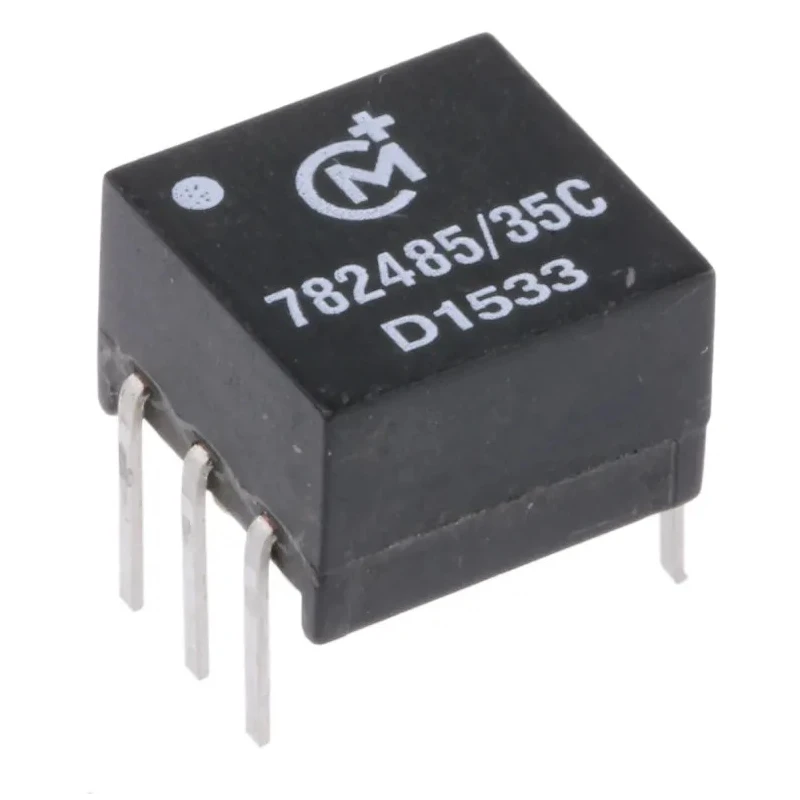

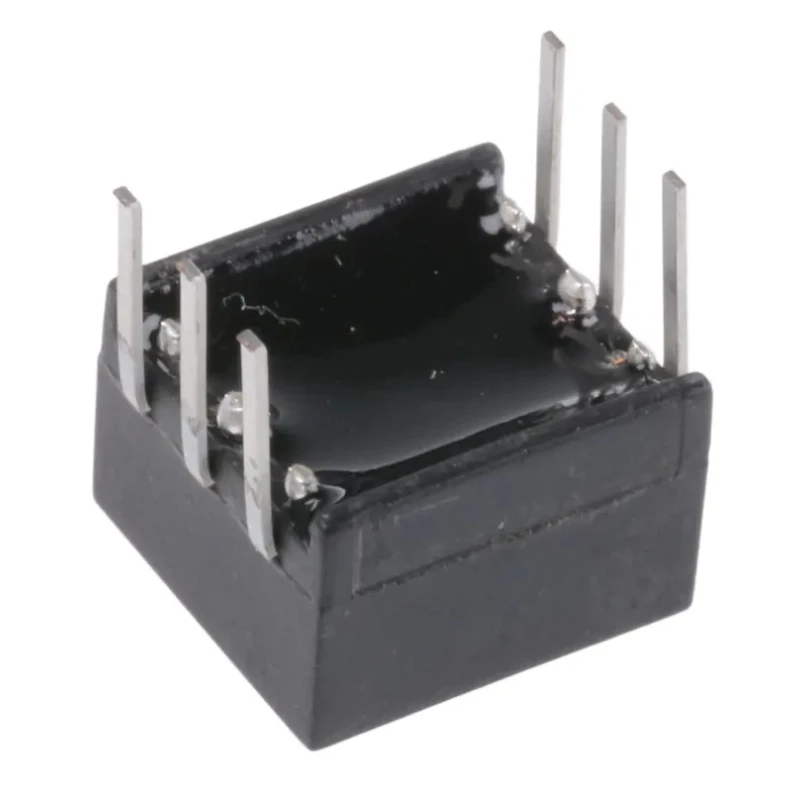

Murata Power Solutions Through Hole Pulse Transformer 1:2.2 Turns Ratio, 234μH Primary Inductance, 0.5Ω Primary 782485/35C

Murata Power Solutions 782485/35C Through Hole Pulse Transformer is engineered to provide efficient electrical isolation and signal transfer in electronic circuits. With a high primary inductance of 234μH and a turns ratio of 1:2.2, this transformer optimizes signal conversion for communication and power applications.

Featuring a primary DC resistance of 0.5Ω, it is designed to minimize energy loss and maintain signal fidelity. The transformer operates safely within a temperature range of -40°C to 85°C, ensuring reliable performance under diverse environmental conditions.

The component is housed in a through hole mount package with six pins, allowing easy and secure integration into printed circuit boards. Its compact size, measuring 9.14mm in length, 10.46mm width, and 6.35mm depth, supports space-constrained designs.

Leakage inductance is kept low at 0.168μH to maximize signal integrity. It has an isolation voltage rating of 2500Vrms, which safeguards sensitive electronics from voltage spikes and interference.

This pulse transformer is RoHS compliant, meeting environmental and safety standards. Its lightweight design of about 1 gram makes it ideal for low power signal applications up to 200mA. The 782485 series ensures compatibility with industry-standard pinouts and models such as the AMD2452E RS485/232 isolation transformer.

Industries such as communications, control systems, and instrumentation benefit from this transformer’s robust electrical characteristics and compact form factor. Available as a production pack in tubes, this pulse transformer facilitates efficient assembly manufacturing processes.
