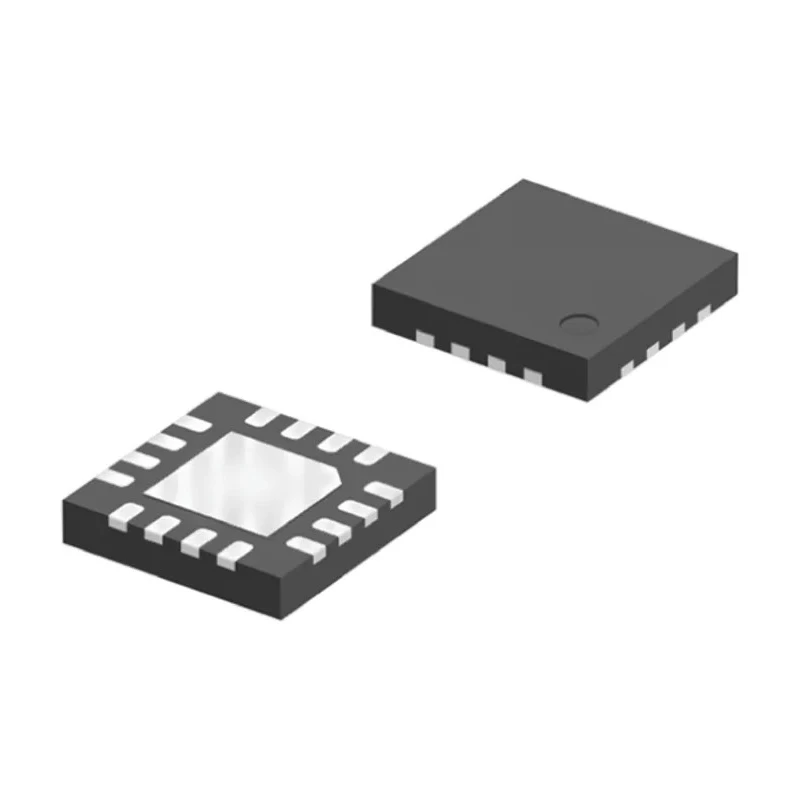

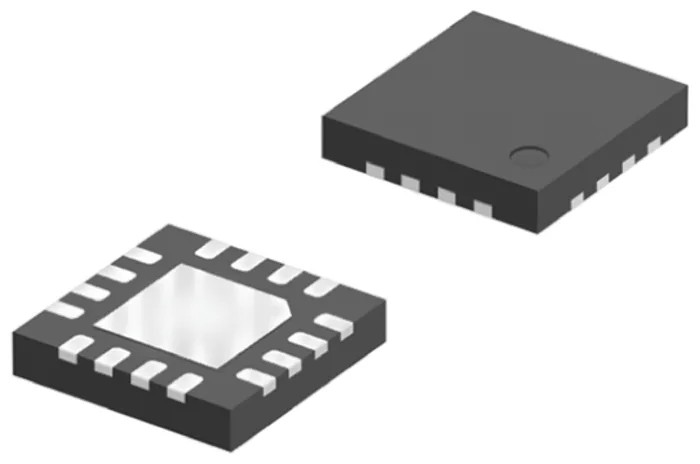

Microchip 8 bit PIC Microcontroller PIC16F1828-I/ML 32 MHz 7kB Flash 20-Pin QFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 880μm |
| Length | 4mm |
| Model | PIC16F1828-I/ML |
| Width | 4mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- The microcontroller features 8-bit PIC architecture suitable for embedded applications.
- Includes 512 bit RAM and 7kB program memory for efficient processing.
- Operates within a supply voltage range of 1.8V to 5.5V.
- Temperature operational range from -40°C to 85°C supports diverse environments.
- Equipped with 12-channel 10-bit ADCs and 2 analogue comparators for sensor interfacing.
- Integration of multiple timers and DACs enhances control capabilities.
- Surface mount QFN package measuring 4mm by 4mm and 880μm in height.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Microchip PIC16F1828-I/ML is an 8-bit PIC microcontroller that operates at a maximum clock frequency of 32 MHz, featuring 7kB FLASH program memory and a 20-Pin QFN surface mount package.
This microcontroller belongs to the PIC16F series, designed with an enhanced mid-range core architecture offering 16-level deep hardware stack and 49 instruction set architecture (RISC). It provides 7kB program memory, 512 bit RAM, and 256 bytes data EEPROM for versatile application development.
Operating voltage ranges from 1.8V to 5.5V with a broad temperature range from -40°C to 85°C making it suitable for industrial, automotive, and commercial embedded systems.
Key peripherals include 12-channel 10-bit ADCs for precise analog to digital conversion, 2 analogue comparators, 5 timers, DACs with 5-bit resolution, mTouch capacitive sensor module, multiple capture/compare/PWM modules, and communication interfaces such as MSSP SPI, I2C, and EUSART.
The compact 20-pin QFN package has dimensions of 4mm by 4mm with a height of 880μm, enabling efficient PCB space utilization and surface mount compatibility. This microcontroller fully complies with RoHS directives, ensuring environmentally friendly manufacturing.
The microcontroller features 8-bit PIC architecture suitable for embedded applications. Includes 512 bit RAM and 7kB program memory for efficient processing. Operates within a supply voltage range of 1.8V to 5.5V. Temperature operational range from -40°C to 85°C supports diverse environments.
Equipped with 12-channel 10-bit ADCs and 2 analogue comparators for sensor interfacing. Integration of multiple timers and DACs enhances control capabilities. Surface mount QFN package measuring 4mm by 4mm and 880μm in height.
Complies with RoHS standards ensuring environmental safety.
This microcontroller is ideal for industrial, automotive, and consumer electronics applications requiring compact, efficient, and versatile processing solutions. Explore more from Microchip in the Electronics & Electricals Semiconductor Microcontroller category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 7kB, which is of FLASH type.
This microcontroller operates within a supply voltage range of 1.8V to 5.5V.
The QFN package measures 4mm by 4mm and has a height of 880μm.
It is equipped with 12 channels of 10-bit ADCs for analog to digital conversion.
The operational temperature range is from -40°C to 85°C, suitable for diverse environments.
This model includes 5 timers for enhanced control capabilities.
It utilizes an 8-bit PIC architecture, designed for embedded applications.
Yes, it complies with RoHS standards, ensuring environmental safety.
The microcontroller has a RAM size of 512 bits.
This microcontroller includes 2 analogue comparators for sensor interfacing.
It supports communication interfaces such as MSSP SPI, I2C, and EUSART.
