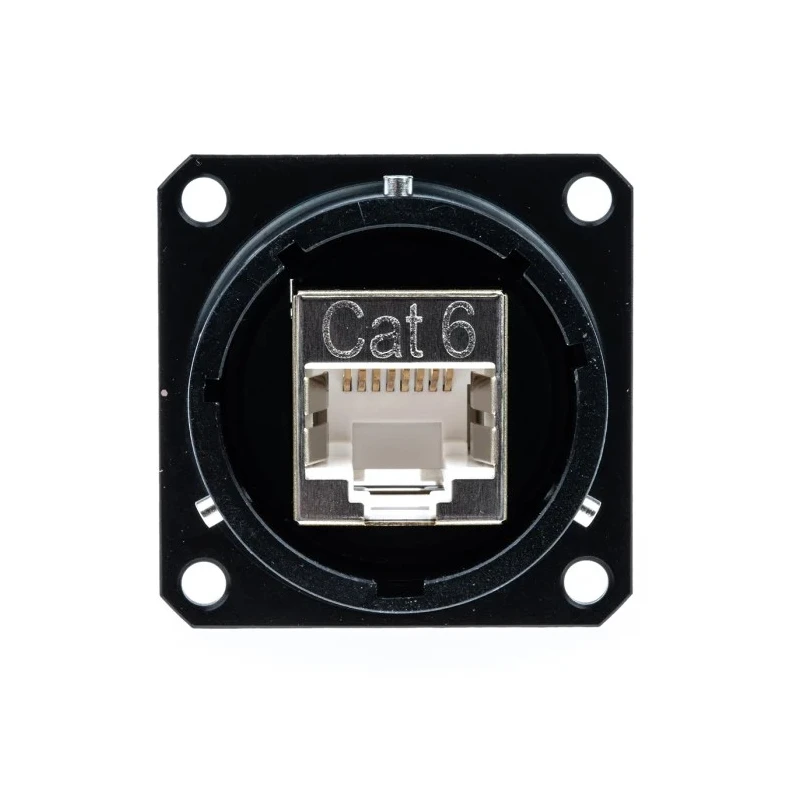

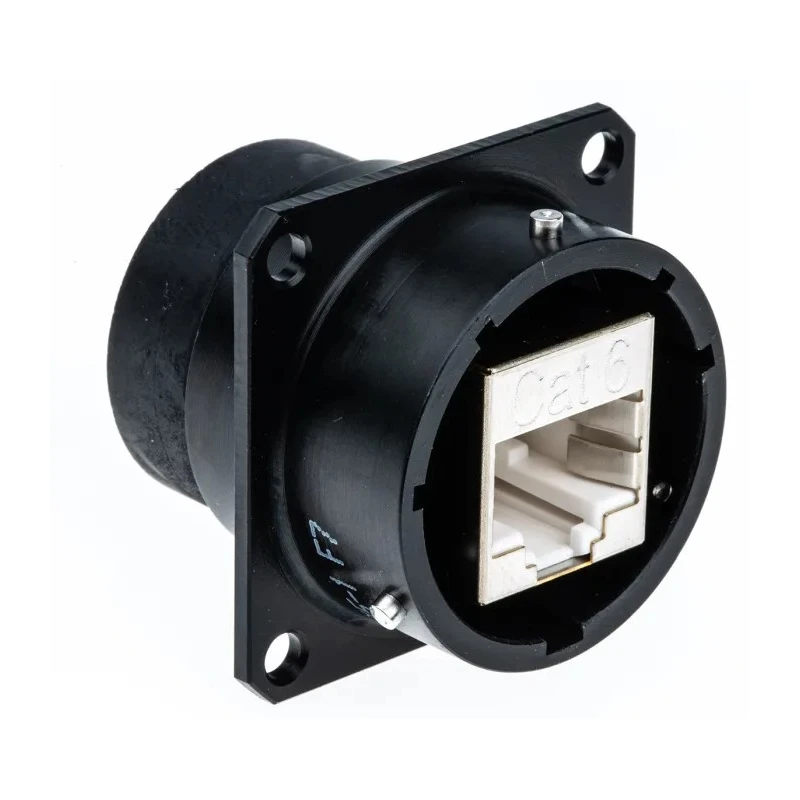

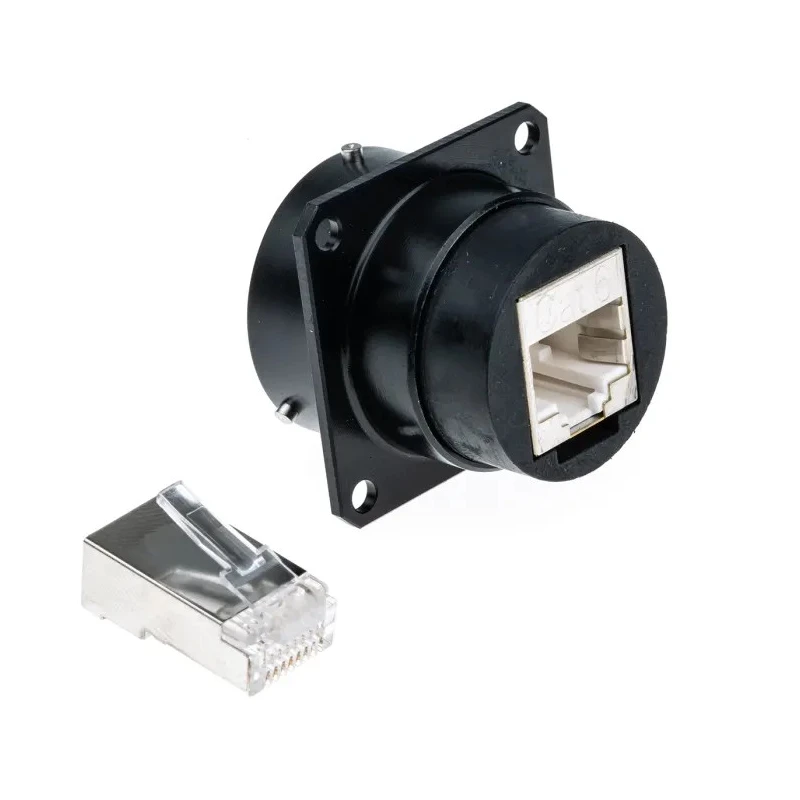

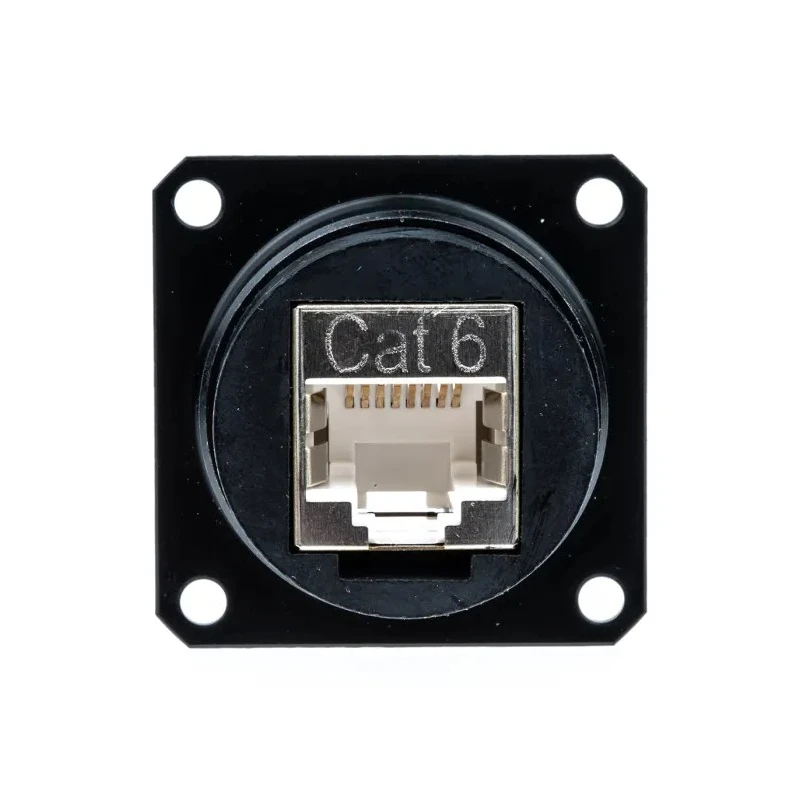

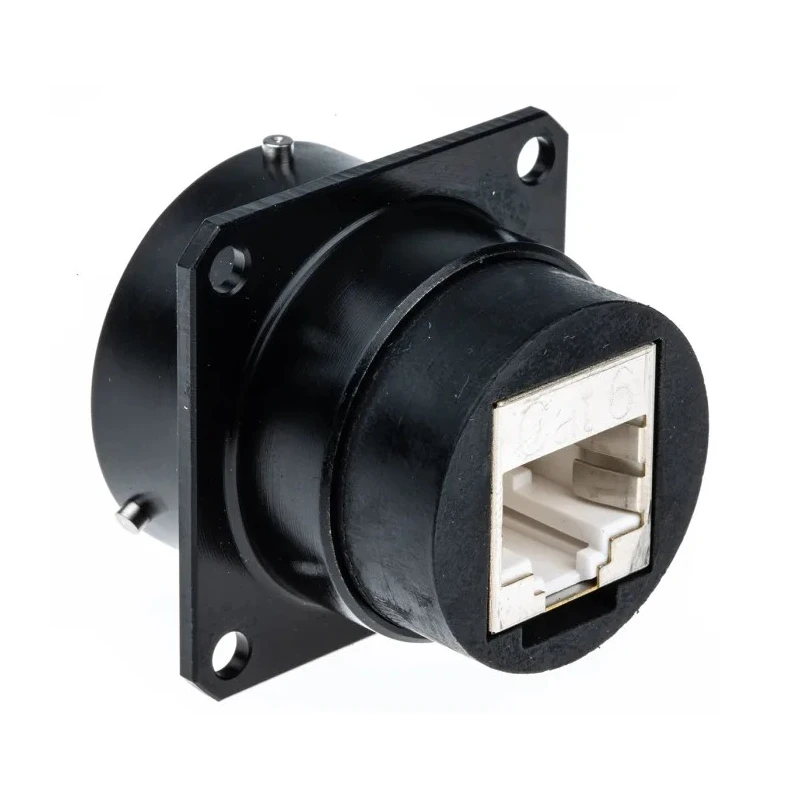

Glenair IPT Series RJ45 Connector Female Panel Mount Cat6 Straight 1 Port
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Glenair |
| Orientation | Straight |
| Length | 33.3mm |
| Model | RJ45 |
| Depth | 30.4mm |
| IP Rating | IP67 |
| Connector Type | Receptacle |
| Width | 33.3mm |
| Mount Type | Panel Mount |
| Series | IPT |
| Number Of Ports | 1 |
| Maximum Operating Temperature | 68°C |
| Minimum Operating Temperature | -40°C |
| Connector Gender | Female |
| LAN Category | Cat6 |
| Ethernet Connector Type | RJ45 |
Key Features
- IP67 rated for high resistance to harsh environmental conditions.
- Supports Cat6 LAN category suitable for 10BaseT, 100BaseTx, and 1000BaseT connections.
- Constructed with rugged waterproof reverse bayonet panel mount housing.
- Operating temperature range from -40°C to 68°C for reliable industrial use.
- Features a female receptacle connector with straight orientation for easy panel mounting.
- Housing with black zinc cobalt plating ensures durability and corrosion resistance.
- Compact dimensions with 33.3mm length, 33.3mm width, and 30.4mm depth.
- Maximum contact resistance of 20mΩ and dielectric withstand voltage of 1000 V.
Product Description
Glenair IPT0218-RJ45-1F7 RJ45 Connector is a female panel mount connector designed for Ethernet applications requiring reliable and rugged connections in hostile environments. It supports Cat6 LAN category protocols including 10BaseT, 100BaseTx, and 1000BaseT, making it suitable for high-speed network connections in industrial and commercial settings.
This connector series features a waterproof reverse bayonet panel mount design with IP67 rating when mated, which provides exceptional protection against dust, water, and environmental contaminants. The connector is equipped with resilient nitrile inserts and finished with black zinc cobalt plating to enhance durability under harsh conditions.
The unit operates reliably within a temperature range from -40°C to 68°C, catering to demanding industrial temperature requirements. Electrical specifications include a maximum current rating of 1.5A at 20°C, a maximum contact resistance of 20mΩ, and dielectric withstand voltage of 1000 V, ensuring secure and stable signal transmission.

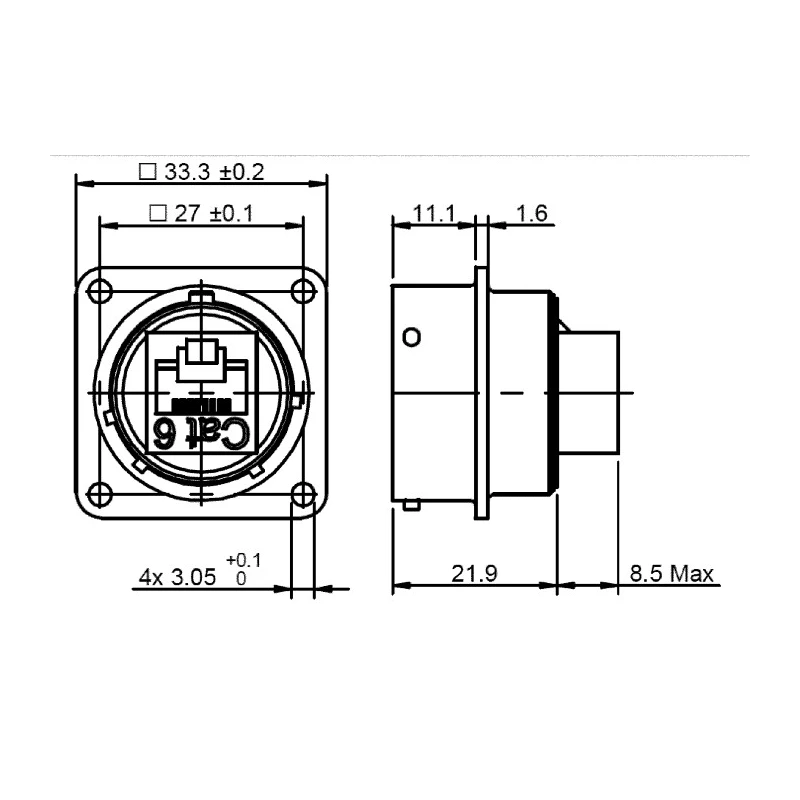

The compact dimensions (33.3mm length, 33.3mm width, and 30.4mm depth) allow easy integration into panel designs, while the straight female receptacle orientation simplifies installation. Manufactured in Italy under the Glenair IPT series, this connector is suitable for industrial, manufacturing, telecommunications, and water treatment applications requiring sealed and robust Ethernet connections.
IP67 rated waterproof reverse bayonet panel mount design for durable Ethernet connectivity. Supports Cat6 LAN category with compatibility for 10BaseT, 100BaseTx, and 1000BaseT. Enhanced environmental protection with nitrile inserts and robust black zinc cobalt plating.
Wide operating temperature range from -40°C to 68°C for industrial reliability. Compact form factor with precise dimensions for straightforward panel integration. Electrical ratings ensuring safe current and voltage handling with low contact resistance.
Ideal for industrial, commercial, and outdoor Ethernet communications installations. Explore the full range of Ethernet Connectors from Glenair on EnvMart for robust, reliable connectivity solutions.
