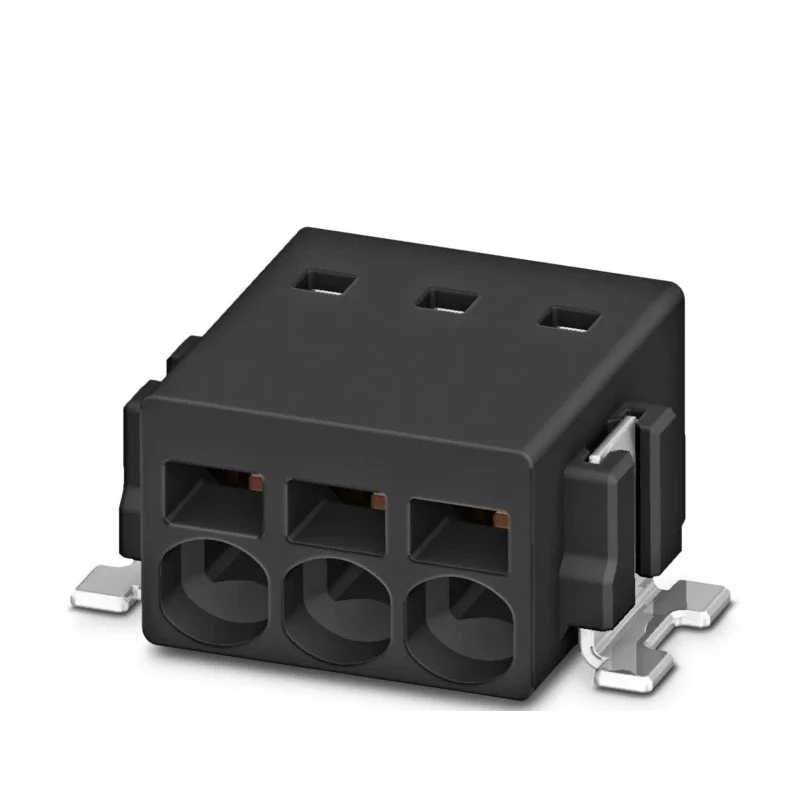

Phoenix Contact PCB Terminal Block PTSM 0.5/3-2.5-H SMD R44 Series Horizontal, 3 Contacts, 2.5 mm Pitch, 160V, 6A 1771033

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact PCB Terminal Block PTSM 0.5/3-2.5-H SMD R44 Series Horizontal, 3 Contacts, 2.5 mm Pitch, 160V, 6A 1771033

Name: Phoenix Contact PCB Terminal Block PTSM 0.5/3-2.5-H SMD R44 Series Horizontal, 3 Contacts, 2.5 mm Pitch, 160V, 6A 1771033
Brand: PHOENIX CONTACT
SKU: 218883
Price: 1.89 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	160V
Brand	Phoenix Contact
Orientation	Horizontal
Current	6A
Model	1771033
Housing Material	Liquid Crystal Polymer
Series	PTSM 0.5/3-2.5-H SMD R44
Number of Rows	1
Pitch	2.5mm
Number of Contacts	3

Key Features

This terminal block supports a maximum current rating of 6A for 0.5 mm² conductor cross-section.
The housing is made of durable Liquid Crystal Polymer ensuring stability and reliability.
It features a spring cage connection for easy push-in wiring without tools.
The compact design allows integration into SMT soldering processes.
Additional solder arms reduce mechanical stress on solder joints.
The white housing maintains color stability during welding and operation.
The block comprises a single row configuration with 3 contact points.
The pitch between contacts is 2.5 mm suitable for PCB integration.

Product Description

Phoenix Contact 1771033 PCB Terminal Block PTSM 0.5/3-2.5-H is a horizontal SMT terminal block designed for surface mounting on PCBs with a 2.5 mm pitch spacing and 3 contact points.

The terminal block features a spring cage technology enabling secure and tool-free push-in wire connections for solid or stranded conductors up to 0.5 mm² cross-sectional area. This design simplifies installation and maintenance in electronic assemblies.

The housing material is Liquid Crystal Polymer, offering high performance in thermal stability and mechanical robustness. The white color ensures color consistency during soldering and operational use.

Rated for a current capacity of 6A and a voltage of 160V, the terminal block supports reliable electronic circuit connections, particularly in industrial and electronic equipment applications requiring low-profile, compact PCB connectors.

The horizontal orientation and single row configuration facilitate efficient PCB layout design while the additional solder arms increase mechanical strain relief, enhancing solder joint durability during thermal cycling.

This terminal block supports a current of 6A for 0.5 mm² conductors providing reliable power transmission. Its spring cage connection allows easy, stable wiring without tools. The use of Liquid Crystal Polymer ensures a rugged, flame-retardant housing (UL 94 V-0).

The 2.5 mm pitch spacing matches standard PCB layouts for seamless integration. The white housing color maintains stability during solder processes and usage. The block includes 3 contacts in a single horizontal row configuration.

Additional solder arms provide mechanical strain relief for enhanced durability. Designed specifically for SMT soldering processes in automated PCB assembly.

This Phoenix Contact PCB Terminal Block model 1771033 is ideal for use in industrial electronics, power connectors assemblies, automation equipment, and other electronic circuit applications where durable, compact, and reliable PCB connectors are required.
