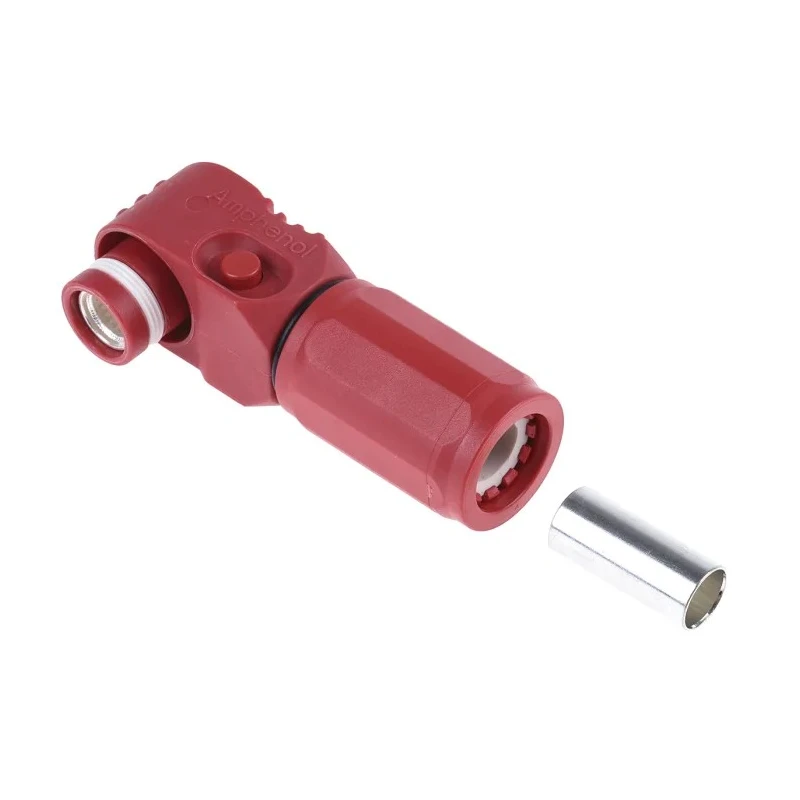

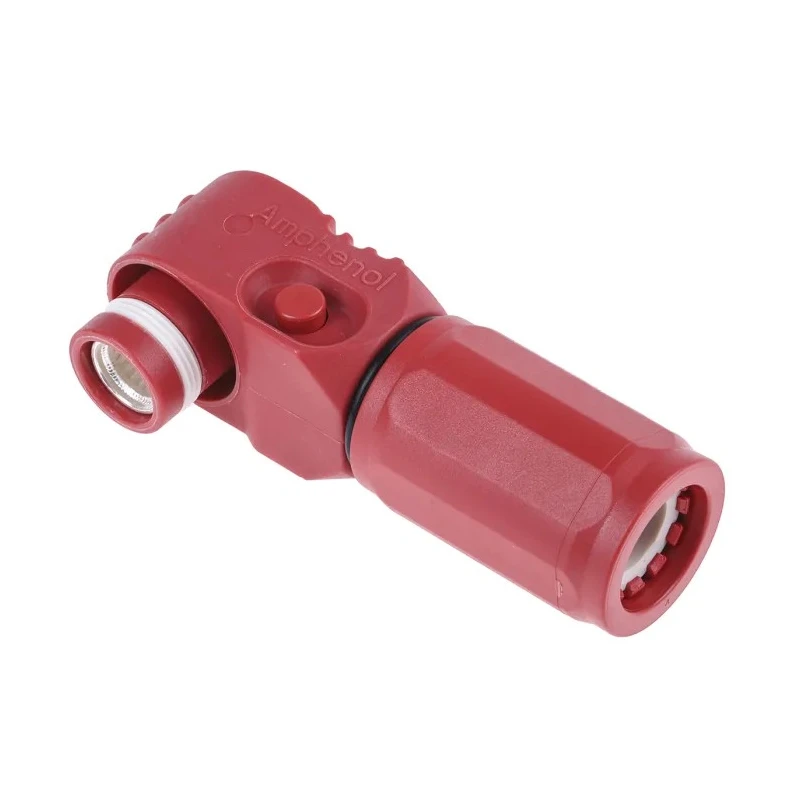

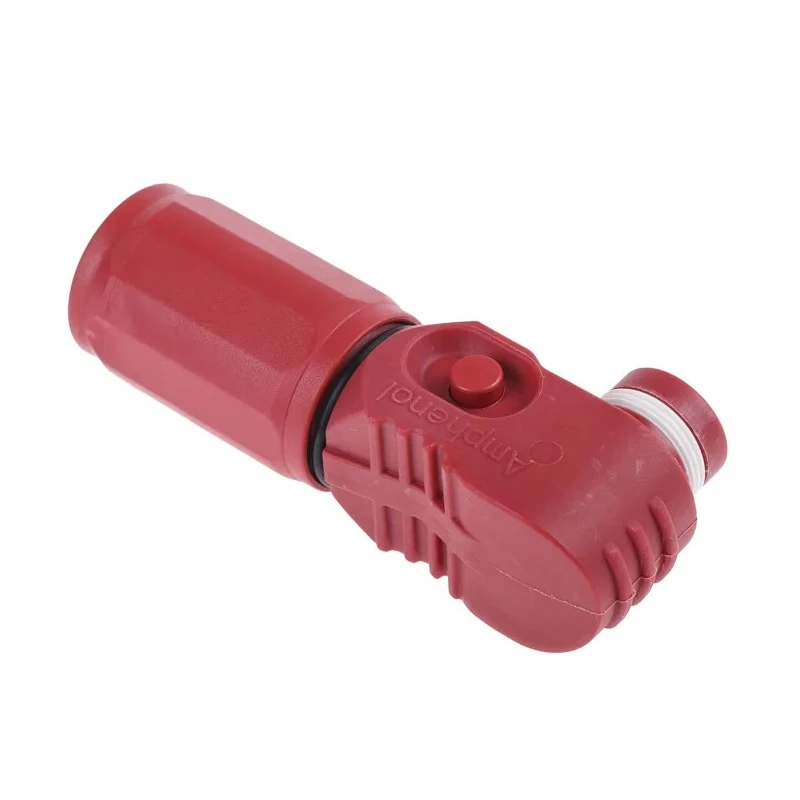

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 150A, 1000V, 35mm², Right Angle SLPPB35BSR / C10-730188-230
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Red |
| Orientation | Right Angle |
| Current | 150A |
| Height | 75.6mm |
| Model | SLPPB35BSR / C10-730188-230 |
| Depth | 29mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 21.6mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 35mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Flammability Rating | UL 94-V0 |
| Better World Claim | Renewable Energy Solution |
Key Features
- High-current EV connector designed for automotive and industrial sectors.
- Rated for 150A and 1000V, supporting demanding power applications.
- RADSOK contact technology delivers secure, high-strength, and low-resistance connections.
- Quick lock, press-to-release mechanism ensures fast and reliable installation.
- IP67 protection and thermoplastic housing offer durability for harsh environments.
- 8mm pin diameter and crimp termination accommodate 35mm² wires.
- UL94-V0 flammability rating and touch proof design enhance safety.
- Right angle orientation allows efficient cable routing and mounting.
Product Description
The Amphenol Industrial SLPPB35BSR / C10-730188-230 is a high-performance SURLOK PLUS RADSOK EV Connector, designed for use in electric vehicle, rail, energy storage, and demanding industrial environments. This male connector supports a maximum rated current of 150A and operates at up to 1000V, making it ideal for applications requiring efficient power transmission and robust safety standards.
The connector incorporates RADSOK contact technology, which enables a high tensile strength and a highly conductive surface area, ensuring low voltage drop and stable operation. Its compact plug form features a quick mating compression lug, facilitating fast installation and reliable locking with a press-to-release mechanism. The plug rotates 360°, allowing flexibility in cable management, and its right-angle orientation optimizes space in confined settings.
Constructed with a durable thermoplastic housing and copper alloy contacts, the SURLOK PLUS plug achieves IP67 protection against dust and water ingress, making it suitable for harsh and outdoor environments. The plug includes touch proof features, spring locking for secure engagement, and is keyed to prevent mismating. With UL 94-V0 flammability rating, the connector is compliant with relevant safety standards essential for automotive and mass transit industries.
The connector is designed for 35mm² wire size, features an 8mm pin diameter, and crimp termination for strong, reliable connectivity. It's compatible with SurLok 1-position receptacles and suited for battery management systems, heavy equipment, process control, rail mass transit, and medical devices requiring high-current EV connectors.
Applications for the SURLOK PLUS range extend from electric vehicles (EV/HEV) and rail mass transit to energy storage, process control, and advanced battery management systems. Its robust and environmentally sealed design ensures long-term reliability in mission-critical power distribution scenarios.
Explore more EV connectors and browse Amphenol Industrial's SURLOK PLUS range in Automotive Electrical Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 150A, making it suitable for high-power applications.
It operates at a maximum voltage of 1000V, which is essential for demanding power applications.
This model features crimp termination, providing a strong and reliable connection for the wires.
The connector has an IP67 rating, ensuring protection against dust and water ingress, suitable for harsh environments.
It is designed to accommodate 35mm² wire size, which is ideal for high-current applications.
The housing is made of thermoplastic, and the contacts are composed of copper alloy, providing durability and conductivity.
The pin diameter is 8mm, which is compatible with the specified wire size and termination type.
It can operate within a temperature range of -40°C to 125°C, making it suitable for various environmental conditions.
This model supports cable mounting, allowing for flexible installation options in different applications.
It is designed for use with SurLok 1-position receptacles, ensuring secure connectivity.
The connector complies with UL 94-V0 flammability rating, enhancing its safety for automotive and industrial applications.
The connector features a right-angle orientation, which allows for efficient cable routing and space optimization in confined settings.
