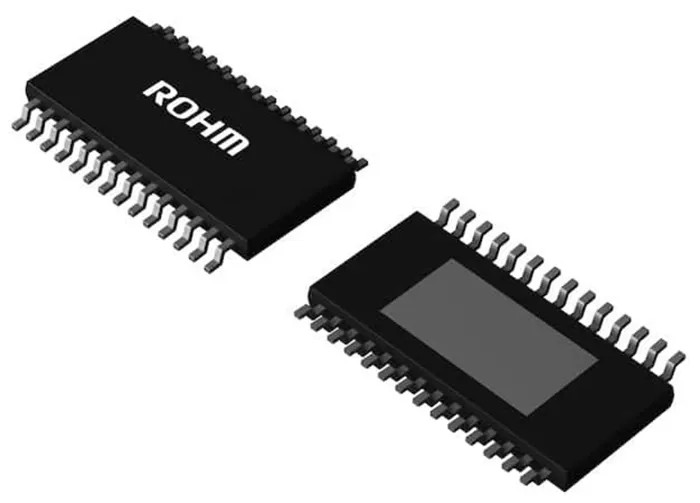

ROHM Brushed DC Motor Driver IC 28-Pin HTSSOP-B 1A Output Current BD16938AEFV-CE2

Free Delivery in India | Lowest Global Shipping Charges

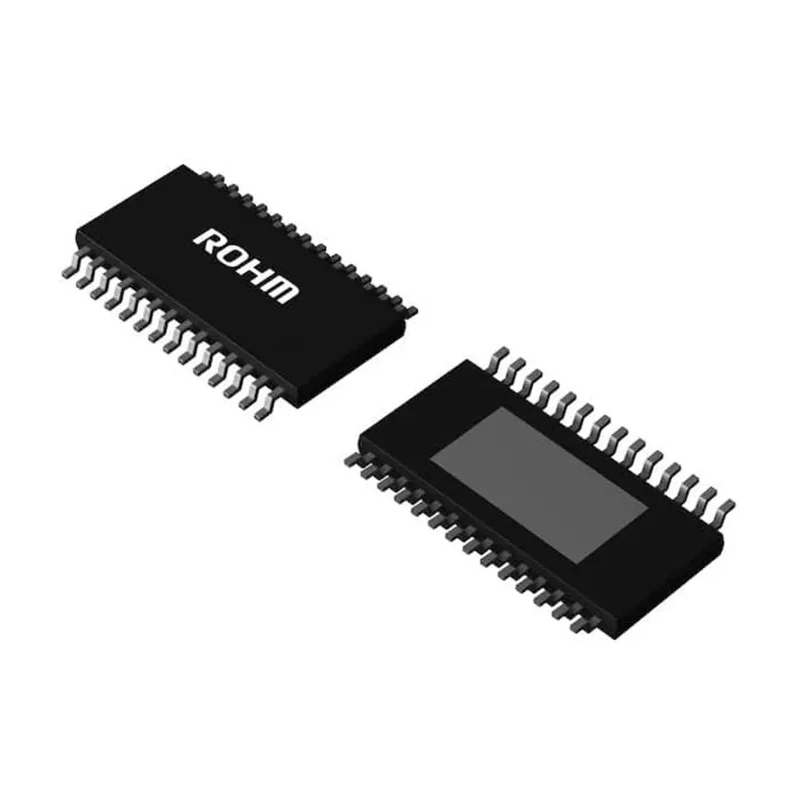

ROHM Brushed DC Motor Driver IC 28-Pin HTSSOP-B 1A Output Current BD16938AEFV-CE2

Name: ROHM Brushed DC Motor Driver IC 28-Pin HTSSOP-B 1A Output Current BD16938AEFV-CE2
Brand: ROHM
SKU: 218753
Price: 6.84 USD
Availability: InStock



Category Motor Driver IC Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1mm
Length	10.05mm
Model	BD16938AEFV-CE2
Width	4.5mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	BD16938AEF
Configuration	SD Card
Output Current	1A
Maximum Operating Temperature	125°C
Package Type	HTSSOP-B
Minimum Operating Temperature	-40°C
Pin Count	28
Automotive Standard	AEC-Q100
Maximum Supply Voltage	40V
Minimum Supply Voltage	6.3V

Key Features

The IC supports driving brushed DC motors with up to 1A output current.
Operates within a voltage range of 6.3V to 40V with low standby current.
Includes built-in protections such as over current, over voltage, and thermal shutdown.
Meets AEC-Q100 automotive standards for high reliability and durability.
Compact HTSSOP-B 28-pin surface mount package with 10.05 x 4.5 x 1 mm dimensions.
Controlled via 16-bit SPI interface for flexible motor output modes.
Wide operating temperature range from -40°C to 125°C.
Ideal for automotive, industrial, and embedded brushed DC motor applications.

Product Description

ROHM BD16938AEFV-CE2 Brushed DC Motor Driver IC is a high-performance 8-channel half-bridge driver designed specifically for compact brushed DC motors. Packaged in a 28-pin HTSSOP-B surface mount package, it offers a maximum output current of 1A and supports motor supply voltages from 6.3V up to 40V. The device is engineered to meet stringent automotive standards including AEC-Q100, making it suitable for automotive and industrial environments.

The IC features multiple built-in protections such as over current protection at the supply stage, protection diodes against reverse output voltage, and over voltage detection modes. It also includes thermal shutdown and thermal warning alerts to safeguard performance and device reliability under demanding conditions. The operating temperature range of -40°C to 125°C further certifies its robustness in harsh surroundings.

Motor control is facilitated by a 16-bit serial peripheral interface from the MCU, allowing precise management of each half-bridge output through three control modes. Compact device dimensions (10.05mm length, 4.5mm width, 1mm height) make it ideal for space-constrained PCB applications.

This motor driver IC is widely applicable in automotive motor drives, industrial machinery, and embedded systems where efficient and reliable DC motor control is required. The low standby current and energy-efficient design contribute to reduced power consumption, promoting longer system life and better thermal management.

The IC is capable of direct DC brush motor drive with advanced protection features. Designed to meet automotive system quality and performance requirements. Interfaces seamlessly with MCU via SPI for flexible motor control schemes.

Compact HTSSOP-B package supports surface mounting and efficient PCB layout. Ideal component for industrial, automotive, and embedded motor control circuits. Explore more Motor Driver ICs for various applications and discover industrial-grade semiconductor components at EnvMart.
