TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 20 Way 2 Row Straight 1-174960-1

Free Delivery in India | Lowest Global Shipping Charges

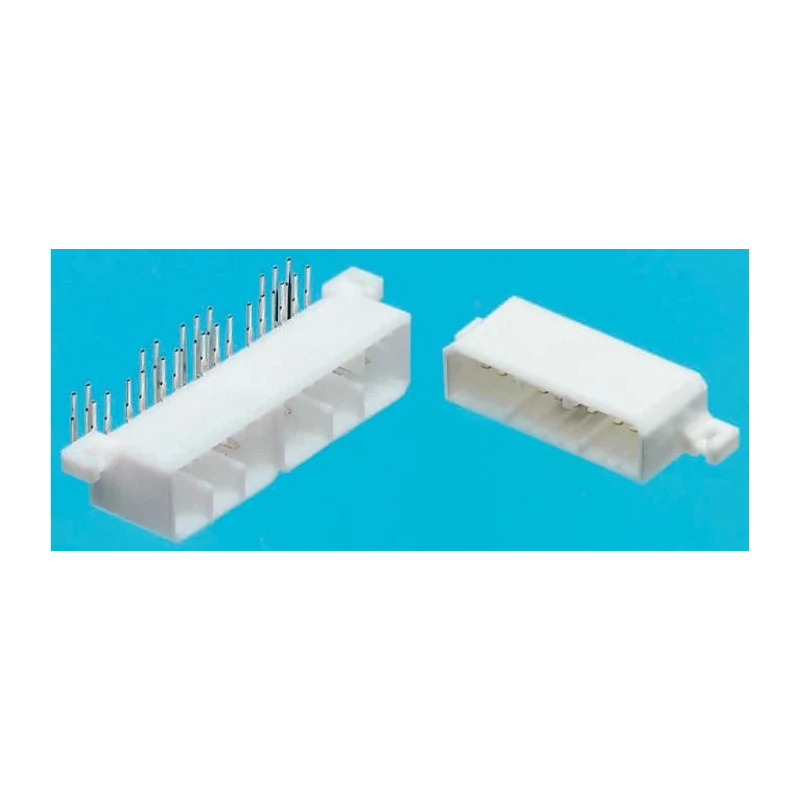

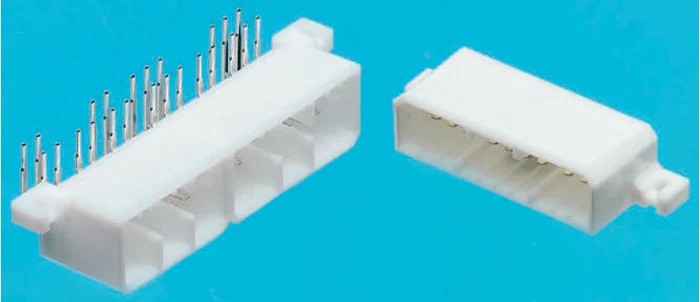

TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 20 Way 2 Row Straight 1-174960-1

Name: TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 20 Way 2 Row Straight 1-174960-1
Brand: TE Connectivity
SKU: 218718
Price: 9.84 USD
Availability: InStock



Category Connector Housing Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Straight
Length	46.7mm
Width	15.8mm
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Series	MULTILOCK 070
Interfaces	lance design
Number of Rows	2
Pitch	3.5mm
Number of Contacts	20
Connector Gender	Female

Key Features

The connector housing is designed for through-hole mounting ensuring secure PCB attachment.
It features a durable polybutylene terephthalate housing material for robust mechanical protection.
Compact design with a high-density 3.5 mm pitch suitable for space-saving applications.
Integral double locking system guarantees reliable contact retention and prevents partial insertions.
Housing lance design protects contacts against damage caused by rocking action during mating and unmating.
Suitable for high-reliability automotive powertrain, safety, security, and body systems.
Connector offers 20 contacts arranged in 2 rows for versatile wiring requirements.
Designed specifically for female crimp contacts using MULTILOCK 070 series standard.

Product Description

TE Connectivity 1-174960-1 MULTILOCK 070 female connector housing is a high-density, durable connector designed for automotive wire-to-wire and wire-to-board applications. Featuring a 3.5 mm pitch, 20 contacts arranged in 2 rows, and a straight orientation, it is manufactured with polybutylene terephthalate housing material to ensure robust mechanical protection.

This connector housing supports through-hole mounting and incorporates a housing lance design to protect contacts from damage caused by rocking motion during mating cycles. The integral double locking mechanism provides secure contact retention and prevents partial insertions, increasing reliability in demanding electrical systems.

Its compact dimensions of 46.7 mm length and 15.8 mm width allow for efficient space utilization in powertrain, safety, security, convenience, driver information, and body/chassis automotive applications. The MULTILOCK 070 series supports miniaturized connector solutions with crude but secure lanceless contacts, reducing deformation risks.

The series includes plug and receptacle housings and PCB headers, facilitating versatile wire-to-wire and wire-to-board I/O solutions. Female crimp contacts compatible with this housing must be ordered separately. This connector does not include specific certifications or compliances.

The connector is compact and durable with a high-density 3.5 mm pitch suitable for automotive environments. Housing design protects contacts with lance protection against KOJIRI action during mating/unmating. Integral double locking system ensures secure retention and prevents partial insertion.

Designed for use in automotive powertrain, safety, driver information, and convenience systems. Through-hole mount type enables reliable PCB attachment in densely packed assemblies.

This TE Connectivity MULTILOCK 070 female connector housing enables industrial, automotive, and electronic manufacturers to design robust connector solutions with secure, high-density contact arrangements. The connector is suitable for professional automotive manufacturing, assembly, and repair sectors.
