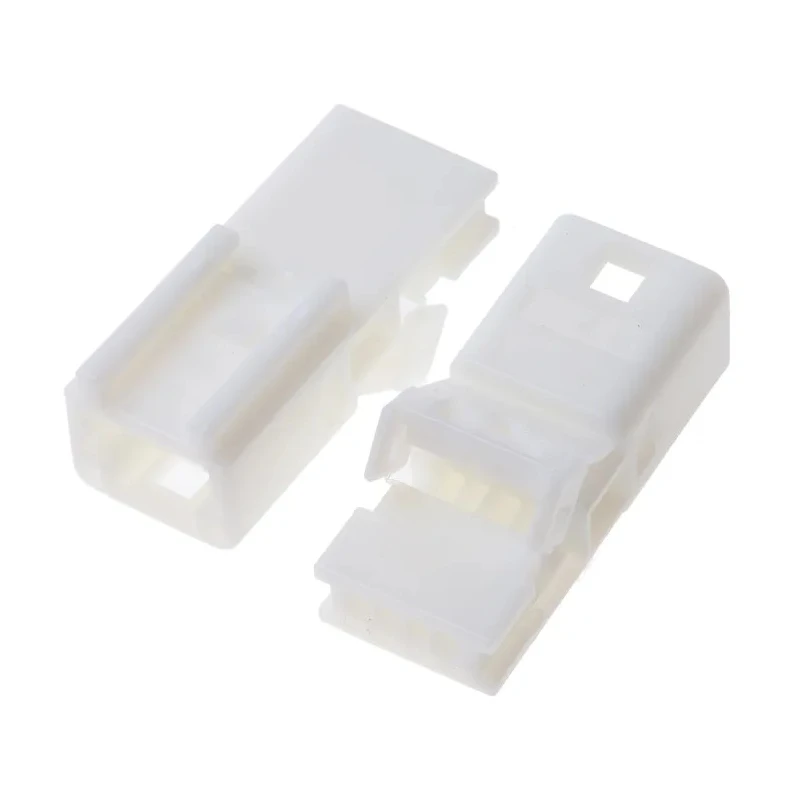

TE Connectivity TH 025 Automotive Connector Female Natural Panel Mount 4 Way Crimp Termination 1612035-1
Specifications
| Brand | TE Connectivity |
|---|---|
| Colour | Natural |
| Height | 15.7mm |
| Depth | 33.9mm |
| Width | 14mm |
| Gender | Female |
| Mount Type | Panel Mount |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | TH 025 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 4 |
Key Features
- The connector features a compact design with a high density 2.2 mm pitch.
- It includes retainer blocks for terminal position assurance ensuring secure contacts.
- The polarized housing prevents mismating during installation.
- Constructed from polybutylene terephthalate housing and brass contacts with tin plating.
- Operates reliably within a temperature range from -30°C to 105°C.
- Suitable for automotive safety, multimedia stations, and airbag ECU applications.
- Panel mount type with natural colored housing and female gender configuration.
- Compliant with EU ELV and EU RoHS standards.
Product Description
TE Connectivity 1612035-1 automotive connector female is engineered for high density electrical connections in demanding automotive environments. This TH 025 Series connector features a natural color polybutylene terephthalate housing designed for panel mount installation and configured for 4 female contacts terminated via crimp.
The compact 2.2 mm pitch design allows tight packing in electronic control units, improving space efficiency in automotive assemblies. The connector includes retainer blocks that ensure terminals remain securely positioned during operation, increasing reliability and reducing maintenance risks.
The housing is polarized to prevent mismating, protecting circuit integrity and easing assembly processes. The brass contacts feature tin plating to provide corrosion resistance and stable electrical performance. Designed to operate from -30°C to 105°C, it suits a wide range of automotive applications including safety and security systems, driver convenience modules, multimedia stations, display screens, and airbag ECUs.
Technical details include a single row of 4 contacts with panel mount capability. Dimensions are 15.7 mm height, 14 mm width, and 33.9 mm depth. The product is certified compliant with EU ELV and RoHS environmental standards.
The connector’s retainer blocks provide terminal position assurance. Polarized housing prevents incorrect mating. Color coding via the natural housing color simplifies identification. Materials ensure durability and corrosion resistance suitable for automotive use.
Temperature rating accommodates automotive operating conditions. Compact design fits advanced electronic control systems. Suitable for wire to wire and ECU applications in automotive systems.
This connector is ideal for industrial automotive uses within manufacturing, vehicle assembly, repair, and maintenance sectors. TE Connectivity’s TH 025 Series products offer reliable performance to meet stringent automotive standards. Explore more Automotive Connectors and related products on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 105°C.
The minimum operating temperature is -30°C.
This automotive connector features 4 female contacts.
The dimensions of this connector are 15.7 mm in height, 14 mm in width, and 33.9 mm in depth.
The housing is constructed from polybutylene terephthalate.
This model utilizes crimp termination for its contacts.
Yes, it is compliant with EU ELV and EU RoHS standards.
The connector has a female gender configuration.
This connector is designed for panel mount installation.
The contacts are made of brass and feature tin plating for corrosion resistance.
The polarized housing prevents mismating during installation, ensuring correct assembly and protecting circuit integrity.
This connector is suitable for automotive applications including safety systems, multimedia stations, and airbag ECUs.
