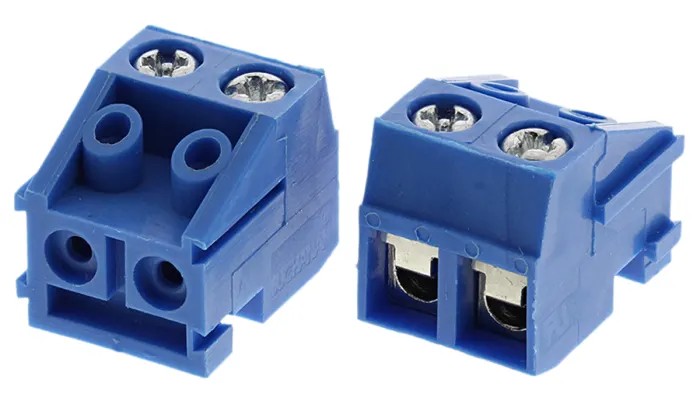

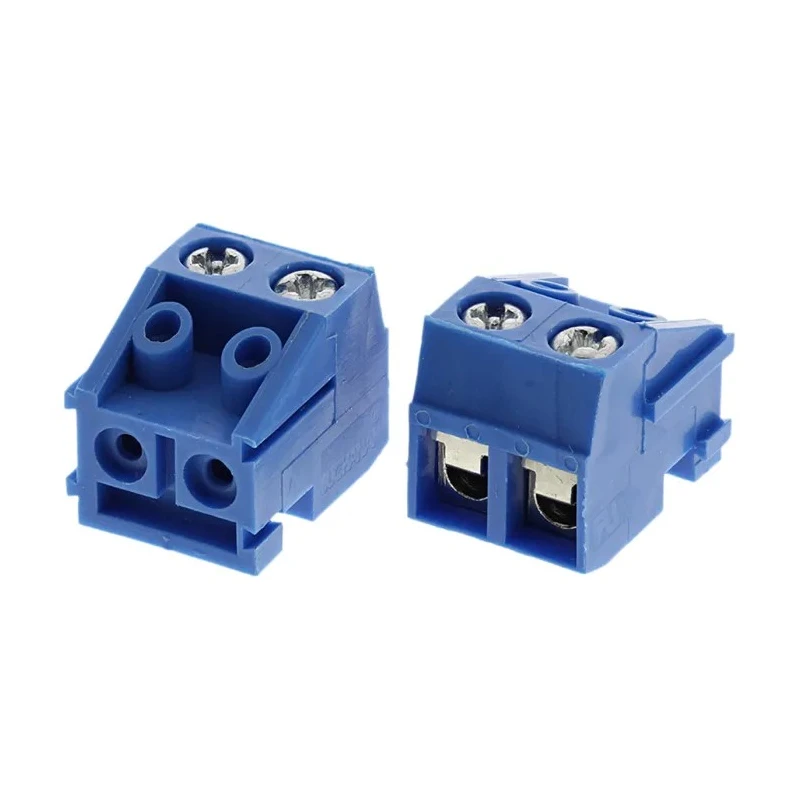

TE Connectivity Buchanan Series Blue 2-Contact 5 mm Pitch 1 Row PCB Terminal Block 1776263-2

TE Connectivity 1776263-2 Buchanan Series PCB Terminal Block is an industrial-grade pluggable terminal block designed for reliable PCB connections in electronic and electrical applications. Featuring a blue polyester and nylon housing, the block supports 2 contacts arranged in a single row with a 5 mm pitch. The connector is engineered with right-angle orientation for efficient PCB mounting and wire management.

This terminal block accepts wire sizes ranging from 24 AWG to 16 AWG (0.2 mm² to 1.4 mm²) and supports a maximum current of 10 amps at 300V AC, making it suitable for medium power connections in control panels, industrial equipment, and power distribution systems.

The product features screw terminals with wire guards, which protect wires from being damaged by the screw pressure, enhancing connection reliability and safety. It is compatible with pin headers of 1.3 mm pin diameter, ensuring easy integration into various PCB designs.

The compact design has a length of 10 mm, width of 11 mm, and a depth of 13.6 mm, optimized for space-saving layouts. The TE Connectivity Buchanan Series meets industrial requirements for durability and safety, with its UL 94V-0 standard flame retardant rating.

This PCB terminal block is widely used in industrial, manufacturing, HVAC, and electronic device assembly applications where secure and maintainable wiring connections are critical.

The terminal block is made of durable polyester and nylon housing materials. It has a current rating of 10A and voltage rating of 300V AC. Wire size range covers 16 AWG to 24 AWG with screw terminal attachments. Right-angle orientation supports efficient PCB layouts.

Compact dimensions support tight mounting spaces in assemblies. Designed to interface with 1.3 mm diameter pin headers on PCBs. Explore EnvMart's wide range of PCB Terminal Blocks and other electronic connectors for diverse industrial and commercial projects.
