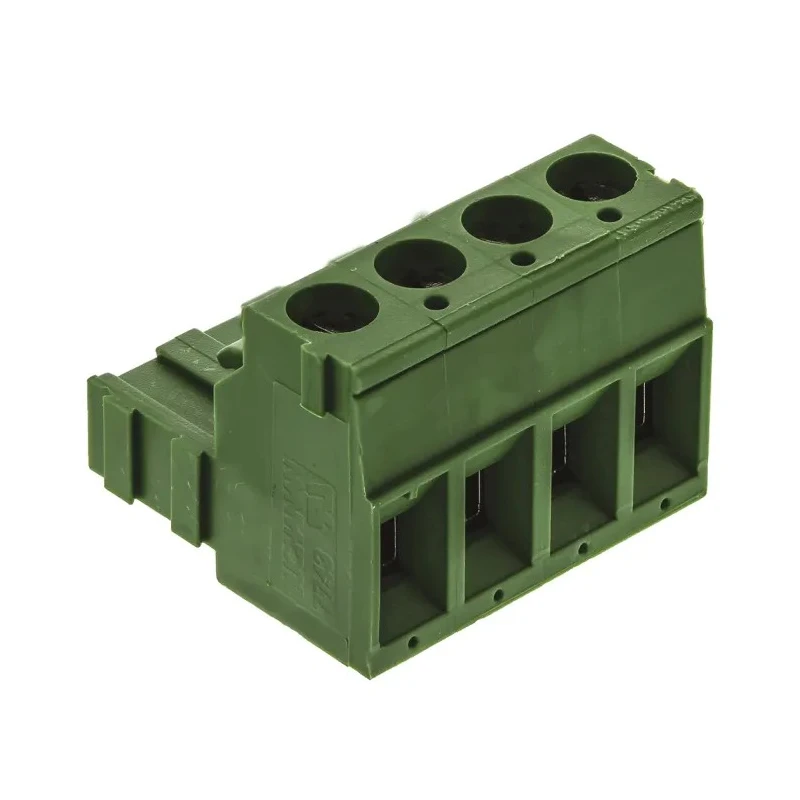

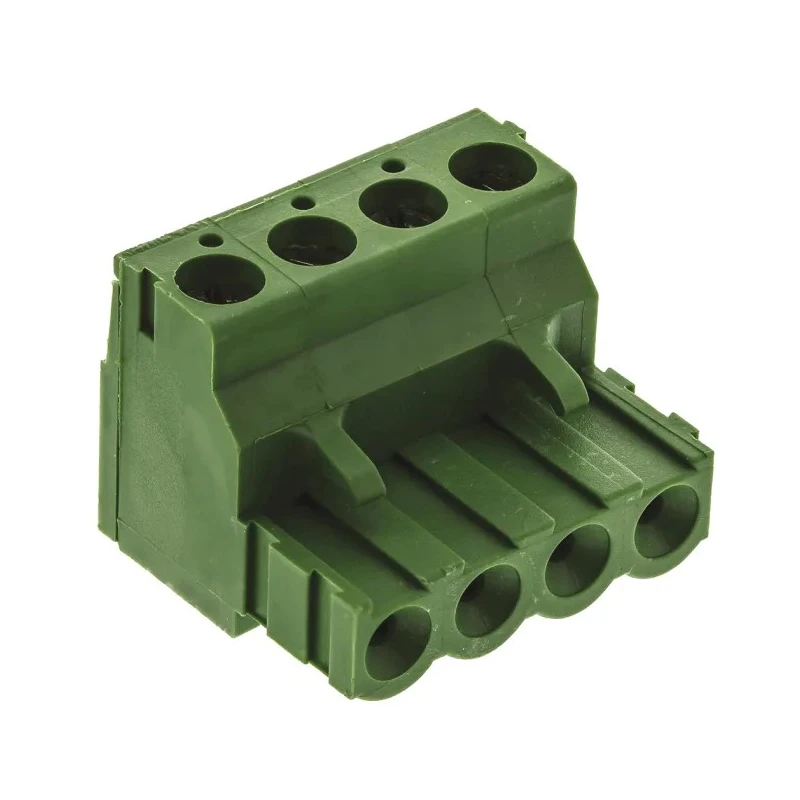

TE Connectivity Buchanan Series 4-Contact 5.08 mm Pitch 1 Row Pluggable Terminal Block 282807-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 20.32mm |
| Model | 282807-4 |
| Depth | 15.5mm |
| Width | 18.4mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | EU RoHS, EU REACH, CHINA RoHS, EU ELV |
| Number of Contacts | 4 |
| Connector Gender | Male |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Constructed with green polyamide housing for durability.
- Offers right angle orientation for space saving designs.
- Compatible with wire sizes ranging from 12 AWG to 30 AWG.
- Features retention latches and polarization key slots for secure and correct mating.
- Mates with typical header part number 710-0110 for versatile applications.
- Complies with EU RoHS, EU REACH, CHINA RoHS, and EU ELV standards.
Product Description
TE Connectivity 282807-4 Pluggable Terminal Block is a 4-contact, 5.08 mm pitch, single row connector designed for robust electrical connections in electronic assemblies. Manufactured with green polyamide 6.6 GF housing material, it ensures mechanical strength and electrical insulation.
The terminal block accommodates wire sizes from 12 AWG to 30 AWG and supports up to 15A current at 300V AC, suitable for moderate power electronics and industrial control applications.
This product features a right angle orientation with M3 screw clamp terminals for secure wire retention. Its design includes polarization key slots, retention latches, and an interlocking feature to prevent incorrect mating and to enhance assembly stability.
It mates with the TE Connectivity header stock number 710-0110, allowing versatile system integration in PCB terminal applications. Dimensions are compact with an 18.4mm width, 20.32mm length, and 15.5mm depth, enabling efficient PCB space usage in industrial, electronic, and manufacturing environments.
Durable green polyamide housing offers enhanced mechanical and chemical resistance. Suitable for right angle PCB mounting with space optimization. Supports wire cross-sections from 12 AWG to 30 AWG, accommodating varied wiring needs.
Compliance with multiple RoHS and ELV environmental standards ensures eco-friendly usage. Retention latches and polarization keys improve connection reliability and safety. Interlocks allow stacking for scalable modular assembly configurations.
This terminal block is ideal for electronic components, power connectors, industrial machines, HVAC systems, and manufacturing applications. TE Connectivity products ensure quality and reliability across demanding use cases for professional and industrial implementations.
Explore the full range of TE Connectivity Pluggable Terminal Blocks and connectors on EnvMart for reliable industrial-grade electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 15A at 300V AC.
It accommodates wire sizes ranging from 12 AWG to 30 AWG.
The dimensions of this terminal block are 20.32mm in length, 18.4mm in width, and 15.5mm in depth.
The housing is constructed from green polyamide 6.6 GF, which provides mechanical strength and electrical insulation.
This model supports a right angle orientation, allowing for space-saving designs in PCB applications.
It complies with EU RoHS, EU REACH, CHINA RoHS, and EU ELV standards.
It includes retention latches, polarization key slots, and an interlocking feature to prevent incorrect mating and enhance assembly stability.
The pitch of the contacts is 5.08 mm.
This terminal block has 4 contacts.
This model features a male connector gender.
Yes, the interlocking feature allows for stacking, making it suitable for scalable modular assembly configurations.
