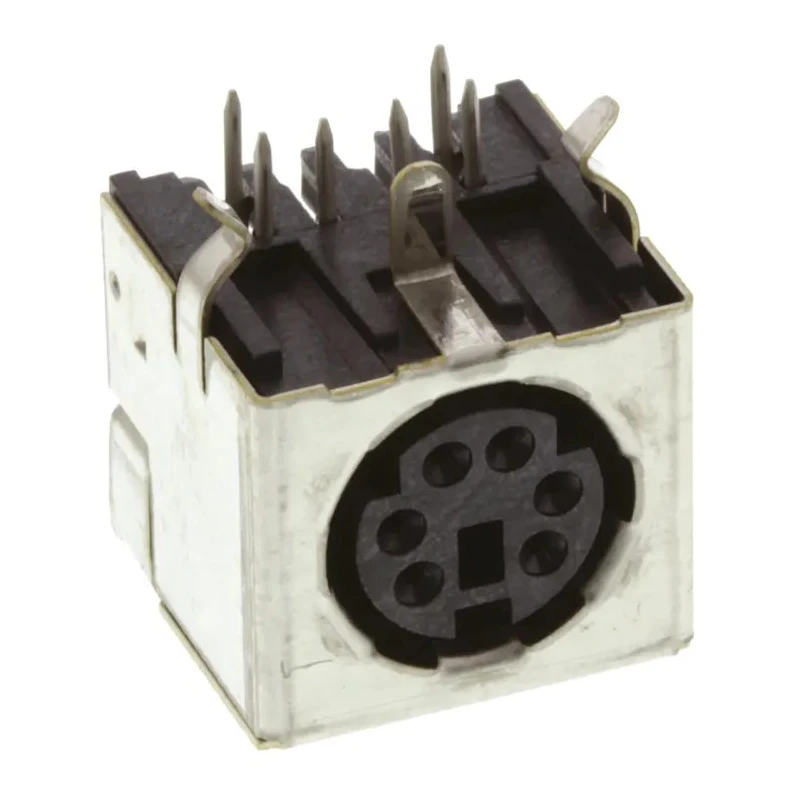

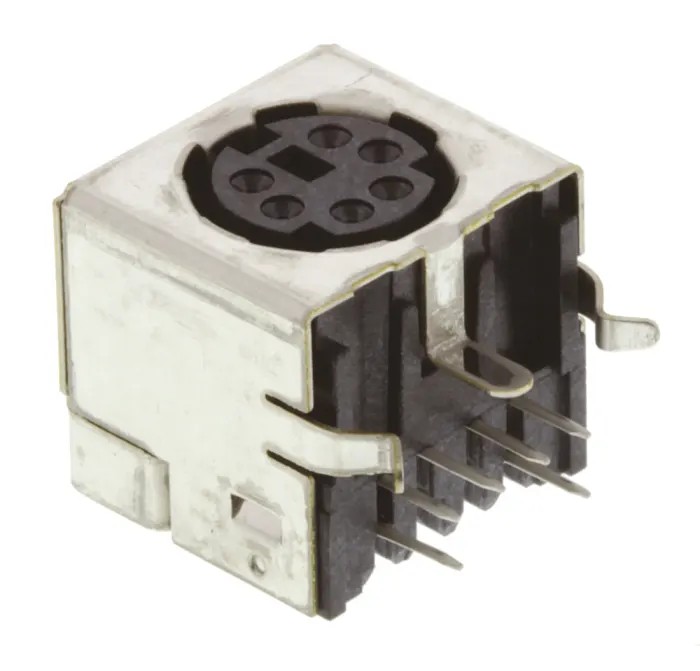

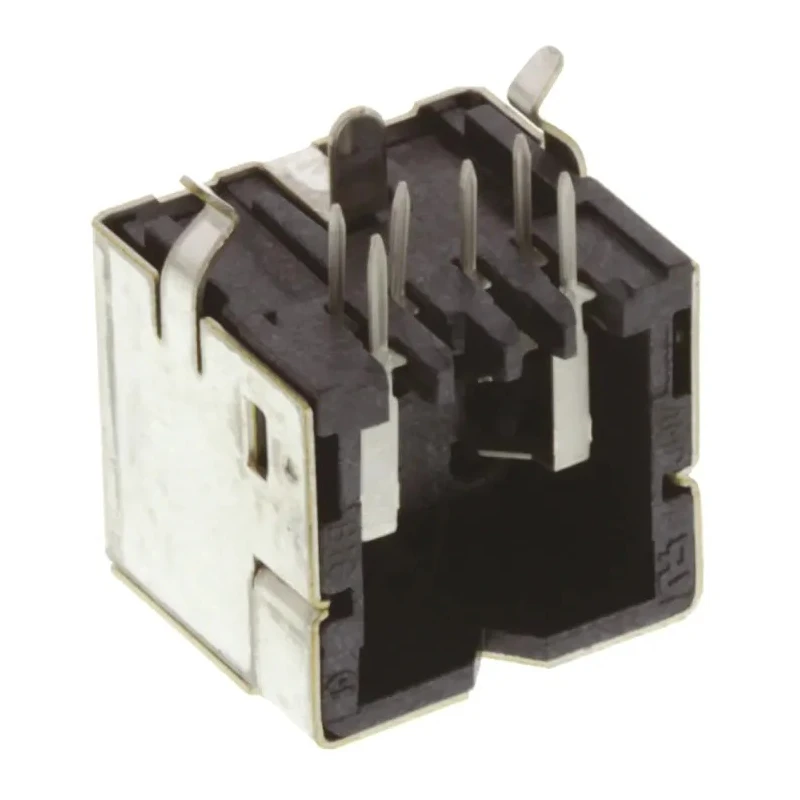

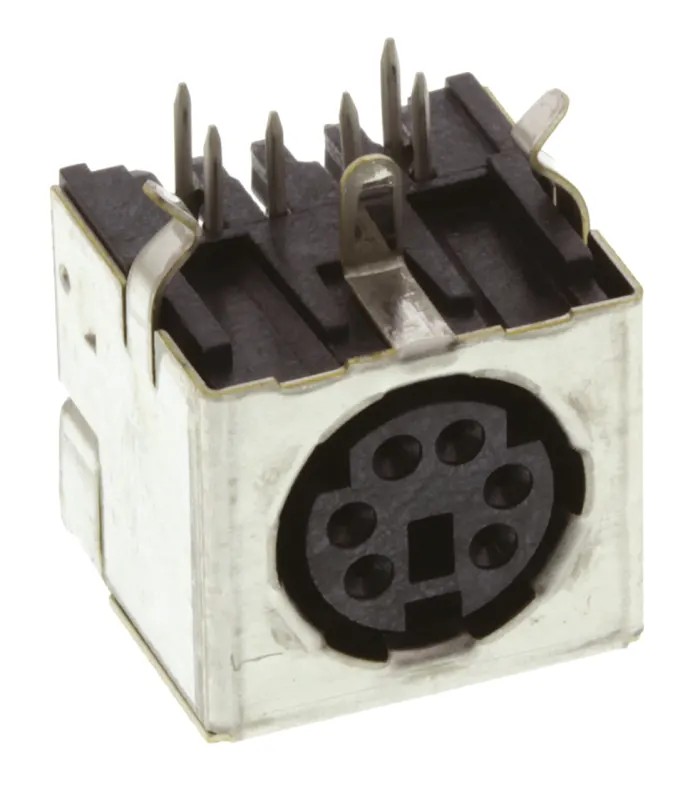

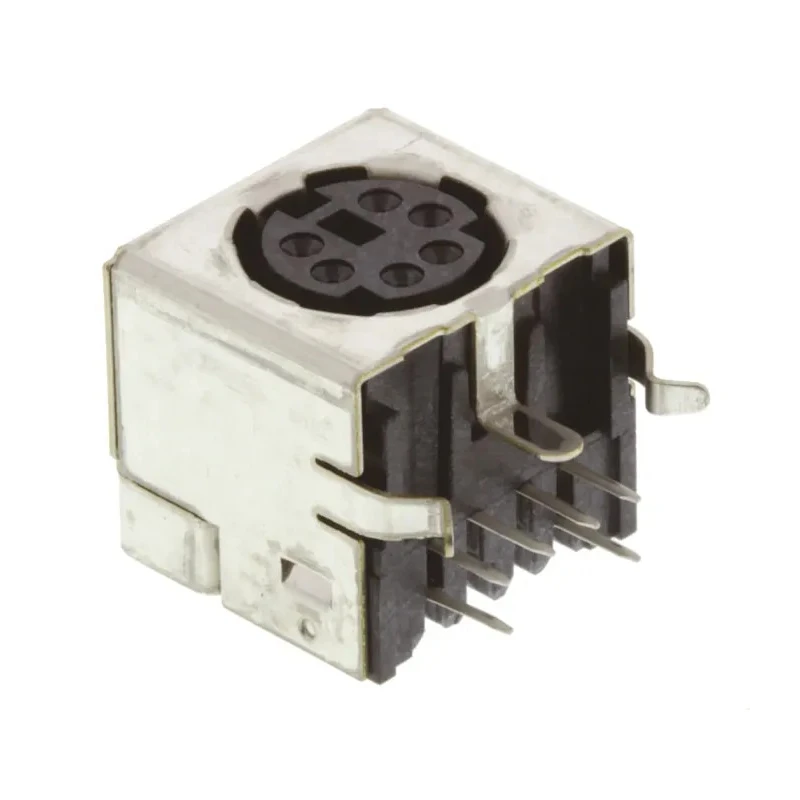

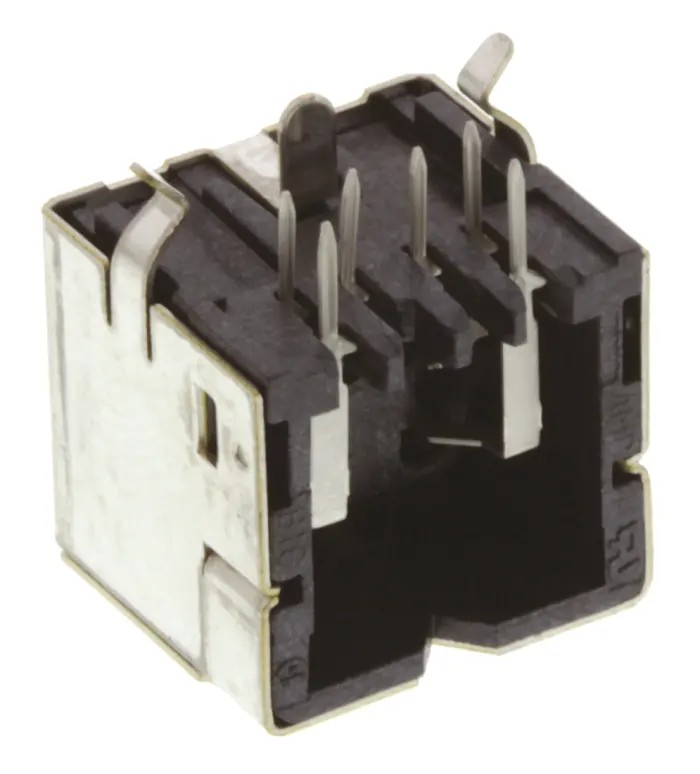

TE Connectivity Mini DIN 6 Pole Right Angle Miniature DIN Socket 30V AC 1A Keyed Through Hole Female 5749180-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini DIN 6 Pole Right Angle Miniature DIN Socket 30V AC 1A Keyed Through Hole Female 5749180-1

Name: TE Connectivity Mini DIN 6 Pole Right Angle Miniature DIN Socket 30V AC 1A Keyed Through Hole Female 5749180-1
Brand: TE Connectivity
SKU: 217897
Price: 3.58 USD
Availability: InStock



Category DIN Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	30V ac
Brand	TE Connectivity
Orientation	Right Angle
Current	1A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	Mini DIN
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Shield Type	Shielded
Pole Format	6
Contact Plating	Gold over Nickel
Number of Contacts	6
Contact Gender	Female
Connector Gender	Female
Mating Type	Keyed
Connector Size	Miniature

Key Features

This connector features 6 contacts arranged for miniature DIN applications.
Female contact gender with gold over nickel plating ensures durability and efficient conductivity.
Constructed with fibreglass reinforced thermoplastic housing providing high mechanical strength.
Right angle orientation facilitates PCB mounting in compact spaces.
Designed for operating temperatures ranging from -55°C to 105°C.
Shielded design includes tin over nickel shielding for EMI protection.
Keyed and polarized to prevent mismating during installation.
Termination type is solder, suitable for PCB assembly.

Product Description

TE Connectivity 5749180-1 is a Mini DIN 6 Pole Right Angle Miniature DIN Socket designed for industrial and electronic applications requiring reliable, keyed connection interfaces. Rated for 1A current and 30V AC voltage, this female socket features a through hole mount format ideal for secure PCB installations.

The connector includes 6 contacts made from copper alloy and plated with gold over nickel to ensure corrosion resistance and effective electrical conductivity. The housing is fabricated from fibreglass reinforced thermoplastic, offering strength and durability while meeting 94V-0 flammability standards.

Its right angle orientation optimizes space on printed circuit boards, making it suitable for compact electronic assemblies. The shielded construction with tin over nickel shielding provides protection against electromagnetic interference, enhancing signal integrity in sensitive circuits.

Operating temperature ranges from -55°C to 105°C allow this connector to perform reliably in harsh industrial environments. The keyed and polarized design prevents incorrect mating, reducing assembly errors. The solder termination type is compatible with standard PCB manufacturing processes.

This connector offers 6 gold-plated female contacts for secure signal connections. Robust fibreglass reinforced housing provides excellent mechanical support. Solder termination supports reliable PCB mounting and electrical contact.

Shielded design enhances performance in electrically noisy environments. Right angle configuration optimizes circuit board layout efficiency. Wide operating temperature range ensures durability across applications. Keyed and polarized to maintain proper connector alignment and safety.

Commonly used in industrial electronics, communication equipment, instrumentation, and other applications where space-saving, reliable connectivity is critical. TE Connectivity’s Mini DIN connectors provide a trusted solution for circular connector needs.

Explore our comprehensive range of DIN Connectors and electronic components to find compatible solutions for your projects at EnvMart.
