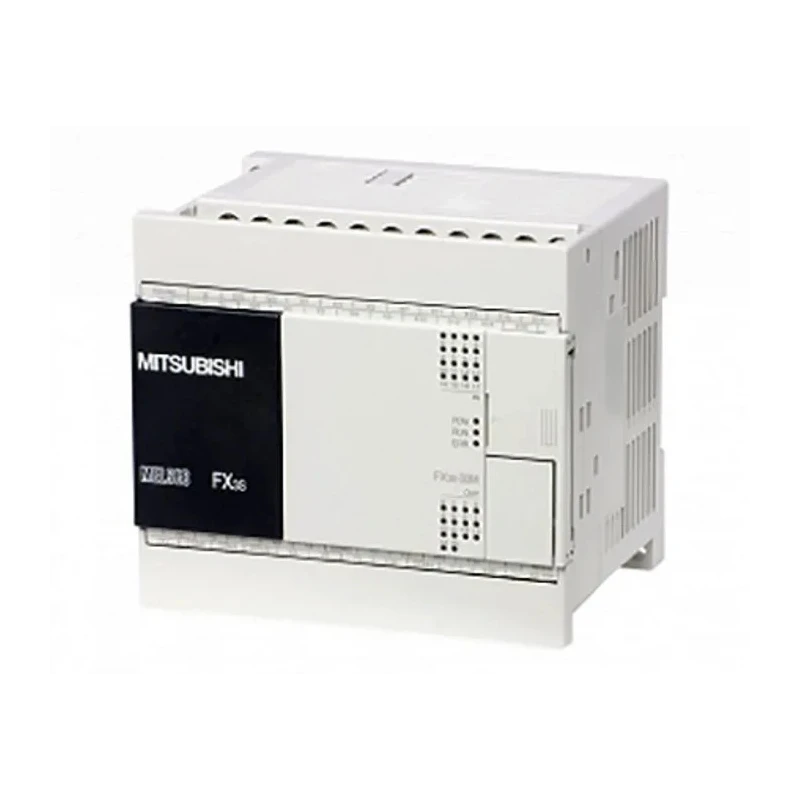

Mitsubishi Electric FX3S Series PLC CPU, 16-Input Sink, 14 Transistor (Source) Outputs, 500mA Output Current, DIN Rail Mount

Free Delivery in India | Lowest Global Shipping Charges

Mitsubishi Electric FX3S Series PLC CPU, 16-Input Sink, 14 Transistor (Source) Outputs, 500mA Output Current, DIN Rail Mount

Name: Mitsubishi Electric FX3S Series PLC CPU, 16-Input Sink, 14 Transistor (Source) Outputs, 500mA Output Current, DIN Rail Mount
Brand: Mitsubishi Electric
SKU: 141416
Price: 736.76 USD
Availability: InStock



Category PLC CPU Brand Mitsubishi Electric Condition New

Specifications

Country of Origin	Japan
Brand	Mitsubishi Electric
Length	100mm
Model	FX3S
Depth	75mm
Width	90mm
Mount Type	DIN Rail
Number of inputs	16
Output type	Transistor (Source)
Series	FX3S
Output Current	500mA
Input Type	Sink
Maximum Operating Temperature	55°C
Minimum Operating Temperature	0°C
Interfaces	USB port for the programming communication function to enable high-speed communication at 12Mbps
Number of outputs	14
Program Capacity	4000Steps
Standards/Approvals	cUL, EC Directive, EMC Directive, UL
Number of Communication Ports	2
Communication Port Type	RS422, USB
Programming Language Used	Step Ladder

Key Features

Features a DIN rail mount for easy installation.
Supports step ladder programming with a program capacity of 4000 steps.
Includes built-in USB and RS422 communication ports for high-speed programming and data transfer.
Operates reliably in temperatures from 0°C to 55°C.
Battery backup ensures operation continuity during power loss.
Supports output currents of up to 500 mA per output.
Integration with GX Works2 software for enhanced programming features.
Includes an integrated real-time clock and positioning control functions.

Product Description

Mitsubishi Electric FX3S-30MT/ESS-2AD is a high-performance, compact Programmable Logic Controller (PLC) CPU designed specifically for space-conscious and cost-sensitive automation applications. It features 16 sink-type inputs and 14 transistor (source) outputs capable of driving up to 500mA, making it well suited for industrial automation, manufacturing processes, and machine control systems.

This FX3S model offers an integrated power supply, maintenance-free EEPROM memory, and ample programming capacity supporting up to 4000 steps using the step ladder programming language. It is mountable on DIN rails to facilitate installation in control panels and distribution boxes. The device supports two communication ports (USB and RS422), allowing high-speed data communication at up to 12 Mbps using Mitsubishi’s GX Works2 programming software.

The controller operates reliably within a 0 to 55°C temperature range and includes a battery backup to preserve program data and system operation continuity in power disturbances. Its compact dimensions of 100mm (L) x 90mm (W) x 75mm (D) ensure it can be fitted into confined spaces.

Designed for industrial environments, this PLC adheres to cUL, EC Directive, EMC Directive, and UL standards, guaranteeing safe and reliable performance. The FX3S series supports expansion boards and special adapters, increasing its functionality to meet diverse automation requirements.

The Mitsubishi Electric FX3S-30MT/ESS-2AD is ideal for industrial automation applications including assembly line control, packaging machinery, HVAC systems, and water treatment plants. The integrated real-time clock and positioning control features enable accurate process timing and motor control.

DIN rail mount for convenient panel installation. High-speed USB communication at 12 Mbps. Maintenance-free with EEPROM memory. Supports expansion via additional boards and adapters. Compatible with GX Works2 programming software.
