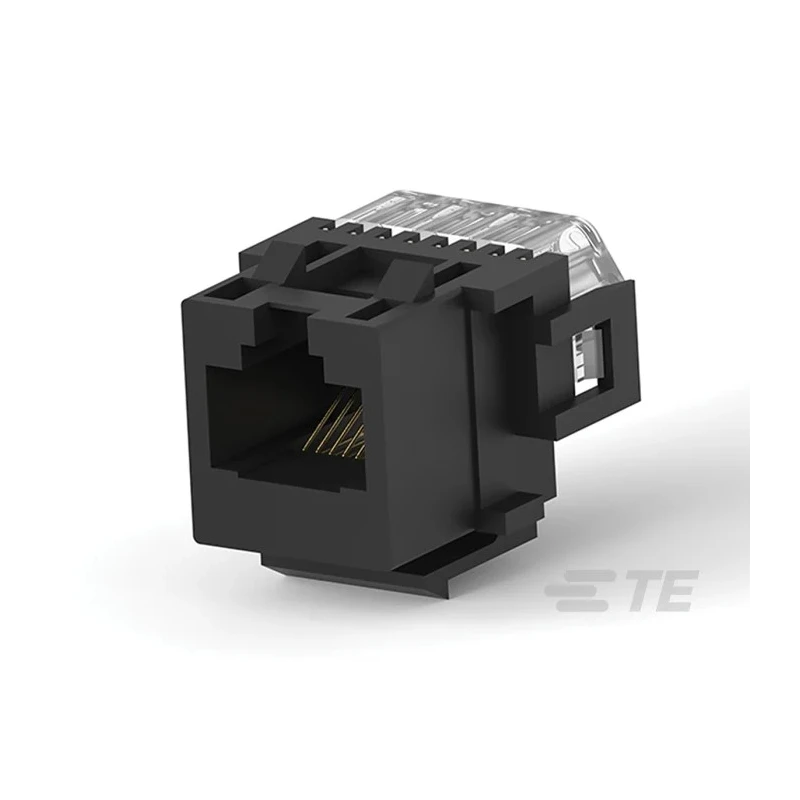

TE Connectivity RJ45 Connector Female Surface Mount Cat3 Unshielded Right Angle 2 Port 8 Way 216005-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity RJ45 Connector Female Surface Mount Cat3 Unshielded Right Angle 2 Port 8 Way 216005-4

Name: TE Connectivity RJ45 Connector Female Surface Mount Cat3 Unshielded Right Angle 2 Port 8 Way 216005-4
Brand: TE Connectivity
SKU: 159774
Price: 9.65 USD
Availability: InStock



Category Network & Telecom Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Right Angle
Length	22mm
Model	216005-4
Depth	22mm
Connector Type	Modular Jack
Number Of Ways	8
Width	19.2mm
Mount Type	Surface
Contact Material	Phosphor Bronze
Series	216005
Number Of Ports	2
Termination Type	IDC
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Interfaces	LAN Category: Cat3
Shield Type	Unshielded
Contact Plating	Gold over Nickel
Connector Gender	Female
LAN Category	Cat3
Ethernet Connector Type	RJ45

Key Features

Designed for Cat3 LAN applications supporting 2 ports and 8 ways.
Features female connector gender with modular jack type.
Unshielded design with right angle orientation for surface mounting.
Contact material of phosphor bronze with gold over nickel plating enhances conductivity and durability.
Operates within temperature range from -40°C to 70°C for reliable performance.
Compact dimensions with length and depth of 22mm, width 19.2mm.
Does not include LED indication and has no hazardous area certification.

Product Description

TE Connectivity 216005-4 RJ45 Connector is a female, surface mount type Ethernet connector designed for Cat3 LAN network applications. It features an unshielded right angle modular jack configuration with two ports and eight ways, delivering reliable connectivity for electronic and telecommunications equipment.

The connector is constructed with phosphor bronze contacts plated with gold over nickel, ensuring excellent electrical conductivity and resistance to corrosion. Its surface mount design and insulation displacement contact (IDC) termination type allow for efficient mounting and wiring during PCB assembly.

Operating temperature ranges from -40°C to 70°C make this connector suitable for varied industrial and commercial environments where temperature stability is critical. Its compact form factor measures 22mm in length and depth and 19.2mm in width, optimising space on densely populated boards.

This RJ45 connector does not support LED indicators and is not certified for use in hazardous locations. It is ideal for applications in networking equipment, industrial communication, data transmission, and telecommunication infrastructure requiring high-quality Cat3 connections.

Designed for Cat3 LAN applications supporting 2 ports and 8 ways. Features female connector gender with modular jack type. Unshielded design with right angle orientation for surface mounting. Contact material of phosphor bronze with gold over nickel plating enhances conductivity and durability.

Operates within temperature range from -40°C to 70°C for reliable performance. Mounting type: surface with IDC termination method for easy installation. Compact dimensions with length and depth of 22mm, width 19.2mm. Does not include LED indication and has no hazardous area certification.

This TE Connectivity RJ45 connector 216005-4 series is widely used in industrial, telecommunications, manufacturing, and electronic equipment where reliable and standardized Cat3 networking connections are critical. Environmental ratings and robust contact materials support durability in harsh settings.
