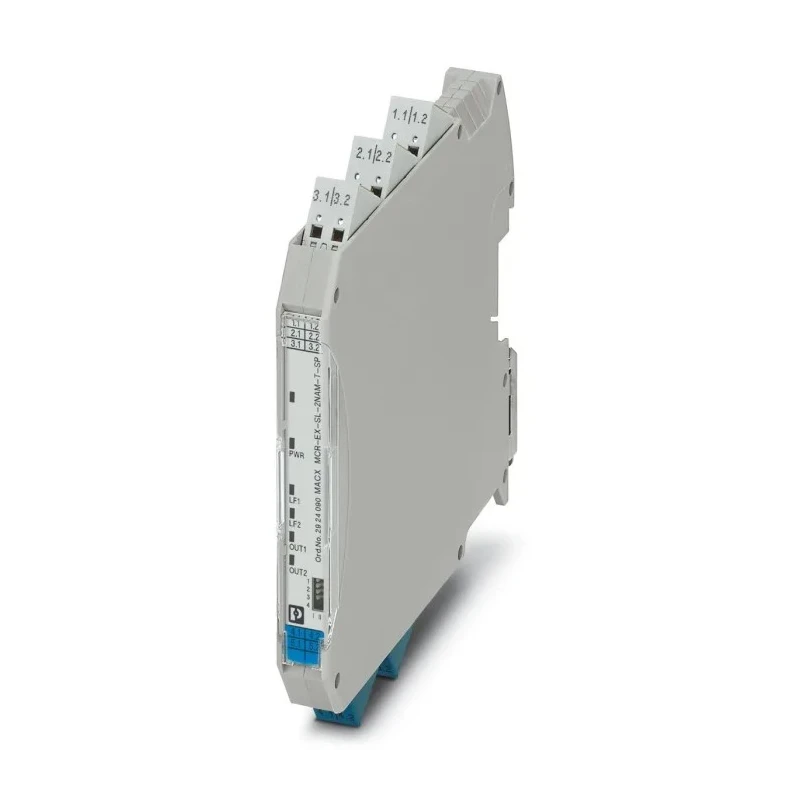

Phoenix Contact 2 Channel Galvanic Barrier Digital 19.2-30V DC 10.3mA IP20 2924090

Designed for industrial and commercial use, it prevents ground loops and unwanted current flow, protecting personnel and equipment.

This device supports digital signal types and operates at 19.2 to 30 volts DC supply voltage with a maximum safety current of 10.3mA. The compact module mounts easily on DIN rails and features push-in terminals for secure connections.

It provides line fault detection (LFD) with a color-coded LED system (green, yellow, red) to quickly identify circuit issues, reducing downtime and enhancing workplace safety. Suitable for proximity sensors and switches in hazardous areas, it complies with CE, RoHS, ATEX, IEC, UL, and WEEE standards to meet strict regulatory requirements.

The operating temperature range from -20°C to 60°C allows reliable function in demanding environments. The product is IP20 rated, ensuring protection against solid intrusion but requires installation in enclosed panels for safety.

Galvanic isolation avoids ground loop currents for safety. Line fault detection via LED indicators expedites troubleshooting. Push-in terminal type ensures fast and secure wiring. DIN rail mount for flexible and space-saving installation.

Comprehensive approvals ensure suitability for hazardous locations. Broad operating temperature supports various industrial applications. Designed for reliable digital signal transmission between intrinsic safety and safe areas.

Manufactured in Germany, Phoenix Contact ensures quality and robust performance. This 2-channel galvanic barrier is part of the MACX MCR-EX-SL-2NAM series and is ideal for industrial automation, chemical plants, oil and gas, and other hazardous environments requiring reliable isolation and signal conditioning.
