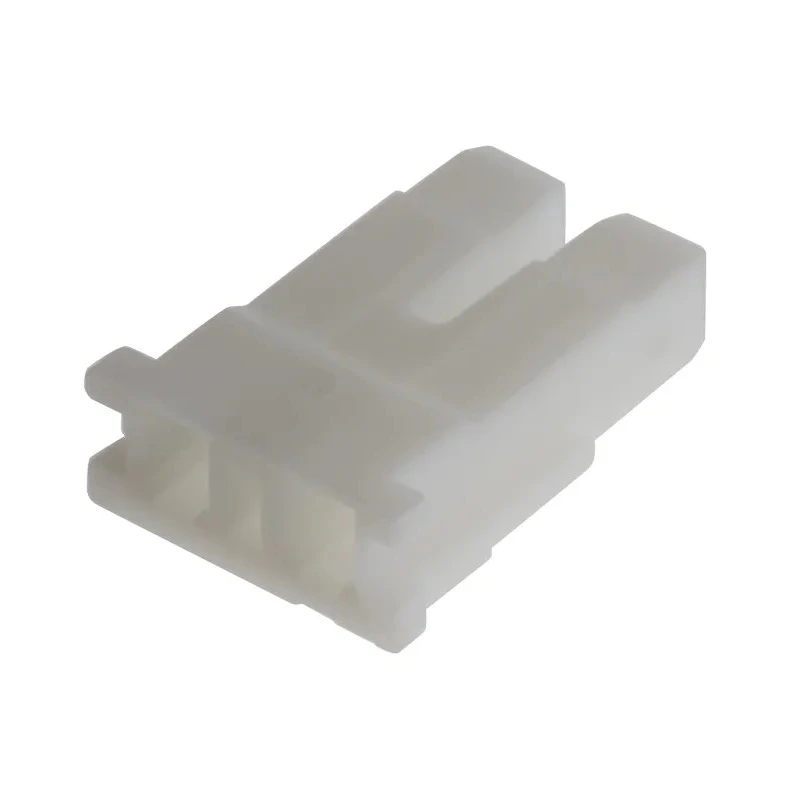

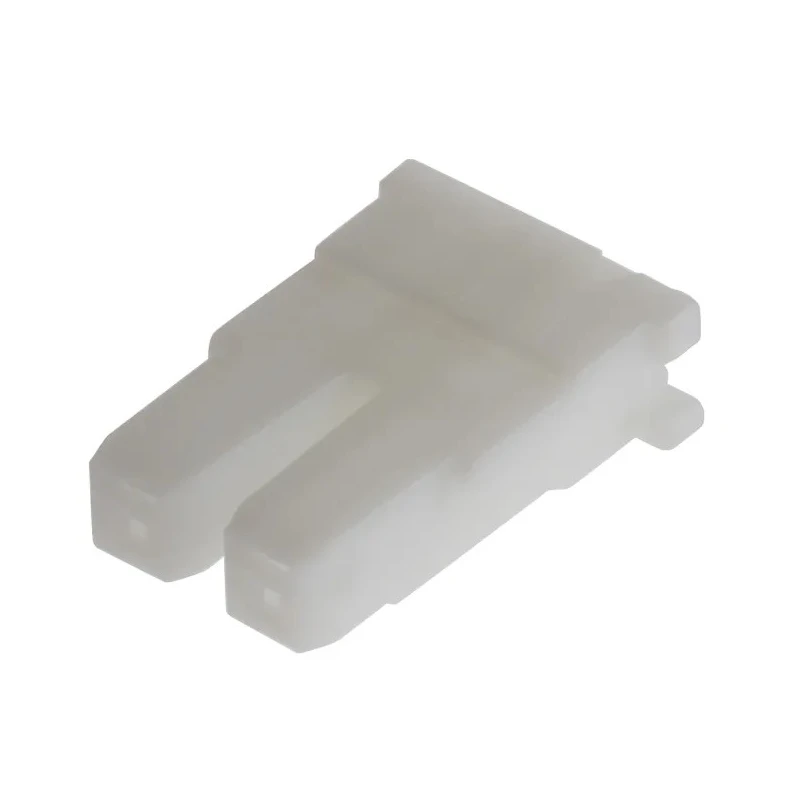

JST BHSR Female Connector Housing 3.5 mm Pitch 2 Way 1 Row Straight BHSR-02VS-1(N)(P)

Free Delivery in India | Lowest Global Shipping Charges

JST BHSR Female Connector Housing 3.5 mm Pitch 2 Way 1 Row Straight BHSR-02VS-1(N)(P)



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	7.5mm
Model	BHSR-02VS-1(N)(P)
Width	3.2mm
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	BHSR
Number of Rows	1
Pitch	3.5mm
For Use With	BHS Connectors
Number of Contacts	2
Connector Gender	Female

Key Features

The housing is made from durable polybutylene terephthalate material.
Provides a low profile design with high withstanding voltage capability.
Suitable for connecting liquid crystal display back light lamps to their starters.
Features a housing lock that also serves as a polarizing device for secure connection.
Its crimp style contact allows easy insertion with little force, ideal for flexible wires including silicone rubber insulated.
Compact dimensions with length 7.5 mm and width 3.2 mm ensure space-efficient PCB mounting.
The connector orientation is straight with female gender contacts.

Product Description

The JST BHSR-02VS-1(N)(P) Female Connector Housing offers a reliable 3.5 mm pitch, 2 way, single row straight configuration engineered for cable mount applications. This connector housing is constructed from polybutylene terephthalate, providing notable durability and heat resistance, suitable for a range of electronic component assemblies.

Designed specifically for use with BHS connectors, it features a low profile design that supports high withstanding voltage, making it ideal for delicate applications such as connecting LCD back light lamps to their starters. The housing lock doubles as a polarizing mechanism, ensuring correct and secure mating.

The crimp style contact architecture enables insertion with minimal force, supporting flexible wiring systems including those insulated with silicone rubber, thus enhancing versatility in wire assemblies.

Dimensional specifics include a length of 7.5 mm, width of 3.2 mm, and a pitch spacing of 3.5 mm between contacts, allowing compact yet effective PCB mounting with a cable orientation that is straight. This product does not claim any formal standards or approvals but represents a robust component in connector housing solutions.

The housing is made from high-quality polybutylene terephthalate plastic. Low profile design with high voltage tolerance for electronic safety. Connector housing designed for cable mounting with BHS series connectors. Polarizing locking mechanism to prevent misconnection.

Suitable for flexible wires including silicone rubber insulated wires. Two contact positions configured in one row with straight orientation.

This connector housing is suitable for industrial electronics assembly, power connector systems, and specialized cable connection applications across manufacturing, automation, and electronic device production sectors.
