KNITTER-SWITCH Rotary Coded DIP Switch Through Hole Rotary Flush Actuator DRR60016

Name: KNITTER-SWITCH Rotary Coded DIP Switch Through Hole Rotary Flush Actuator DRR60016
Brand: KNITTER-SWITCH
SKU: 217562
Price: 4.35 USD
Availability: InStock



Category Rotary Coded DIP Switch Brand KNITTER-SWITCH Condition New

Specifications

Country of Origin	Korea
Brand	KNITTER-SWITCH
Model	DRR60016
Mount Type	Through Hole
Actuator Type	Rotary Flush
Case	PA6T meets UL 94 V - 0, cover light grey, base black
Dielectric strength	250 V, 50 Hz for the duration of 1 minute
Rotor	grey, complementary type beige
Auto-soldering - max.	5 sec, 260° C

Key Features

Operates at 24 Vdc with 25 mA switching current.
Dielectric strength of 250 V at 50 Hz for 1 minute ensure reliable insulation.
Case made of PA6T material meets UL 94 V-0 flammability rating with light grey cover and black base.
Grey rotor complemented by beige actuator provides distinct tactile and visual feedback.
Designed for pc-board mounting with 2.54 mm spacing and through-hole soldering.
Supports auto-soldering with a maximum of 5 seconds at 260° C.
Manufactured in Korea ensuring high quality and compliance with industrial standards.

Product Description

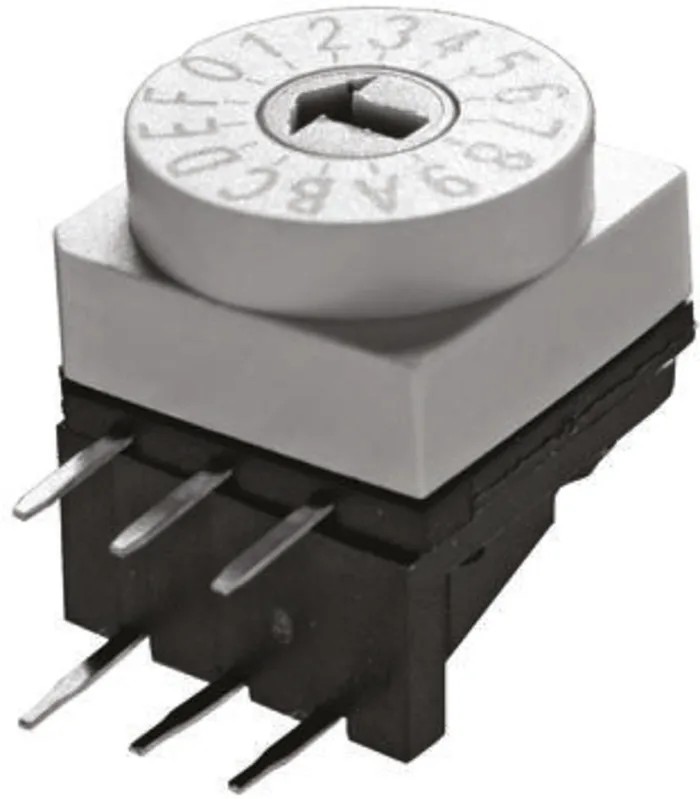

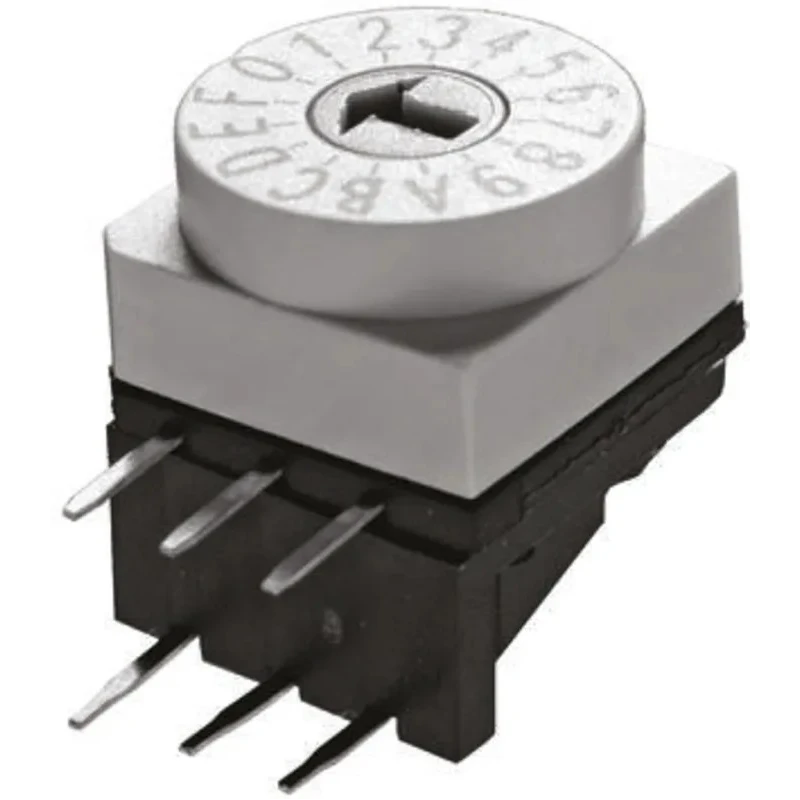

The KNITTER-SWITCH DRR60016 is a precision Rotary Coded DIP Switch featuring a rotary flush actuator, optimized for through-hole mounting on printed circuit boards with a pitch of 2.54 mm. This subminiature switch is part of the DRR & DRS 60000 series, suitable for compact and reliable electronic and electrical switching applications in industrial automation, electrical control systems, and instrumentation.

Operating parameters include a rating of 24 Vdc with 25 mA maximum switching current, making it suitable for low voltage signal switching and control circuits. The device boasts a dielectric strength of 250 V at 50 Hz for a duration of 1 minute, providing excellent insulation integrity and durability under electrical stress.

The switch case is constructed from PA6T material, compliant with the UL 94 V-0 flame retardant standard, featuring a light grey cover and a black base for robust mechanical protection and safety. The rotor is finished in grey with a complementary beige actuator that offers precise tactile feedback for programming and setting rotary coded inputs.

Designed for automated assembly, the switch supports through-hole mounting with a 2.54 mm board spacing and can withstand auto-soldering processes of up to 5 seconds at 260° Celsius to ensure manufacturing efficiency without compromising component reliability.

Manufactured in the Republic of Korea, the KNITTER-SWITCH DRR60016 meets stringent quality and performance criteria essential for demanding industrial, electrical, and automation environments. This makes it an excellent choice for engineers and technicians seeking durable and compact rotary coded DIP switches for control panels and modular circuitry.

Operates at 24 Vdc with 25 mA switching current. Excellent dielectric strength of 250 V, 50 Hz for 1 minute. High-quality PA6T case material with UL 94 V-0 flame rating. Ergonomic grey rotor with beige complementary rotary flush actuator.

Through-hole mounting suitable for pc-boards with 2.54 mm pitch. Supports auto-soldering at 260° C for up to 5 seconds. Made in Korea for superior quality assurance. Explore KNITTER-SWITCH Rotary Coded DIP Switches for innovative automation and electronic control solutions available at EnvMart.
