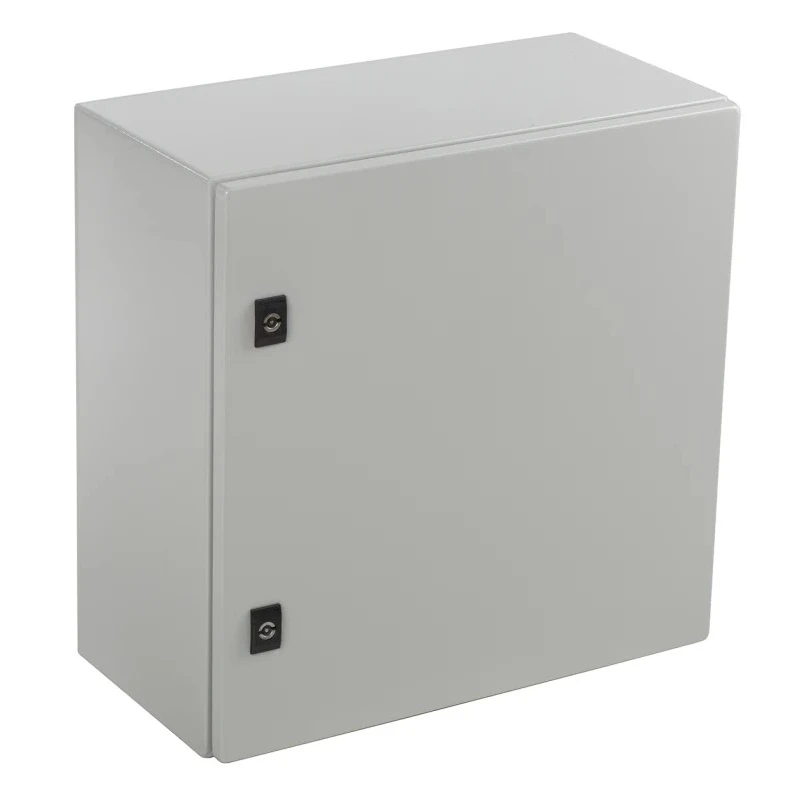

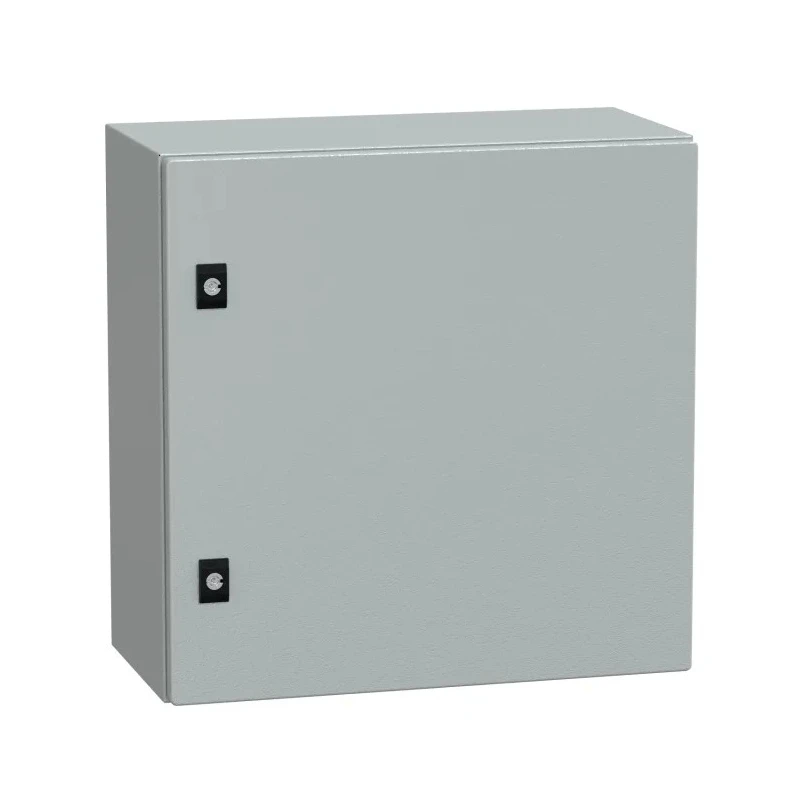

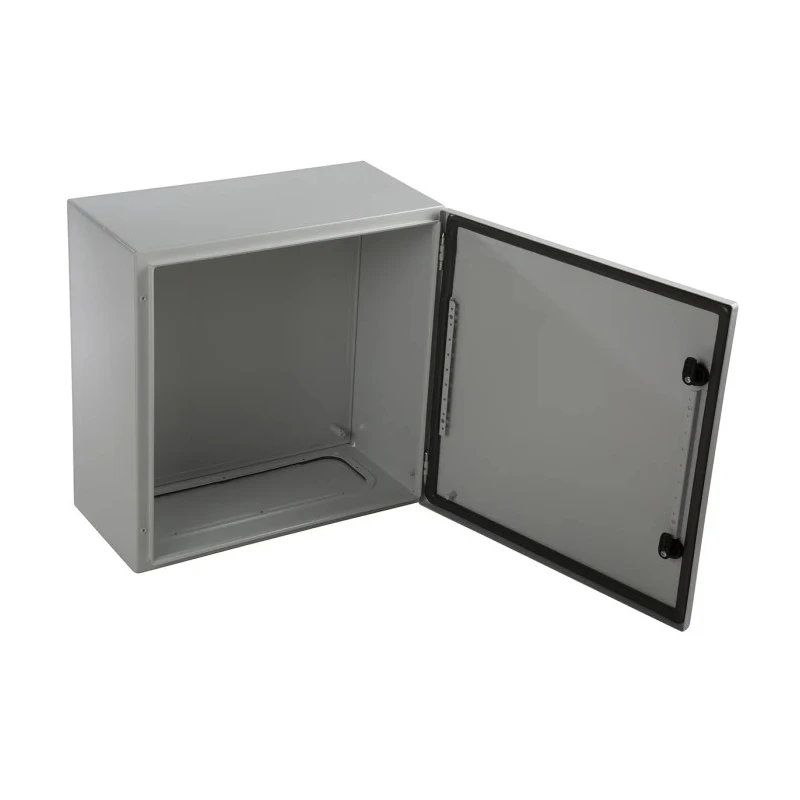

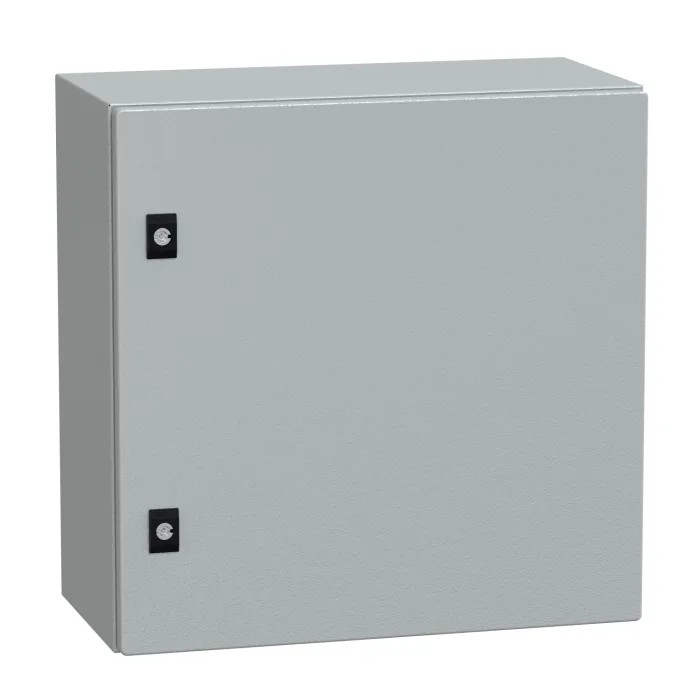

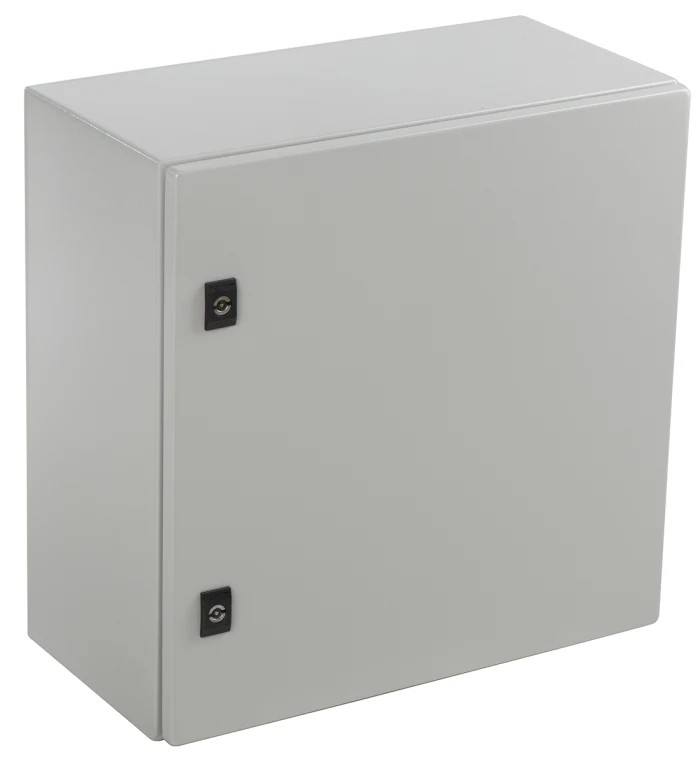

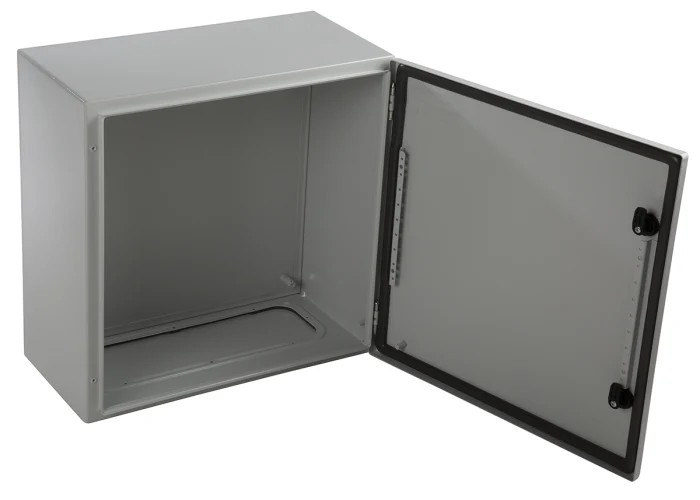

Schneider Electric Spacial CRN Series Steel Wall Box IP66 500 mm x 500 mm x 250 mm NSYCRN55250

Schneider Electric NSYCRN55250 Spacial CRN Series Steel Wall Box offers a high-quality protective enclosure designed for industrial-grade electrical applications. With external dimensions of 500 mm height, 500 mm width, and 250 mm depth, this robust steel enclosure ensures secure housing for sensitive electrical components and control equipment.

This wall box features an IP66 rating, providing complete protection against dust ingress and high-pressure water jets from any direction, making it ideal for harsh and non-clean industrial environments. The epoxy-polyester powder coating provides excellent resistance against chemical agents and corrosion, extending the product lifespan under demanding conditions.

For security, the box includes a 3 mm double-bar lock mechanism, safeguarding assets against unauthorized access. The hinged door can be configured to open either left or right to suit installation requirements. Additionally, the IK10 impact rating attests to the enclosure’s ability to withstand significant mechanical impacts up to 20 joules without damage.

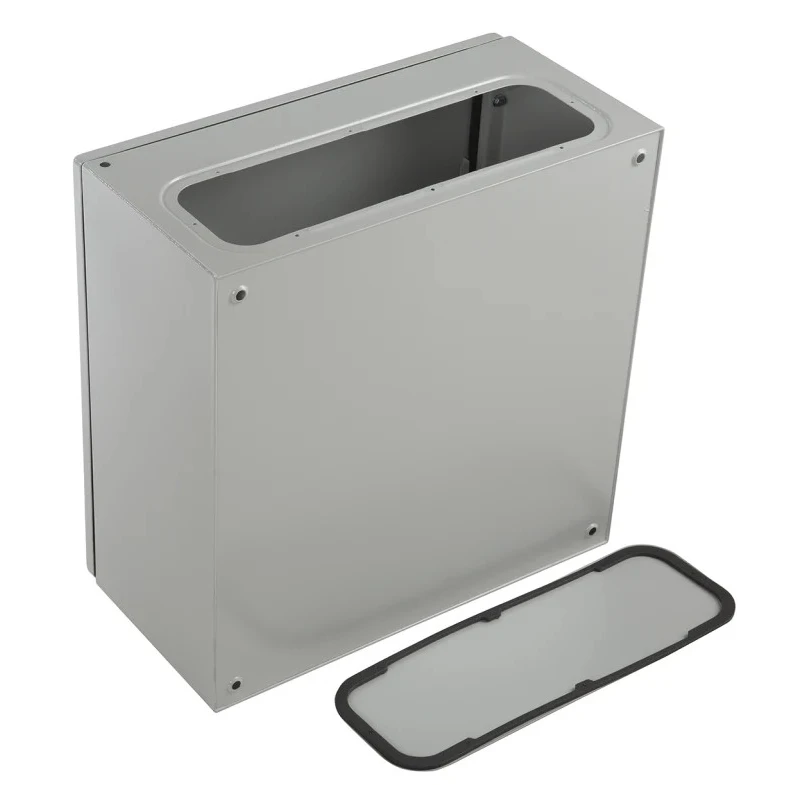

Electrical installation is simplified by the integrated gland plate, allowing fast and efficient cable entry and wire management. This enclosure complies with IEC 62208 standards pertinent to empty enclosures for low-voltage device assemblies, ensuring reliability and regulatory conformity.

Applications for this Wall Box include electrical distribution networks, automation, and control system environments within industrial, manufacturing, and non-clean facilities. The product’s sturdy design and protective ratings contribute to operational safety and equipment longevity.

Constructed from durable steel with epoxy-polyester powder finish for chemical resistance. IP66 dust and water ingress protection. Reversible 120° hinged door with double-bar lock for enhanced security. IK10 impact resistance standard compliant.

Built-in cable gland plate facilitates cable management. Internal panel mounting for electrical components. Designed for industrial electrical distribution and controls. Meets IEC 62208 enclosure standards. Weight approximately 11 kg for solid build.
