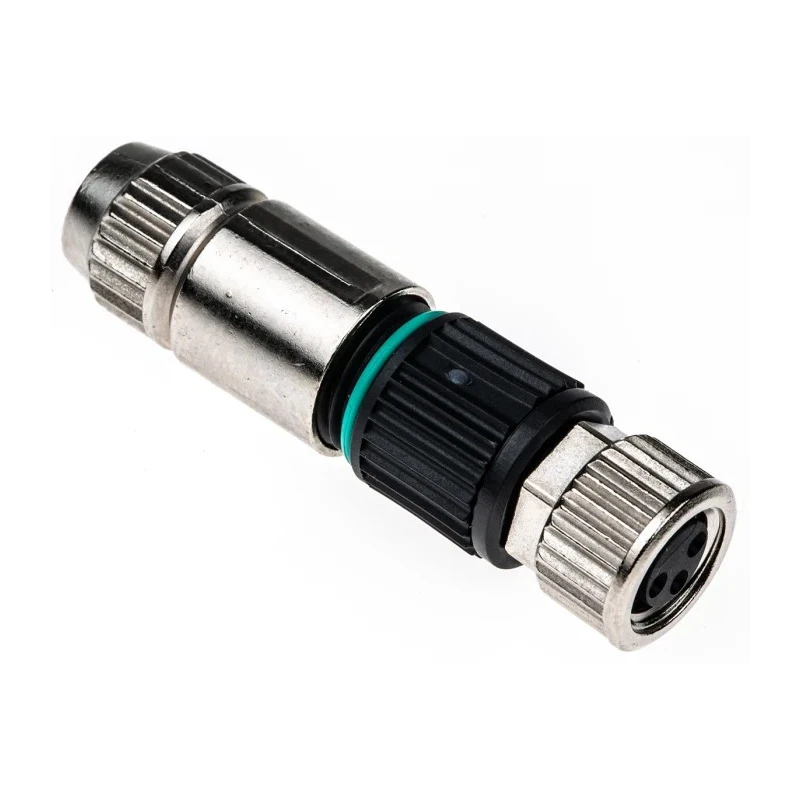

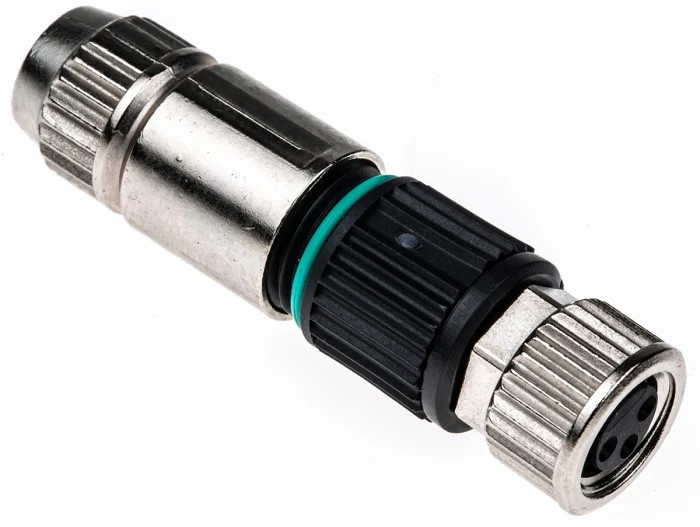

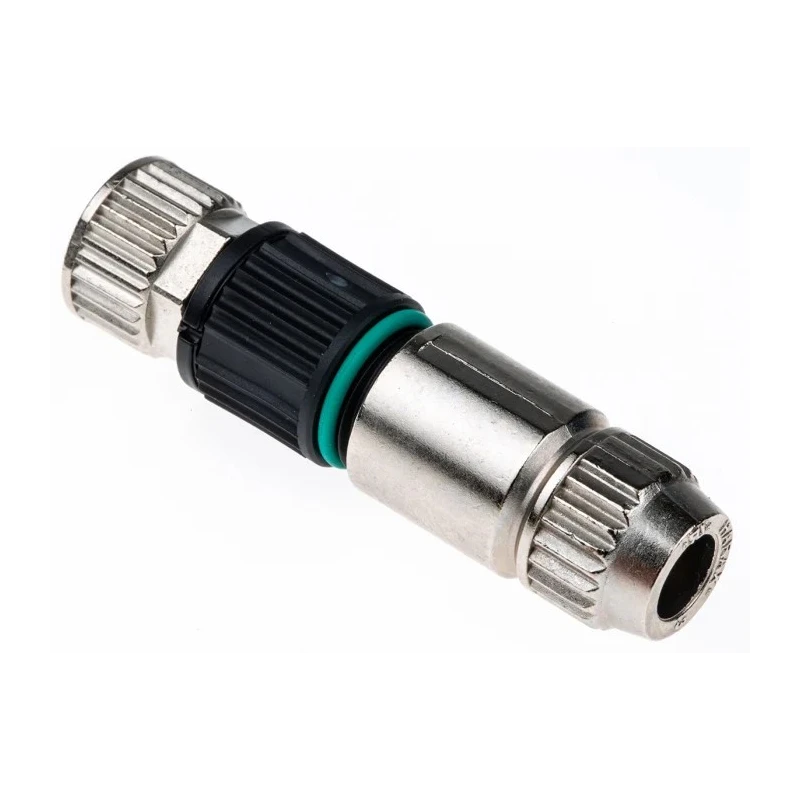

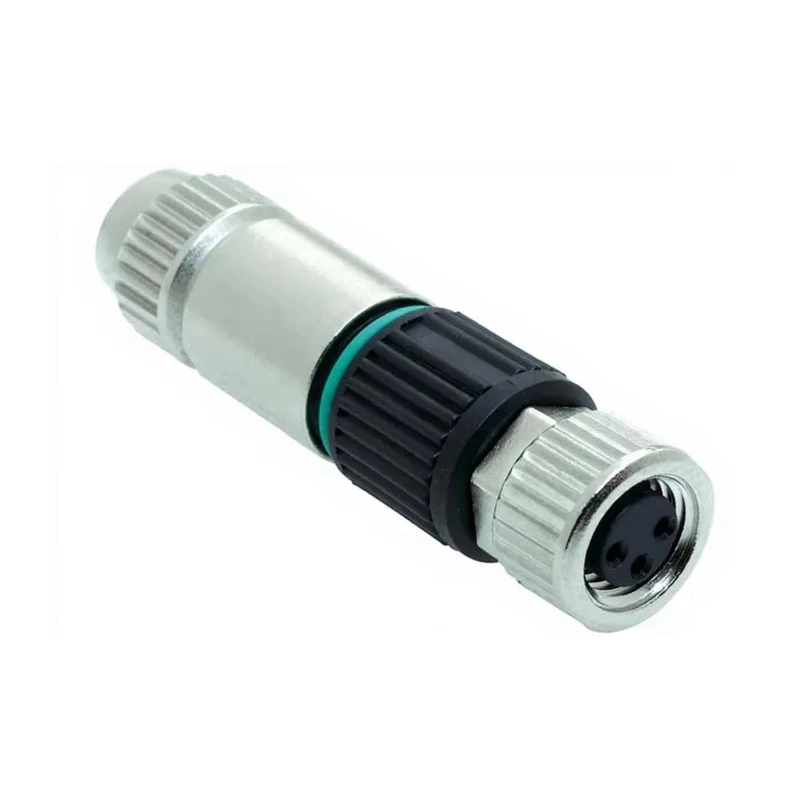

HARTING HARAX 3 Pole Straight M8 DIN Socket 4A 32V IP67 Screw Cable Female 21021512305
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 32V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 4A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polyamide, Zinc Die Cast Alloy |
| Contact Material | Copper Alloy |
| Series | HARAX |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Pole Format | 3 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Screw |
| Connector Size | M8 |
Key Features
- Features gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance.
- Rated for a current of 4A suitable for low-power signal and control circuits.
- Offers IP67 protection against dust and temporary immersion.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Constructed with polyamide and zinc die-cast alloy housing for mechanical durability.
- Designed for solder termination ensuring secure cable mounting.
- Employs screw-style mating for a mechanically secure connection.
- Unshielded connector recommending additional EMI protection if needed.
Product Description
HARTING 21021512305 HARAX 3 Pole Straight M8 DIN Socket, rated at 32V and 4A current, is a cable-mounted circular connector designed for demanding industrial environments requiring sealed, low-voltage interconnections.
This connector features three conductors and is assembled via solder termination, providing a robust and reliable attachment to cables. The screw-style mating guarantees a secure mechanical connection suitable for applications exposed to vibration.
The contacts are made of copper alloy plated with gold over nickel, ensuring low contact resistance and enhanced durability in circuits with frequent mating cycles. The housing is constructed from polyamide combined with zinc die-cast alloy, offering excellent protection against mechanical stress.
Its IP67 ingress protection rating permits operation in environments with dust and occasional immersion in water, making it suitable for tough industrial conditions. The operating temperature range from -40°C to 85°C ensures reliable performance across temperature-variable installations.
While this connector is unshielded, it is recommended to use additional cable screening or external measures in environments susceptible to electromagnetic interference.
Common applications include automation sensor cabling in production lines, signal wiring within factory control systems, robotics end-effector connections requiring sealed interfaces, machinery maintenance harness junctions, and low-voltage testing or measurement rigs.
Features gold-plated copper alloy contacts for conductivity and corrosion resistance. Supports 4A current rating for control and signal circuits. IP67 rated for dust and temporary immersion protection. Operating temperature from -40°C to 85°C.
Robust polyamide and zinc die-cast alloy housing. Solder termination for secure cable mounting. Screw-style mating ensures mechanical security. Unshielded design with EMI considerations. Suitable for automation, robotics, and industrial sensor applications.
Explore the HARTING connector range and related DIN Socket products on EnvMart for reliable industrial connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 4A, suitable for low-power signal and control circuits.
It operates at a voltage of 32V.
It has an IP67 rating, providing protection against dust and temporary immersion in water.
The housing is made from polyamide and zinc die-cast alloy, while the contacts are copper alloy plated with gold over nickel.
It operates reliably in temperatures ranging from -40°C to 85°C.
It features screw-style mating for a mechanically secure connection and employs solder termination for secure cable mounting.
This model is unshielded; additional cable screening or external measures are recommended in environments susceptible to electromagnetic interference.
Common applications include automation sensor cabling, signal wiring in factory control systems, and robotics connections requiring sealed interfaces.
It features a 3 pole format.
The contacts are female, and the connector itself is also female gendered.
The connector is manufactured in Germany.
It uses solder termination to ensure a robust and reliable attachment to cables.
