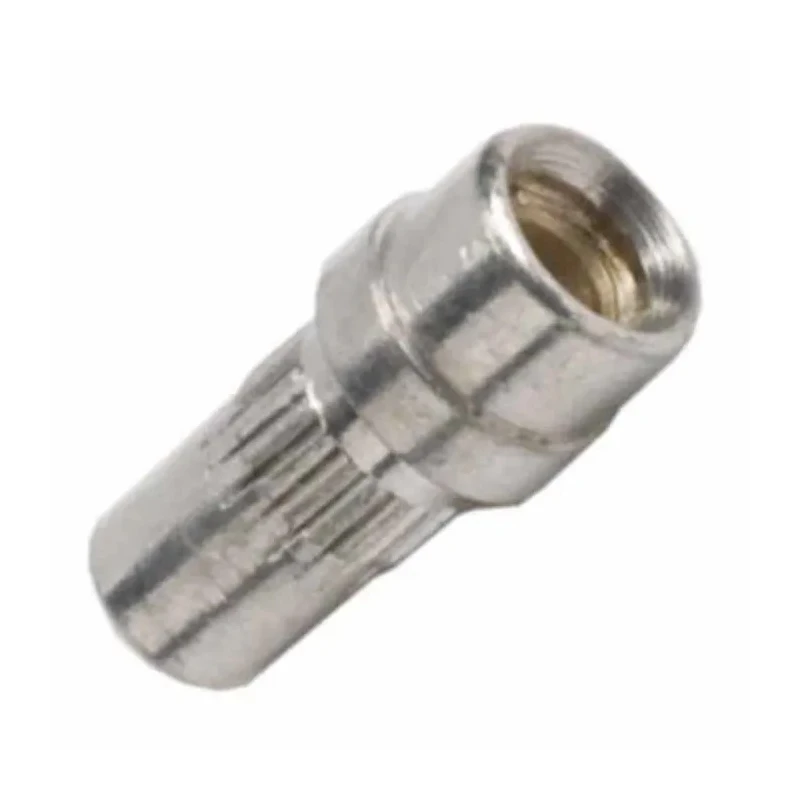

HARWIN PCB Socket, Female, 10A Current, Straight Orientation, Beryllium Copper Alloy Contacts, Gold over Nickel H3165-01

HARWIN H3165-01 PCB Socket is a female connector designed for use with printed circuit boards, providing reliable electrical connections with a current rating of 10 A. Featuring a straight orientation, this socket has a length of 5.65 mm making it suitable for compact PCB designs.

The contact components are made from a beryllium copper alloy, chosen for its excellent electrical and mechanical properties. Contacts are plated with gold over nickel to ensure consistent conductivity and resist corrosion, enhancing long-term performance in industrial and electronic applications.

The housing is manufactured from brass, offering strong mechanical support and durability. This socket complies with the RoHS directive, reflecting environmental safety and sustainability.

Specifically engineered to mate with Ø1.00 mm pins, the socket includes a retention feature with a gold clip and tin shell for secure and stable connections. It employs a 4-finger beryllium copper contact clip designed to withstand vibrations ranging from 10 to 2,000 Hz and shock up to 10G for 6 hours, making it suitable for demanding industrial, manufacturing, and electronic environments.

The product requires soldering for attachment, ensuring a secure and permanent electrical connection on the PCB. Features straight orientation for easy PCB integration. Uses beryllium copper alloy for contact material ensuring durability.

Contacts plated with gold over nickel to provide excellent conductivity and corrosion resistance. Housing made of brass for robust mechanical protection. Complies with RoHS standards for environmental safety. Designed to mate with Ø1.00mm pins with retention gold clip and tin shell.

Includes 4-finger beryllium copper contact clip offering vibration resistance up to 10-2,000Hz and 10G for 6 hours. Requires soldering for electrical connection to the PCB. Compact length of 5.65 mm facilitates usage in tight PCB layouts.

This connector is widely used in electronic, industrial, manufacturing, and laboratory applications where reliable printed circuit board connections are critical. It supports the design and creation of robust electrical assemblies compliant with modern environmental standards.
