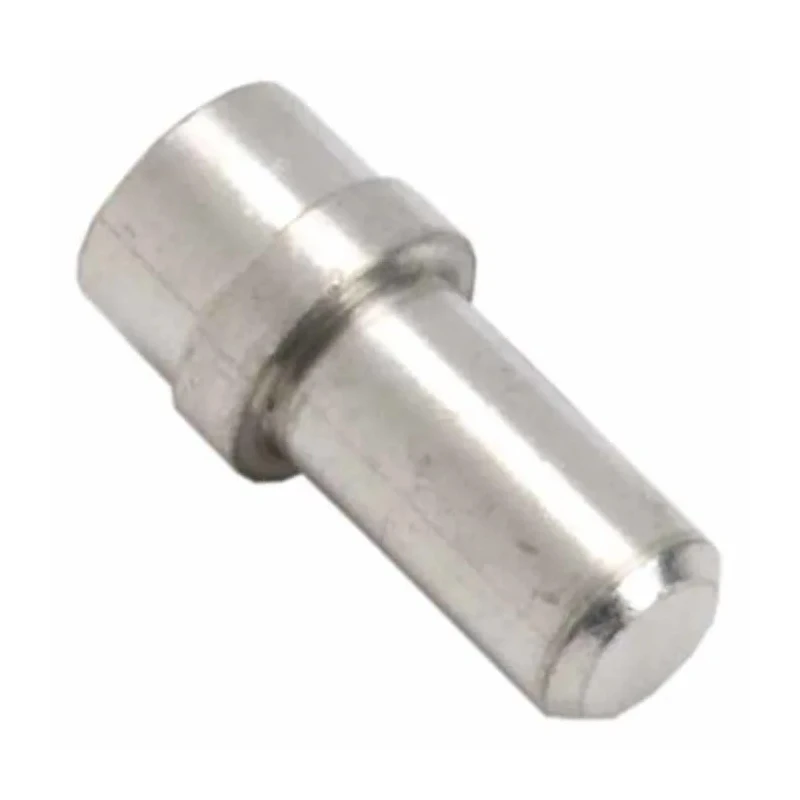

HARWIN PCB Socket Female, Straight Orientation, 10A Current, 5.65mm Length, Beryllium Copper Alloy Contact, Gold H3182-01

Free Delivery in India | Lowest Global Shipping Charges

HARWIN PCB Socket Female, Straight Orientation, 10A Current, 5.65mm Length, Beryllium Copper Alloy Contact, Gold H3182-01

Name: HARWIN PCB Socket Female, Straight Orientation, 10A Current, 5.65mm Length, Beryllium Copper Alloy Contact, Gold H3182-01
Brand: HARWIN
SKU: 217175
Price: 0.42 USD
Availability: InStock



Category Discrete Socket Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Brand	HARWIN
Orientation	Straight
Current	10A
Length	5.65mm
Model	H3182-01
Gender	Female
Housing Material	Brass
Contact Material	Beryllium Copper Alloy
Series	H3182
Contact Plating	Gold over Nickel

Key Features

The socket features a straight orientation for easy PCB integration.
It measures 5.65mm in length, suitable for compact applications.
Constructed with a beryllium copper alloy contact for excellent conductivity.
Contact surfaces are plated with gold over nickel to ensure corrosion resistance and reliable connections.
The housing is made of brass providing robust mechanical strength.
Designed for mating with pins of 1.00mm diameter using a 4-finger contact clip.
This socket withstands vibrations from 10 to 2000 Hz and 10G for 6 hours, suitable for industrial use.
Manufactured in the United Kingdom under strict quality standards.

Product Description

HARWIN H3182-01 PCB Socket is a high-quality female PCB socket designed for mating with 1.00mm diameter pins in electronic assemblies.

Featuring a straight orientation with a length of 5.65mm, it facilitates efficient PCB layout and assembly. The socket’s contacts are made from a beryllium copper alloy ensuring excellent electrical conductivity and mechanical reliability.

The contact plating uses gold over nickel, providing superior corrosion resistance and minimal contact resistance, which is critical in sensitive electronic circuits.

The brass housing offers robust mechanical support and durability, making it suitable for a range of industrial and manufacturing environments where vibration and shock resistance are essential.

This socket employs a four-finger contact clip designed to endure vibration frequencies from 10Hz to 2000Hz and withstands a 10G shock for 6 hours, ensuring secure and stable contact under demanding conditions.

The socket’s compact size and reliable construction make it ideal for electronic components requiring secure board connections. Manufactured in the United Kingdom with adherence to high quality and manufacturing standards.

Perfectly suited for use in power connectors, industrial electronics, and custom PCB assemblies. Its gold-plated contacts ensure long-lasting conductivity and resistance to oxidation. The robust brass housing offers durability and electrical insulation for safety.

Supports current capacity up to 10 amperes for moderate power applications.

Overall, the HARWIN H3182-01 is engineered to provide reliable, high-performance interconnect solutions for industrial, manufacturing, and electronic applications, ensuring durability and stable performance within PCB assemblies.
