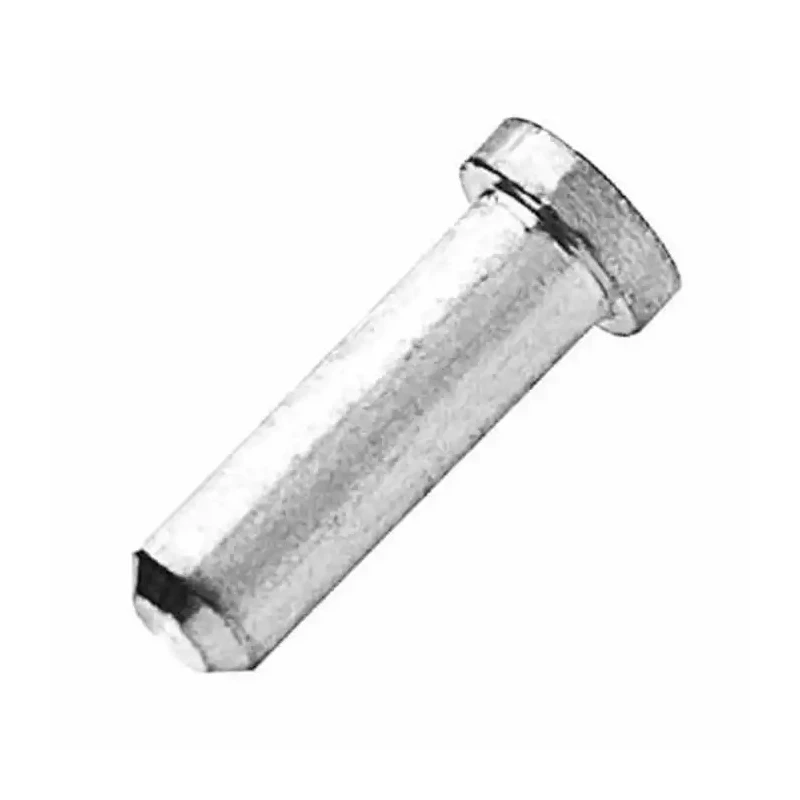

HARWIN Sub-miniature PCB Socket 2A, Female, Brass Housing, Gold over Nickel Contact Plating, Straight Orientation H3153-01

HARWIN H3153-01 is a sub-miniature printed circuit board (PCB) socket designed to provide secure and efficient female connections for mating pins with a diameter of 0.5 mm. This socket supports a continuous current rating of 2A and features a straight orientation making it ideal for various compact electronic assembly applications.

The socket's contacts are fabricated from a high-quality beryllium copper alloy, which is gold plated over nickel to enhance the contact reliability and corrosion resistance. The housing is constructed of brass, providing mechanical strength and good conductivity, essential for industrial and laboratory electromechanical assemblies.

Termination is by pin type, suitable for robust PCB integration. It employs a 4-finger beryllium copper contact clip from Datamate, known for its superior vibration resistance capabilities, tolerating vibrations from 10 to 2,000 Hz at an acceleration of 10G for 6 hours, ensuring long-term reliability in demanding conditions.

With a compact length measurement of 3.61 mm, this PCB socket suits space-limited designs and advanced electronic circuits. Manufactured in the United Kingdom, it complies with the high standards of quality and durability expected in electronics manufacturing, laboratory setups, and other industrial uses.

This socket is widely used in electronic components, power connectors, and discrete socket applications where dependable and durable connections are essential. Its specialized design supports applications in industrial machinery, telecommunications, instrumentation, and other technical domains requiring high-performance PCB connectors.

The socket features a brass housing ensuring durability and good conductivity. Contacts are made from beryllium copper alloy with gold over nickel plating for enhanced corrosion resistance. Designed with a straight orientation and pin termination type for easy PCB mounting.

Utilizes a 4-finger beryllium copper contact clip from Datamate, offering vibration resistance from 10 to 2,000 Hz at 10G for 6 hours. Compact length of 3.61 mm suits sub-miniature electronic designs. Manufactured in the United Kingdom, meeting industrial quality standards.

Ideal for electronics manufacturing, power and connectors applications requiring reliable discrete socket connectivity. Explore more products in the Discrete Sockets category for reliable PCB connector solutions at EnvMart.
