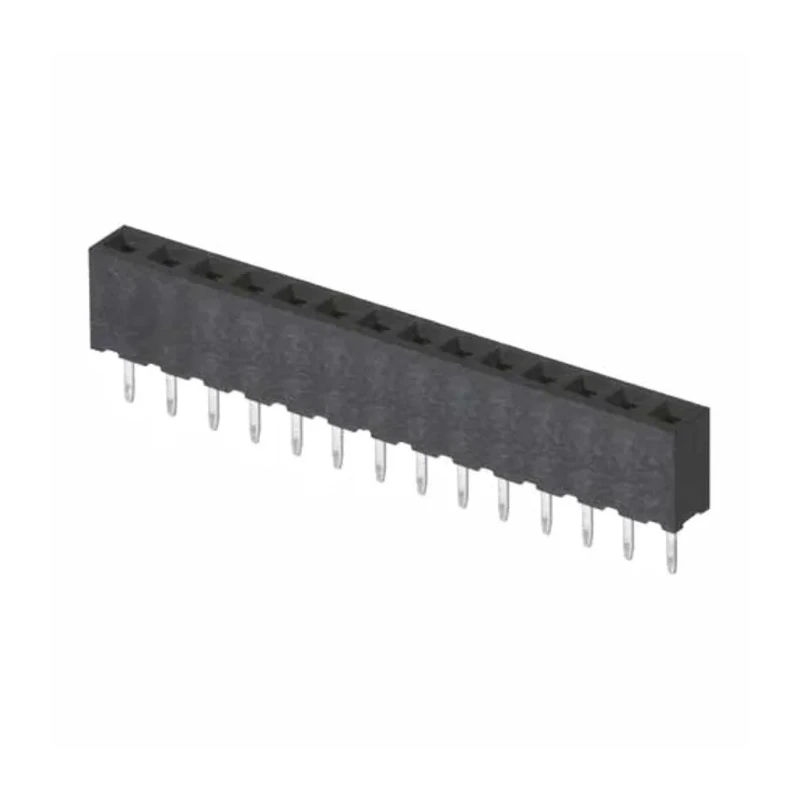

HARWIN M22 Series Straight Through Hole PCB Socket 14-Contact 1 Row 2 mm Pitch 12A Solder M22-7131442
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-7131442 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold, Tin over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Operates at 12A current with 500V voltage rating.
- Features Liquid Crystal Polymer housing for durability and heat resistance.
- Contact material is bronze with gold and tin over nickel plating for reliable conductivity.
- Designed for operating temperature range from -25°C to 105°C.
- Single row 14-contact configuration supports compact PCB layouts.
- Straight orientation with through-hole mount provides mechanical stability.
- Board-to-board connector system simplifies circuit board interconnection.
- Manufactured in Taiwan, Province Of China.
Product Description
HARWIN M22-7131442 is a high-quality PCB Socket from the M22 Series featuring 14 contacts arranged in a single row with a 2 mm pitch designed for straight through hole solder mounting. It is suitable for board-to-board connection systems with a robust design that supports a current of 12A and voltage up to 500V.
The socket housing is made from Liquid Crystal Polymer material, providing excellent durability, chemical resistance, and high operating temperature tolerance ranging from -25°C to 105°C. The contact pins are crafted from bronze with a gold finish on the contact area and tin finish on the termination to ensure reliable electrical connectivity and corrosion resistance.
This PCB socket is used widely in electronics manufacturing and assembly for ensuring stable electrical connections on printed circuit boards. It supports industrial applications where durability and performance consistency are critical. The single row, 14-contact configuration optimizes PCB space and allows effective interconnection between boards.
The design supports through-hole mounting which offers enhanced mechanical fixation and electrical stability compared to surface mount options. Its straight orientation aligns with standard PCB designs enabling easy integration into assembly lines.
Operates at 12A max current and 500V voltage rating. Liquid Crystal Polymer housing for high durability and heat tolerance. Bronze contacts plated with gold and tin over nickel for corrosion resistance. Operational temperature range from -25°C up to 105°C.
Single row with 14 contacts and 2 mm pitch for compact PCB design. Straight orientation with through-hole solder termination. Board-to-board connector system ideal for industrial and electronics applications. Manufactured in Taiwan, Province Of China ensuring quality standards.
This product is part of EnvMart's comprehensive PCB Sockets category, offering reliable connectivity solutions for electronics and electrical applications. Explore more connectors and PCB components to optimize your manufacturing and assembly processes.
