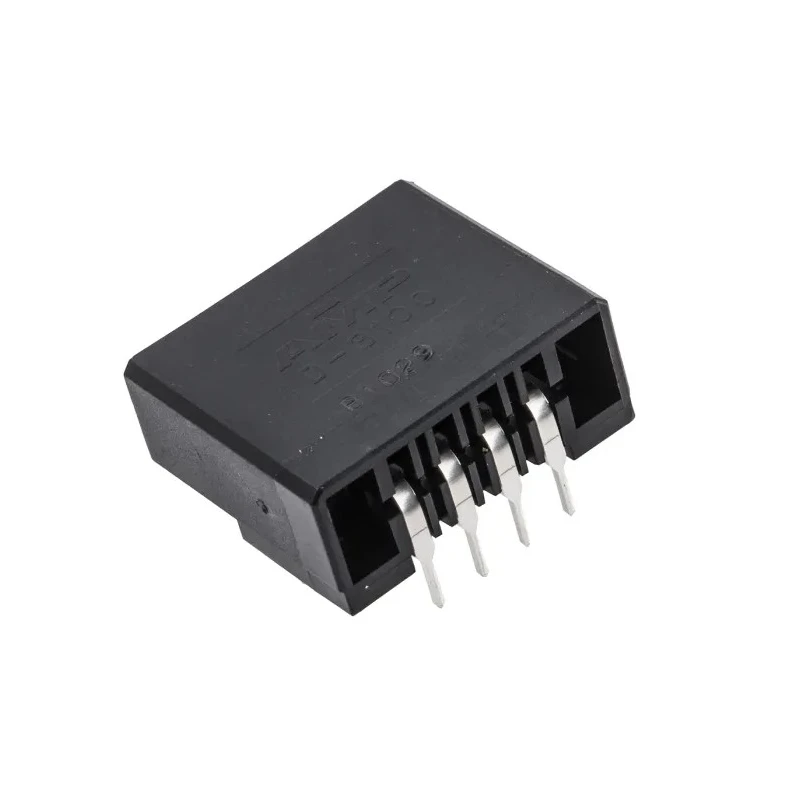

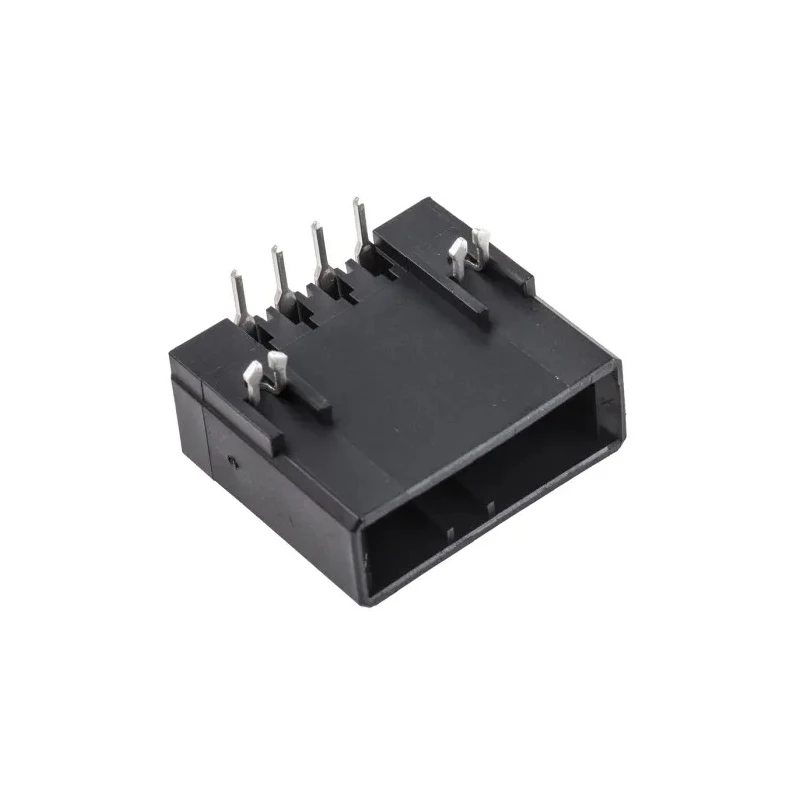

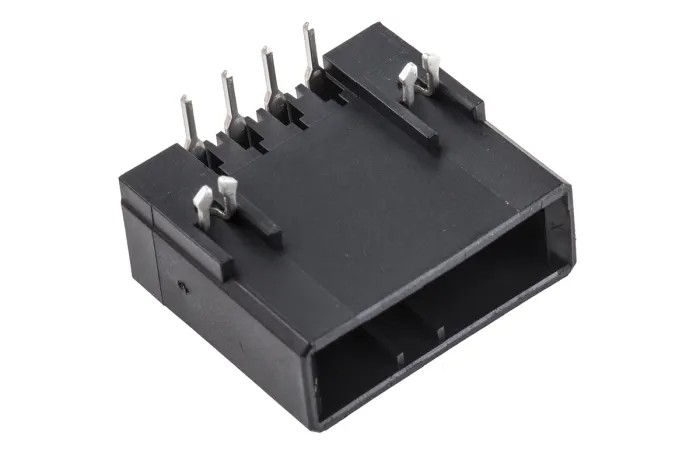

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header, 4 Contacts, 3.81 mm Pitch, 1 Row 1-178294-2

TE Connectivity 1-178294-2 Dynamic 3000 Series Right Angle Through Hole PCB Header is engineered for secure and efficient wire-to-board connections in various electronic assemblies. It offers a robust solution featuring 4 male contacts in a single row with a precise 3.81 mm pitch, making it ideal for applications requiring reliable electrical performance.

The connector housing is made from durable glass filled polyester that provides excellent insulation and mechanical strength. Its right angle orientation combined with a shrouded design enhances connection stability and protection against accidental disconnections or damage during handling.

The contacts are crafted from copper alloy and finished with gold plating to ensure low contact resistance and high resistance to corrosion over long service life. The device supports 8 amps of continuous current carrying capacity and withstands voltage up to 250 V, suitable for a range of power and signal transmission needs.

Designed for through hole solder termination, the header integrates securely onto printed circuit boards, supporting PCB thicknesses from 1.0 to 1.6 mm as recommended. Operating temperature ranges from -55°C to 105°C accommodate tough industrial environments.

Applications for this PCB header include industrial automation, telecommunications equipment, instrumentation, and other electrical and electronic manufacturing sectors requiring dependable, high-quality connectors with compact footprint.

Constructed from glass filled polyester housing for robustness and insulation. Single row with 4 male contacts, 3.81 mm pitch spacing. Gold plated copper alloy contacts optimize conductivity and durability. Right angle shrouded design ensures mechanical stability.

Solder termination type for through hole PCB mounting. Rated for 8A current and 250V operating voltage. Wide operating temperature range from -55°C to 105°C. Manufactured in Japan following rigorous quality standards.

This product is part of the trusted TE Connectivity Dynamic 3000 series known for quality and performance in demanding electronic component applications. Leverage EnvMart’s extensive catalog to explore compatible connectors and components for your projects.
