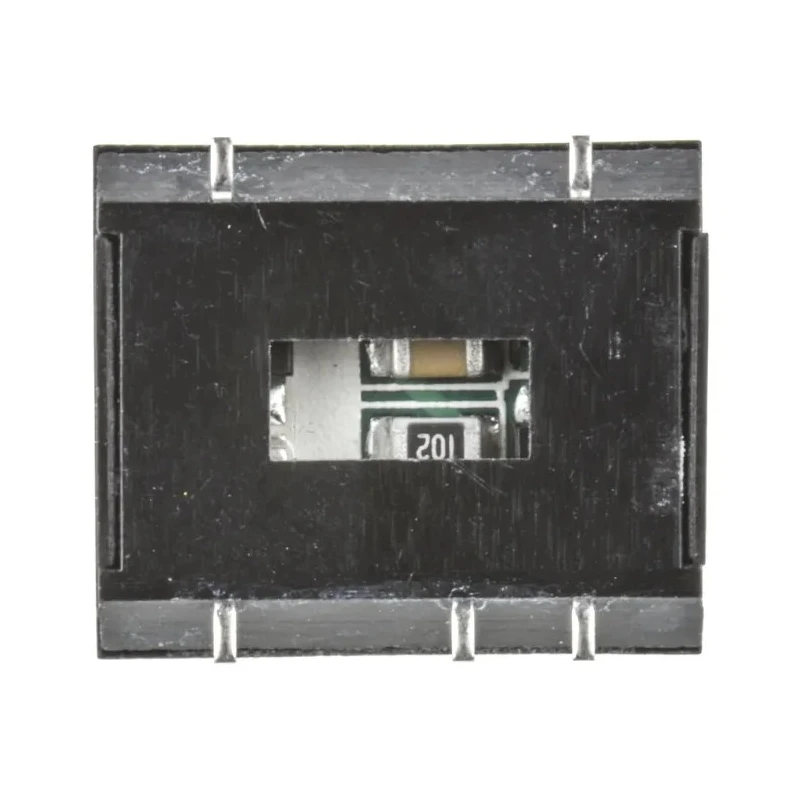

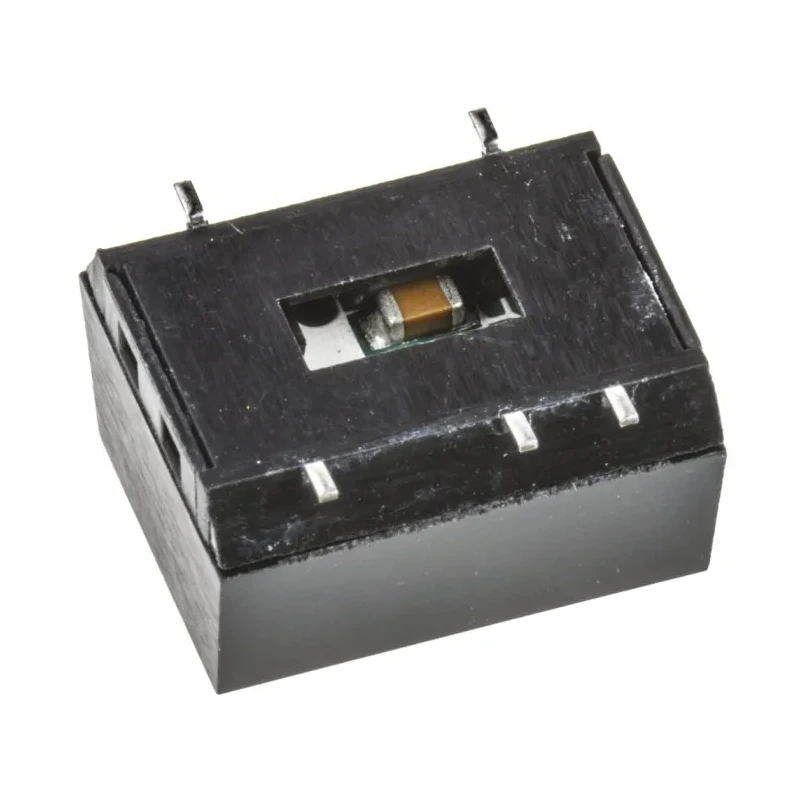

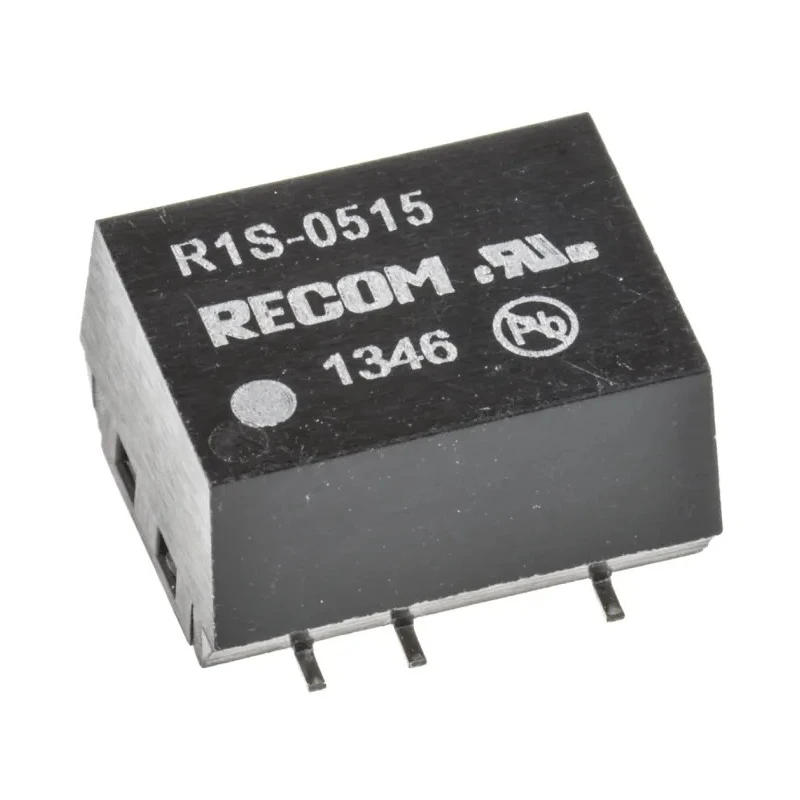

Recom 1W Surface Mount DC/DC Converter 15V DC Output 66mA 4.5 - 5.5V Input R1S-0515

Recom R1S-0515 is a 1 watt DC/DC converter featuring a surface mount package designed for efficient power conversion in electronic components. It delivers an output voltage of 15 V DC with a maximum output current of 66 mA. The input voltage range is flexible, operating between 4.5 V and 5.5 V DC. This product supports industrial applications requiring stable, isolated DC power conversion with an isolation voltage rating of 1kV DC. Its high efficiency of 82% reduces energy loss, and it includes short circuit protection for reliability.

The device operates reliably in extreme temperature conditions from -40°C up to 100°C, suitable for industrial, laboratory, and embedded control systems. The compact 8-pin surface mount package, measuring 12.75 mm by 10.7 mm by 6.7 mm, enables easy integration on printed circuit boards with limited space. Its long MTBF rating of over 4 million hours makes it ideal for continuous operation in critical environments.

Applications include power supplies for electronic instrumentation, microcontroller systems, telecommunications, and other low power isolated DC-DC conversion needs in industrial automation and electronic design. The converter complies with UL 60950-1 standards and is UL recognized with CB and CSA approvals, ensuring certified safety and quality.

Compact surface mount form factor for PCB assembly. Isolated DC output suitable for noise sensitive electronics. Wide temperature range for harsh environmental conditions. High reliability with MTBF over 4 million hours.

Short circuit protection for system safety. Low power dissipation with 82% efficiency. Certification for industrial standard safety compliance. Suitable for embedded and industrial electronic applications. Stable output voltage for sensitive electronics.

Robust construction made in Taiwan ensuring consistent quality.

This Recom R1S-0515 DC/DC Converter is a trusted component in power management solutions, delivering stable isolated power conversion in a compact surface mount design. Explore more electronic components and power conversion solutions at EnvMart.
