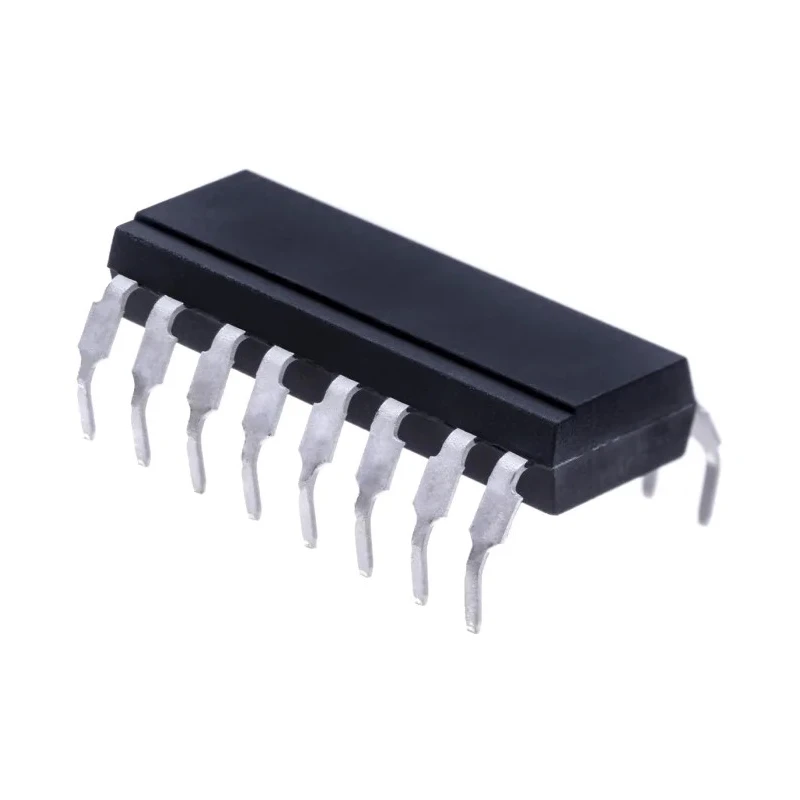

Isocom DC Input 4-Channel Optocoupler Through Hole 16-Pin DIP TLP521-4GB

Isocom TLP521-4GB is a DC input 4-channel optocoupler designed for through-hole mounting with a 16-pin DIP package.

Each channel integrates a Gallium Arsenide infra-red emitting diode and a silicon phototransistor, providing electrical isolation and signal transmission with high reliability. The device supports a maximum forward voltage of 1.3 V and can withstand input currents up to 50 mA.

Its fast switching capabilities are supported by typical rise and fall times of 4μs and 3μs respectively, making it suitable for various electronic isolation applications. Operating temperature ranges from -30°C to 100°C with an isolation voltage rating of 5300 Vrms ensure robust performance in demanding environments.

The series complies with UL standards to meet safety and regulatory requirements. It is packaged in tubes for easy handling and mounting in electronic circuits. Applications for the TLP521-4GB include industrial control systems, data communication isolation, signal switching, and interfacing in automation equipment.

Contains four independent optocoupler channels for signal isolation. Utilizes a Gallium Arsenide infra-red emitting diode and silicon phototransistor per channel. Features a maximum input current of 50 mA and maximum forward voltage of 1.3 V.

Typical rise and fall times of 4μs and 3μs ensure quick response. Operates over a temperature range from -30°C to 100°C with high isolation voltage of 5300 Vrms. Complies with UL standards ensuring safety and reliability.

Supplied in tube packaging suitable for through-hole mounting applications.

Choose Isocom optocouplers for reliable electrical isolation in electronic components used in industrial, laboratory, manufacturing, and automation environments. Explore the full range of Optocouplers and related components for your application requirements.
