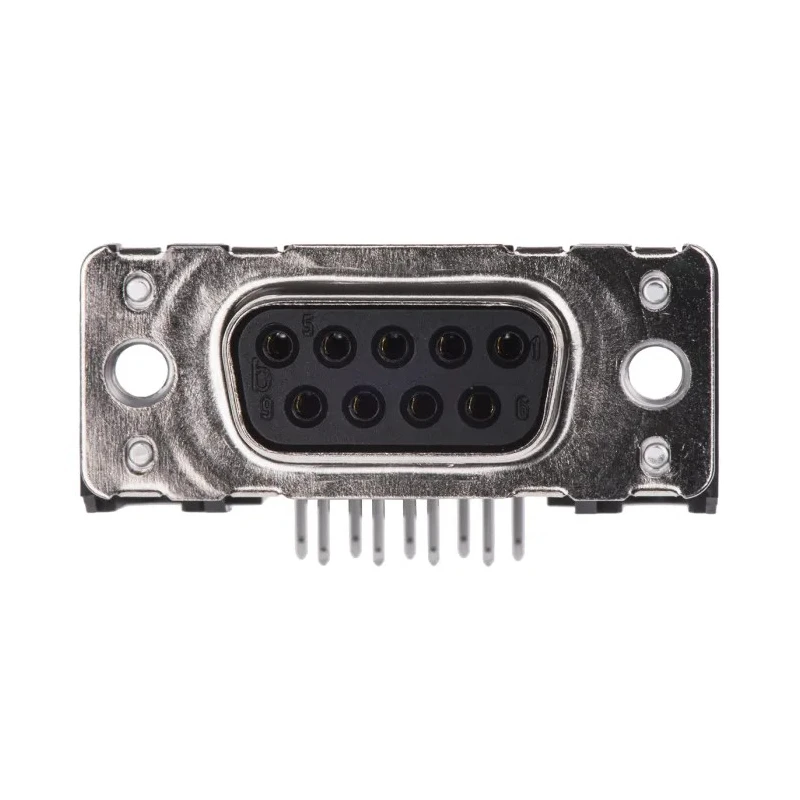

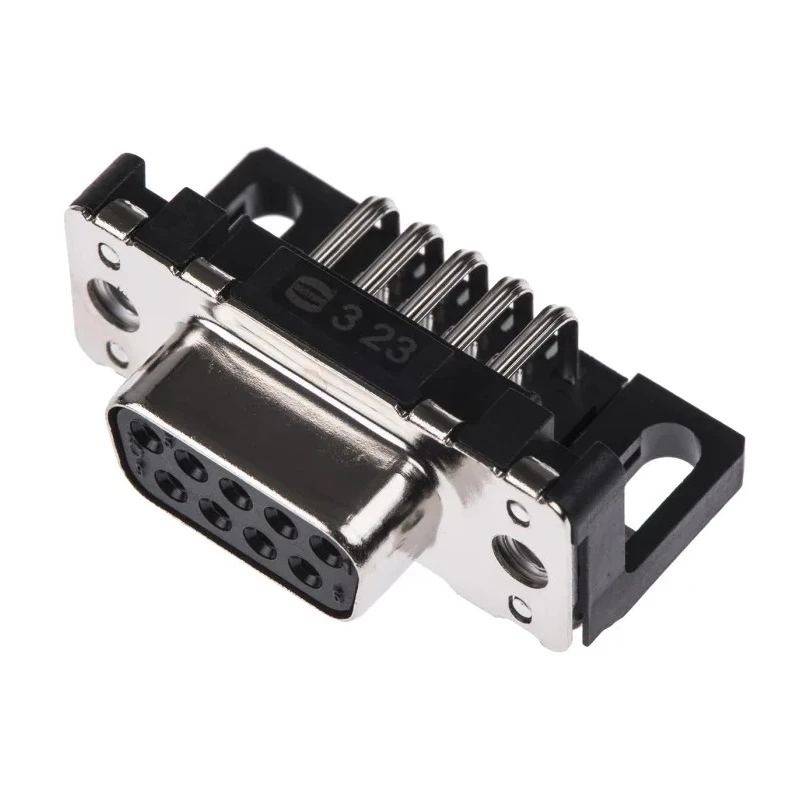

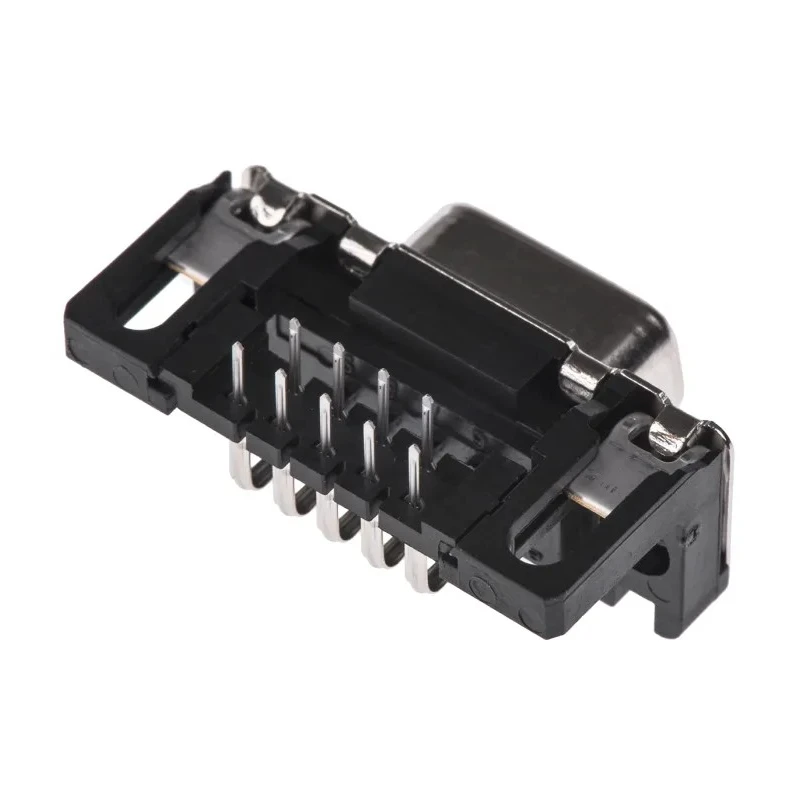

HARTING D-Sub 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female 09661127601

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female 09661127601

Name: HARTING D-Sub 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female 09661127601
Brand: HARTING
SKU: 216479
Price: 5.35 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Right Angle
Current	7.5A
Mount Type	Through Hole
Housing Material	Steel
Contact Material	Copper Alloy
Series	D-Sub
Mounting Hardware	M3 Threaded Insert
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Contact Plating	Gold
Number of Contacts	9
Contact Gender	Female
Connector Gender	Female
Connector Type D	Standard
D-Sub Shell Size	D

Key Features

The connector is designed with 9 contacts allowing stable connections.
Right angle orientation optimizes PCB space utilization.
Features a through hole mount type for secure installation.
Includes M3 threaded insert mounting hardware ensuring robust fastening.
Constructed with steel housing and gold-plated copper alloy contacts for enhanced durability and conductivity.
Supports solder termination type, facilitating reliable electrical connections.
Operates within a temperature range from -55°C to 125°C for versatile environmental conditions.
Complies with MIL-C-24308, DIN 41652, and CECC 75301-802 standards.

Product Description

HARTING 09661127601 is a high-quality D-Sub Connector featuring a 9-way right angle configuration with a 2.74 mm pitch, designed for through hole mounting in electronic assemblies. This connector integrates an M3 threaded insert for secure mounting and reliable mechanical support.

Its steel housing provides exceptional mechanical strength, while the copper alloy contacts are plated with gold to guarantee superior conductivity and resistance to corrosion. The solder termination type ensures dependable electrical connections, suitable for various PCB design requirements.

The connector is engineered to operate across a wide temperature spectrum from -55°C to 125°C, making it suitable for demanding industrial, electronic, and telecommunications applications. Its compliance with MIL-C-24308, DIN 41652, and CECC 75301-802 standards underlines its suitability for military and commercial use cases, ensuring compatibility and performance.

This product is ideal for integration in manufacturing environments, electronic test equipment, communication devices, and other industrial applications requiring reliable, precision connectors.

The connector includes 9 contacts configured in a right angle format for effective space saving. Through hole mount type with M3 threaded inserts supports stable assembly and durability. Housing made of steel and gold-plated copper alloy contact materials providing longevity and optimal electrical performance.

Termination via soldering ensures secure and consistent connectivity. Wide operational temperature range enhances versatility for harsh environments. Standards compliance ensures reliability and industry compatibility. Explore more in the D-Sub Connector category at EnvMart for your electronic component needs.
