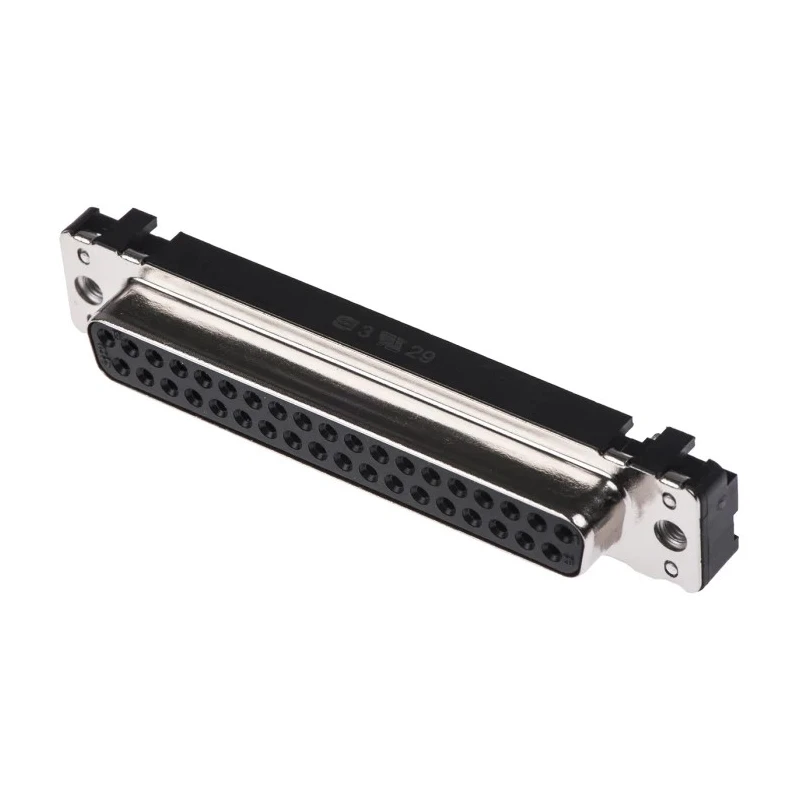

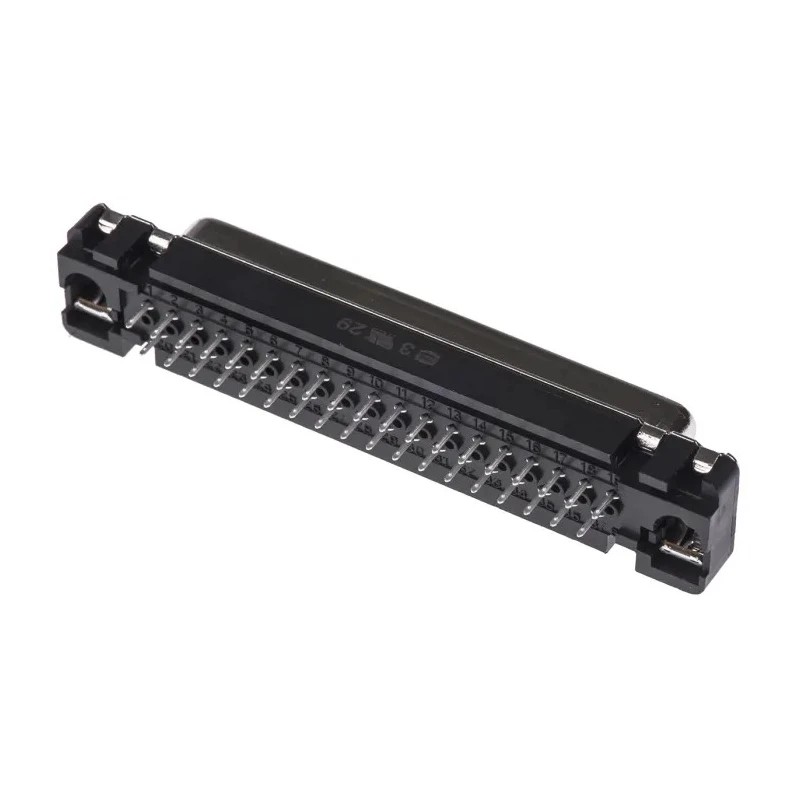

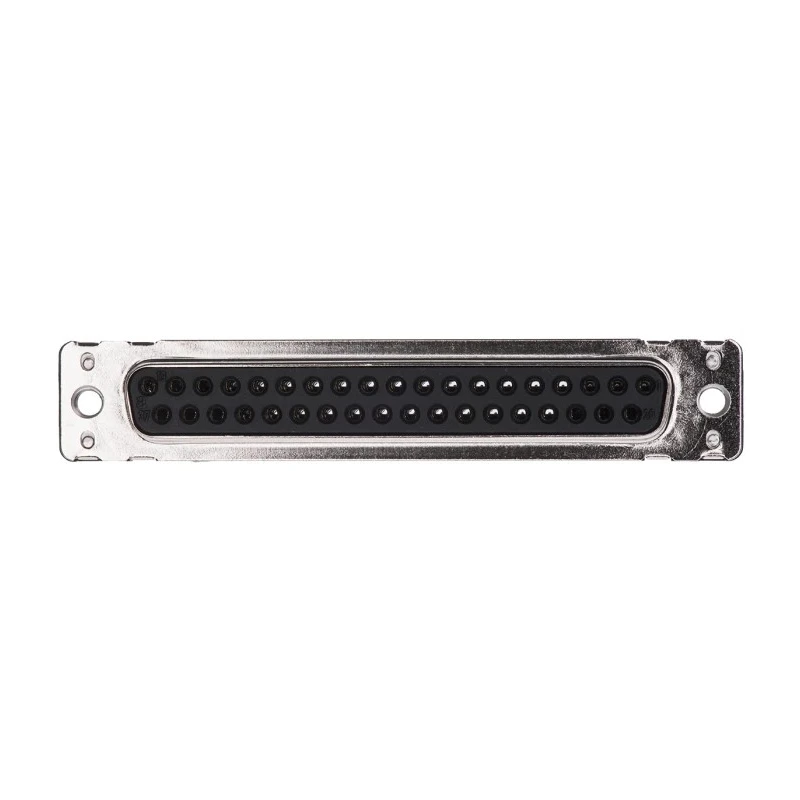

HARTING D-Sub 37 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female 09664117501
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 6.5A |
| Mount Type | Through Hole |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | M3 Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Number of Contacts | 37 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Standard |
| D-Sub Shell Size | D |
Key Features
- Features 37 female contacts with 2.76 mm pitch for precise connectivity.
- Supports a current rating of 6.5A ensuring stable electrical performance.
- Constructed with metal housing and copper alloy contacts for robustness.
- Operates reliably between -55°C and 125°C for demanding environments.
- Includes M3 threaded insert mounting hardware for secure attachment.
- Designed as a straight orientation connector with through hole mounting.
- Rated for voltage up to 1 kV meeting industrial standards.
- Compliant with MIL-C-24308, DIN 41652, and CECC 75301-802 standards.
Product Description
HARTING 09664117501 D-Sub Connector is a high-quality, 37 way straight orientation connector designed for through hole mounting on PCBs. Featuring a precise 2.76 mm pitch, it supports reliable solder termination required in industrial electronics and power connectivity. The female connector contacts are made from copper alloy enclosed in a durable metal housing, providing excellent longevity and electrical conductivity.
This connector is rated for a current of 6.5A and voltage up to 1 kV, suitable for demanding applications in electronics, power distribution, and automation systems. Its operating temperature ranges from -55°C to 125°C, enabling performance in harsh environmental conditions, including industrial, manufacturing, and laboratory settings.
The M3 threaded insert mounting hardware ensures secure and stable fixing on circuit boards, reducing mechanical stress and enhancing durability. The product complies with MIL-C-24308, DIN 41652, and CECC 75301-802 standards, indicating adherence to recognized quality and technical specifications for D-Sub connectors.
Features 37 female contacts with 2.76 mm pitch for precise connectivity. Supports a current rating of 6.5A ensuring stable electrical performance. Constructed with metal housing and copper alloy contacts for robustness. Operates reliably between -55°C and 125°C for demanding environments.
Includes M3 threaded insert mounting hardware for secure attachment. Designed as a straight orientation connector with through hole mounting. Rated for voltage up to 1 kV meeting industrial standards. Compliant with MIL-C-24308, DIN 41652, and CECC 75301-802 standards.
This connector is ideal for integration into industrial electronics, power supply assemblies, and other applications requiring high-reliability PCB connections. Its robust construction ensures durability in manufacturing and automation, supporting seamless electrical interface in electronic components and devices.
Explore additional D-Sub Connectors from the HARTING series on EnvMart for comprehensive power and signal connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 6.5A, ensuring stable electrical performance in various applications.
This connector is rated for voltage up to 1 kV, making it suitable for demanding electrical applications.
It operates reliably between -55°C and 125°C, allowing it to function in harsh environmental conditions.
This model features 37 female contacts, providing precise connectivity for various electronic applications.
It is designed for through hole mounting on PCBs, which facilitates secure installation.
The housing is made of metal, and the contacts are constructed from copper alloy, ensuring good electrical conductivity.
This connector utilizes solder termination, which is required for reliable connections in industrial electronics.
It includes M3 threaded insert mounting hardware for secure attachment to circuit boards.
It complies with MIL-C-24308, DIN 41652, and CECC 75301-802 standards, indicating adherence to recognized quality specifications.
The contacts are spaced at a pitch of 2.76 mm, allowing for precise connectivity.
This model features a straight orientation, which is standard for many applications.
The country of origin for this connector is Switzerland, indicating its manufacturing location.
