Vero Technologies 1 Matrix Board FR4 Glass Reinforced Polyester 1.6mm Thickness 1.02 mm Holes 2.54 mm Pitch 455 mm 08-40055

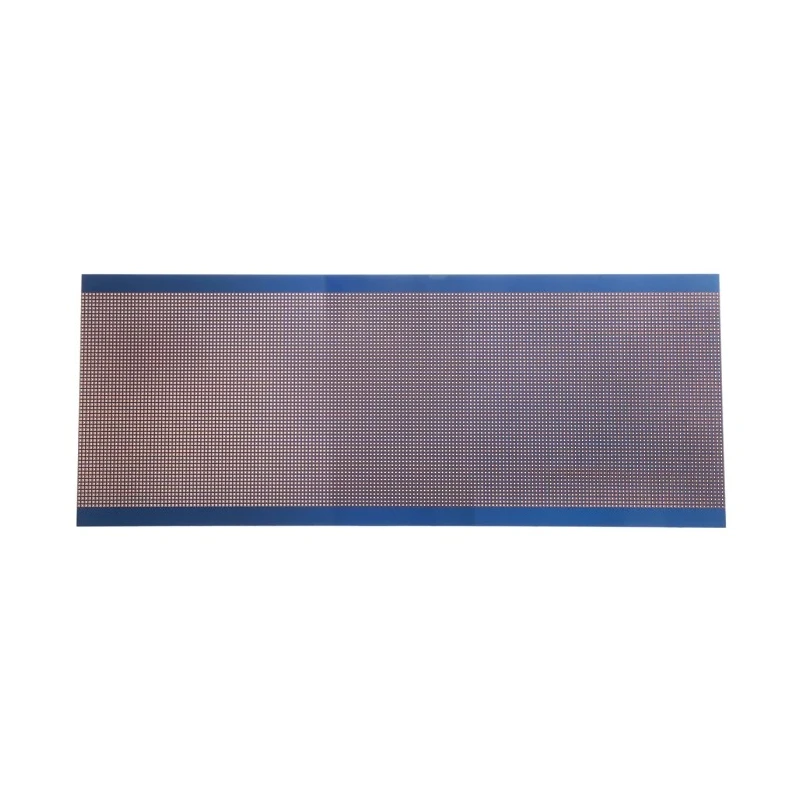

Vero Technologies 08-40055 Matrix Board FR4 is a high-quality single-sided prototyping board manufactured from glass reinforced polyester with a board thickness of 1.6 mm. It is designed to provide an optimal platform for electronic prototyping and circuit development in industrial, laboratory, educational, and manufacturing environments.

The matrix board features 1.02 mm diameter holes arranged at a 2.54 mm pitch, suitable for mounting DIP sockets and other through-hole electronic components with precision and reliability. The copper thickness on the board is 35μm, ensuring excellent electrical conductivity and durability during soldering processes.

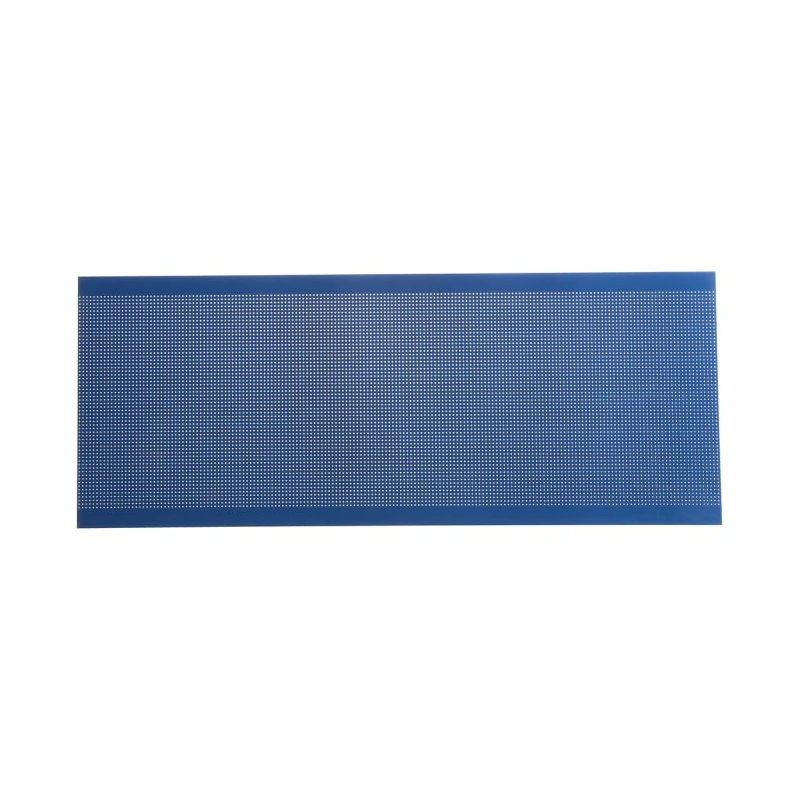

The board dimensions are 455 mm in length and 179 mm in width, providing a substantial workspace for electronic circuit assembly. The included reference grid on both sides aids in component positioning and wiring clarity, while the square pad cards on the single-sided board allow for flexible wiring by wire wrapping, supporting complex circuit layouts with maximum density.

This matrix board adheres to DIN 41494 (KM6-II) standards, guaranteeing industrial-grade performance and quality assurance. Its robust construction from FR4 material makes it an ideal choice for prototyping in applications such as electronic manufacturing, laboratory experiments, automotive electronics, telecommunications, and educational projects.

The board is constructed from durable FR4 glass reinforced polyester for high mechanical strength. It has a copper thickness of 35μm ensuring reliable electrical connections. The 1.02 mm holes are spaced at a 2.54 mm pitch, ideal for standard DIP socket mounting.

Single-sided design with square pad cards allows for flexible wiring by wrapping. Reference grid on both sides facilitates wiring and component placement. Complies with DIN 41494 (KM6-II) standards ensuring quality and compatibility.

Measures 455 mm length and 179 mm width, offering ample prototyping area. Designed for industrial and laboratory PCB prototyping and electronic assembly applications. Originates from the United Kingdom, ensuring high manufacturing standards.

This product is suitable for engineers, technicians, researchers, and hobbyists involved in electronic circuit prototyping and testing. EnvMart offers this precise and reliable Vero Technologies Matrix Board for various electronics prototyping needs.
