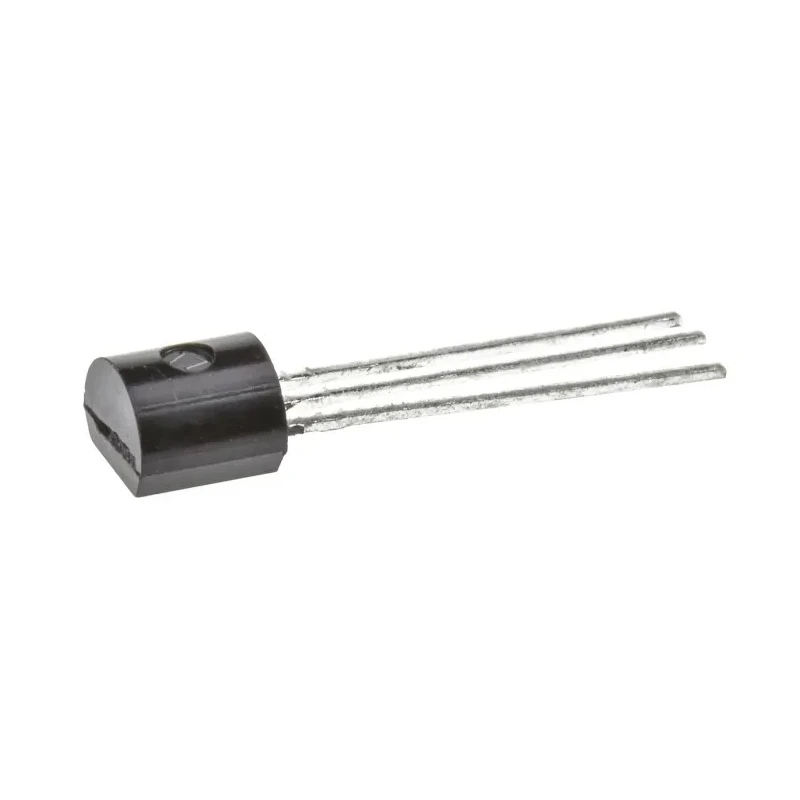

STMicroelectronics MCP9509CT Series Voltage Output Temperature Sensor Through Hole Mount Analogue ±5°C 3-Pin TO-92 MCP9509CT
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±5°C |
| Brand | STMicroelectronics |
| Height | 5.03mm |
| Length | 5mm |
| Model | MCP9509CT |
| Width | 3.7mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | MCP9509CT |
| Maximum Operating Temperature | 100°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 3.04V |
| Minimum Supply Voltage | 2.92V |
| Sensor Gain | 10mV/K |
Key Features
- Designed for through hole mounting to ensure secure placement on PCBs.
- Operates effectively within -40°C to 100°C temperature range.
- Requires supply voltage between 2.92V and 3.04V for optimal performance.
- Offers sensor gain of 10mV/K providing a linear output proportional to absolute temperature.
- RoHS compliant and manufactured in China adhering to environmental standards.
- Compatible for use in environmental monitoring, industrial instrumentation, and consumer electronics.
- Analogue interface enables easy integration with various electronic systems.
Product Description
STMicroelectronics MCP9509CT is a voltage output temperature sensor featuring an analogue interface and precise temperature measurement with ±5°C accuracy. Packaged in a compact 3-pin TO-92 through hole mount, this sensor is suited for installation on printed circuit boards requiring stable and linear temperature sensing.
The device operates reliably within a temperature range of -40°C to 100°C, and works with a supply voltage between 2.92V and 3.04V, making it appropriate for low voltage electronic circuits.
The MCP9509CT sensor has a sensor gain of 10mV/K, providing a linear voltage output proportional to absolute temperature, simplifying temperature measurement implementation. Its small form factor with dimensions of 5mm length, 3.7mm width, and 5.03mm height enables its deployment in applications with limited space availability.
This component adheres to RoHS standards and is manufactured in China, ensuring compliance with regulatory requirements. Its through hole mount design offers ease of assembly and mechanical stability in various industrial and laboratory environments.
Through hole mounting for reliable PCB integration. Wide temperature operating range from -40°C to 100°C. Low voltage supply compatible (2.92V to 3.04V). Linear voltage output proportional to temperature with 10mV/K gain.
Compact TO-92 package dimensions. RoHS compliant for environmental safety. Suitable for environmental monitoring, industrial sensors, and consumer electronics temperature sensing. Analogue output enabling easy signal processing.
The MCP9509CT series sensor is widely used in industrial machines & instruments, laboratory instruments, commercial HVAC systems, and manufacturing processes requiring temperature monitoring and control. Users can integrate this sensor to achieve efficient environmental data acquisition and system feedback.
Explore more modern Temperature Sensor solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9509CT operates effectively within a temperature range of -40°C to 100°C.
It requires a supply voltage between 2.92V and 3.04V for optimal performance.
This model offers a voltage output that is linear and proportional to absolute temperature, with a sensor gain of 10mV/K.
The sensor has dimensions of 5mm in length, 3.7mm in width, and 5.03mm in height.
It is designed for through hole mounting, ensuring secure placement on printed circuit boards (PCBs).
The accuracy of this sensor is ±5°C.
This model utilizes an analogue interface, allowing for easy integration with various electronic systems.
Yes, it is RoHS compliant, adhering to environmental safety standards.
It is suitable for environmental monitoring, industrial instrumentation, and consumer electronics temperature sensing.
The MCP9509CT features a pin count of 3.
This temperature sensor is packaged in a compact TO-92 form factor.
It is manufactured in China, ensuring compliance with regulatory requirements.
