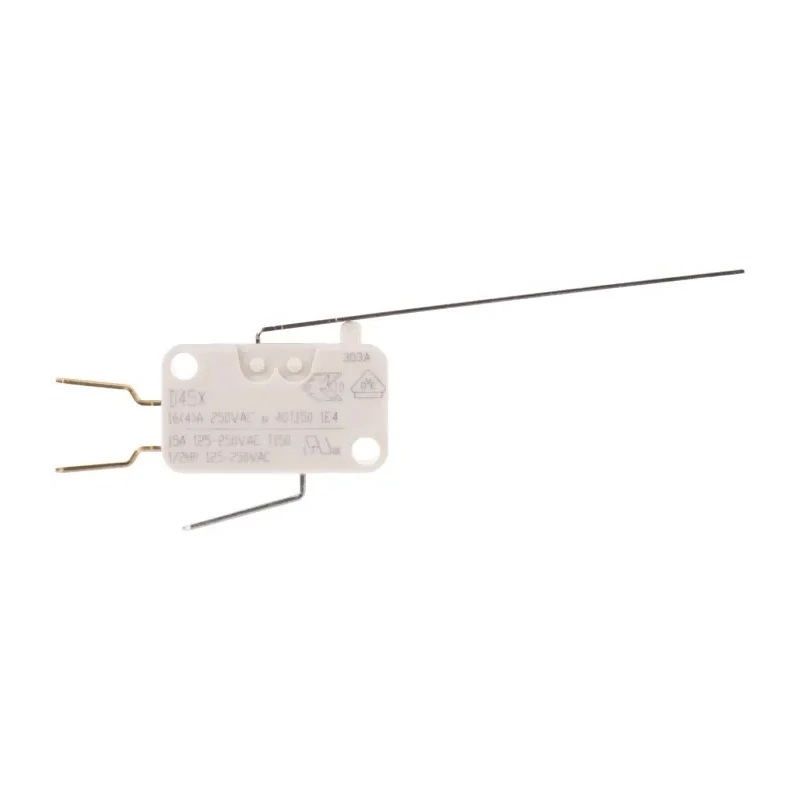

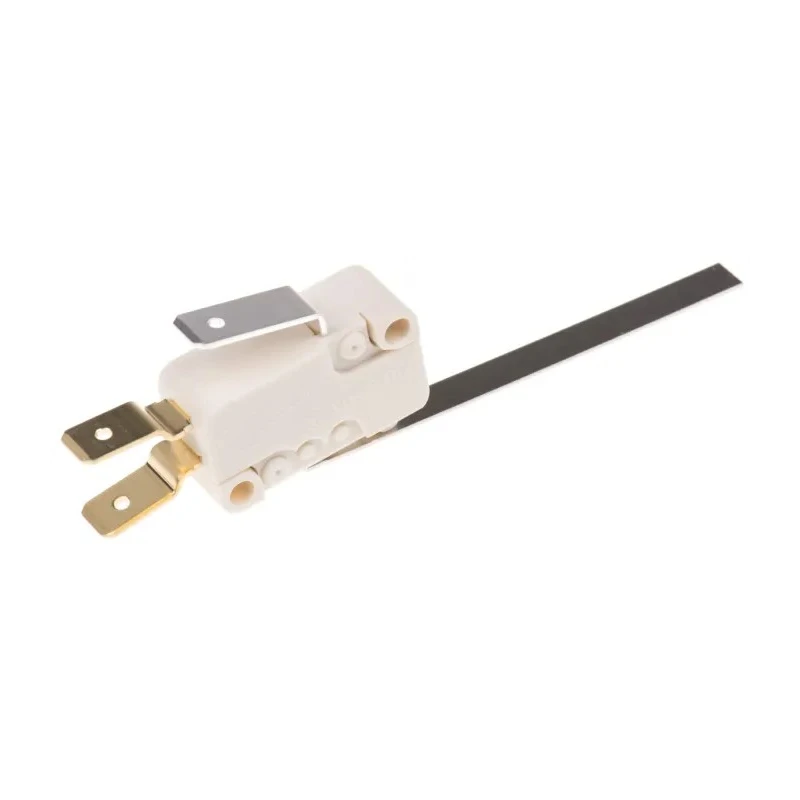

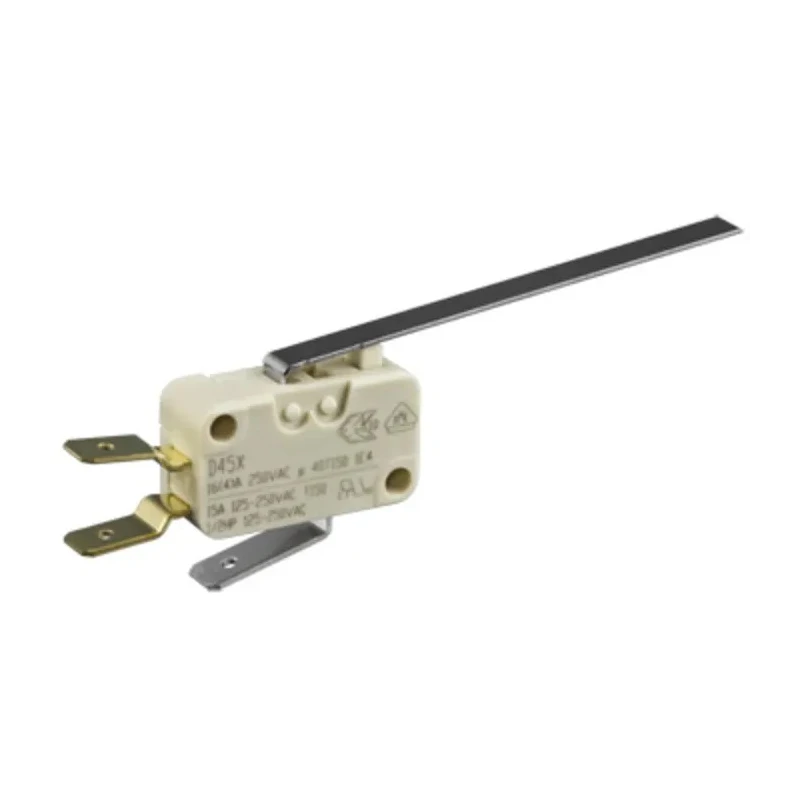

ZF Long Leaf Lever Micro Switch, Tab Terminal, 16A, 250 V AC, SPDT (NO/NC), IP40
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Length | 27.8mm |
| Model | IP40 |
| Depth | 10.3mm |
| IP Rating | IP40 |
| Width | 19mm |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Series | D4 Miniature |
| Maximum Operating Temperature | 150°C |
| Contact Configuration | SPDT (NO/NC) |
| Actuator Type | Long Leaf Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS, IEC 61058-1 / UL 61058-1 |
| Switch Contact Current | 16A |
| Operating Force | 0.216N |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- Long leaf lever actuator for precise control and operation.
- Tab terminal type allowing secure and easy electrical connections.
- Compact miniature switch measuring 27.8mm length, 19mm width, and 10.3mm depth.
- Operating temperature range from -40°C to 150°C suitable for diverse environments.
- Housing constructed from durable polyamide and polyethylene terephthalate materials.
- Operating force is minimal at 0.216N, providing sensitive actuation.
- Certified to RoHS and IEC 61058-1 / UL 61058-1 standards ensuring quality and safety.
- SPDT configuration allows single pole double throw switching with normally open and normally closed contacts.
Product Description
The ZF D45U-V3LL Long Leaf Lever Micro Switch is a high-quality miniature switch designed for industrial, electrical, and automation applications. Featuring a long leaf lever actuator, this micro switch provides precise, reliable actuation with an operating force of only 0.216N.
Its contact configuration is SPDT (Single Pole Double Throw) with both normally open (NO) and normally closed (NC) contacts, rated for 16A current at 250 volts AC. The switch is built with a robust housing made of polyamide and polyethylene terephthalate for enhanced durability and resistance to various environmental conditions.
Compact dimensions of 27.8 mm in length, 19 mm in width, and 10.3 mm in depth make it ideal for integration into space-constrained electrical and control panels. The operating temperature range extends from -40°C to +150°C, allowing usage across diverse industrial environments where temperature resilience is essential.
This micro switch meets RoHS compliance and conforms to IEC 61058-1 and UL 61058-1 standards to ensure electrical safety and reliability. IP40 ingress protection safeguards the internal components against solid objects larger than 1 mm, making it suitable for protected environments.
The switch is applicable in control systems, safety interlocks, automation equipment, and various other industrial and commercial electrical switching uses. Its long leaf lever mechanism offers fine tactile feedback and durability over mechanical life exceeding 2×10⁷ cycles.
Long leaf lever actuator for precise control. Tab terminal for secure electrical connection. 16A contact current rating at 250 V AC. Robust polyamide and polyethylene terephthalate housing materials. Operating temperature range: -40°C to 150°C.
Compact dimensions allow versatile installation. Certified to international RoHS and UL standards. SPDT contact configuration with NO and NC contacts. Explore EnvMart's wide range of Micro Switches and electrical components for your industrial, automation, and electrical system needs.
