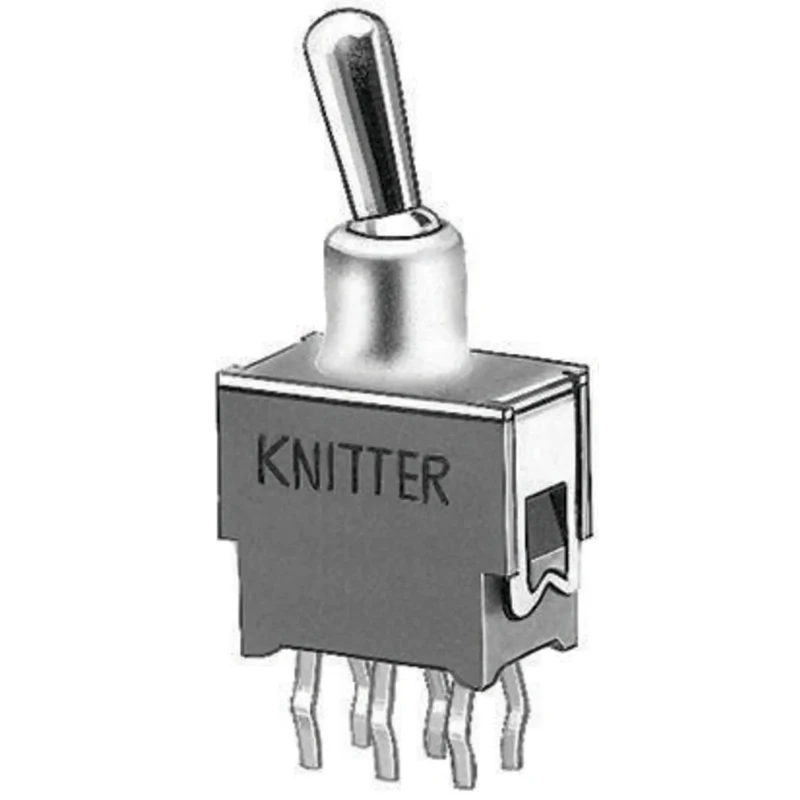

KNITTER-SWITCH Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 48V AC ATE2D
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | ATE2D |
| Mount Type | PCB |
| Series | ATE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Switch Configuration | SPDT, DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 6mm |
| Switch Contact Current | 50mA |
| Mechanical Life | 60000Operations |
| Contact AC Voltage | 48V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit control.
- Rated contact current of 50mA suitable for low-power applications.
- Through hole terminal type designed for secure PCB mounting.
- Nickel plated brass actuator enhances durability and corrosion resistance.
- Mechanical life of 60,000 operations ensures long-term reliability.
- Operates safely within temperature range of -20°C to 80°C.
- SPDT and DPDT switch configurations available in the ATE series.
- Complies with RoHS standards for environmental safety.
Product Description
KNITTER-SWITCH ATE2D is a high-quality toggle switch designed for PCB mounting with a robust On-On double pole, double throw (DPDT) switching operation. Rated for 48 V AC contact voltage and 50mA contact current, this switch suits various industrial, electronic, and automation systems where reliable switching is critical.
The switch features a nickel-plated brass actuator that offers enhanced durability and resistance to mechanical wear. It is housed in a PBT washable case and benefits from an insulation resistance greater than 500 MΩ at 250 Vdc. The actuator length is precisely 6mm, making it suitable for compact PCB designs.
With a mechanical life of 60,000 operations, the ATE2D toggle switch provides exceptional longevity, reducing maintenance and downtime. The device operates efficiently under a wide temperature range from -20°C up to 80°C, allowing use in diverse environments.
This switch conforms to RoHS environmental standards, ensuring it meets required compliance for safe use in modern electronic assemblies. Its through-hole terminal design allows for secure PCB mounting, facilitating reliable electrical contact.
Double Pole Double Throw (DPDT) configuration enables flexible circuit control. 50mA contact current rating suitable for low-power control circuits. Nickel plated brass actuator material for corrosion resistance and durability.
Robust switching mechanism with 60,000 mechanical operations lifespan. Wide operating temperature range from -20°C to 80°C. Compliance with RoHS for environmental safety. Compact actuator length of 6mm supports space-efficient PCB assembly.
This toggle switch is ideal for use in electronics manufacturing, automation systems, control panels, and laboratory instruments. Its reliable switching and compliance make it a trusted component for professional applications.
Explore the full range of Toggle Switches at EnvMart, designed to meet demanding industrial and electronic requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control.
This model has a rated contact current of 50mA, making it suitable for low-power applications.
The maximum operating temperature for this switch is 80°C, allowing it to function effectively in various environments.
It is designed for PCB mounting with a through-hole terminal type, ensuring secure installation on printed circuit boards.
The mechanical life of this toggle switch is rated at 60,000 operations, providing long-term reliability.
The actuator is made of nickel-plated brass, which enhances durability and corrosion resistance.
The switch has an insulation resistance greater than 500 MΩ at 250 Vdc, ensuring effective electrical isolation.
The ATE series offers both Single Pole Double Throw (SPDT) and Double Pole Double Throw (DPDT) switch configurations.
The actuator length is precisely 6mm, making it suitable for compact PCB designs.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements for modern electronic assemblies.
The contact AC voltage rating for this switch is 48V AC, suitable for various industrial and electronic applications.
The minimum operating temperature for this toggle switch is -20°C, allowing it to function in low-temperature environments.
