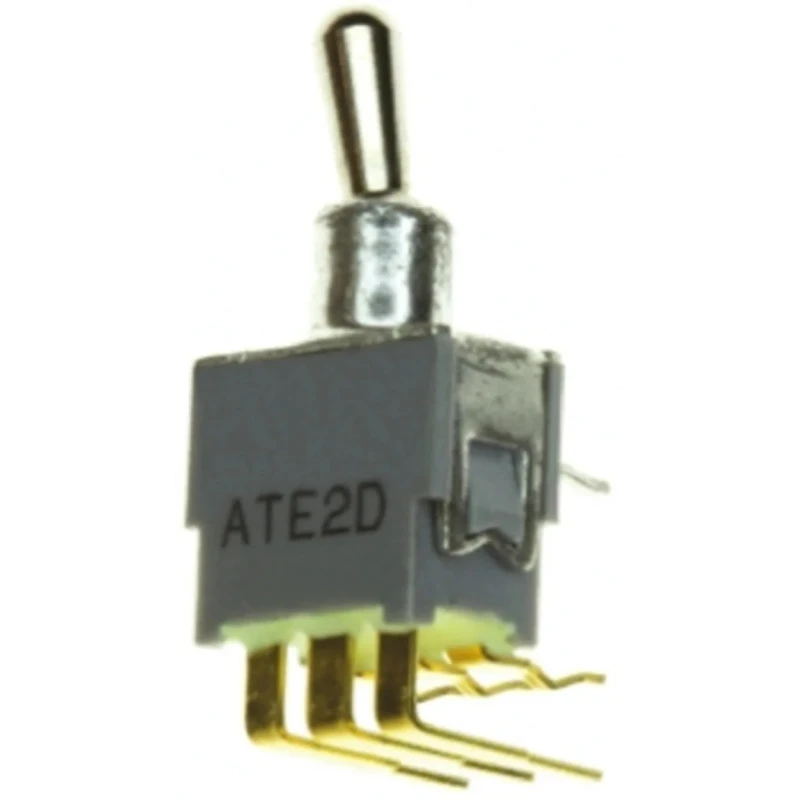

KNITTER-SWITCH Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 48V AC ATE2D-RA
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | ATE2D-RA |
| Mount Type | PCB |
| Series | ATE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Switch Configuration | SPDT, DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 6mm |
| Switch Contact Current | 50mA |
| Mechanical Life | 60000Operations |
| Contact AC Voltage | 48V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- DPDT contact configuration allows double pole double throw switching.
- PCB mounting with through hole terminals for secure connection.
- Switch operation type is On-On providing two switching positions.
- Maximum contact current of 50mA suitable for low power circuits.
- Chrome plated brass actuator with 6mm length ensures durability.
- RoHS compliant with mechanical life of 60000 operations.
- Operates within temperature range of -20°C to 80°C.
- Nickel-plated brass metal parts and PBT washable case for reliable insulation.
Product Description
KNITTER-SWITCH ATE2D-RA is a high-quality toggle switch designed for PCB mounting applications requiring On-On DPDT switching function with through hole terminals. It operates at an AC contact voltage of 48V with a maximum contact current of 50mA, making it suitable for signal and control circuits in industrial and electronic automation systems.
The switch features a durable chrome plated brass actuator of 6mm length, housed in a PBT washable case with nickel-plated brass metal parts, ensuring long-lasting mechanical and electrical performance. It complies with RoHS environmental standards and provides a robust mechanical life of up to 60000 operations.
Operating temperature range from -20°C to 80°C allows reliable use in various environmental conditions. The insulation resistance exceeds 500 MΩ at 250 Vdc, providing excellent electrical isolation and safety for sensitive electronic circuits.
This toggle switch is ideal for use in industrial automation equipment, electronic control panels, laboratory instrumentation, and other electrical devices requiring a compact, reliable double pole double throw switching mechanism with PCB mounting capability.
DPDT contact configuration allows double pole double throw switching. PCB mounting with through hole terminals for secure connection. Switch operation type is On-On providing two switching positions. Maximum contact current of 50mA suitable for low power circuits.
Chrome plated brass actuator with 6mm length ensures durability. RoHS compliant with mechanical life of 60000 operations. Operates within temperature range of -20°C to 80°C. Nickel-plated brass metal parts and PBT washable case for reliable insulation.
Sets the industry standard for reliable Toggle Switching in compact PCB mounted applications. Explore the wide range of switches and electronic components available at EnvMart for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KNITTER-SWITCH ATE2D-RA features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching capabilities.
This toggle switch has a maximum contact current of 50mA, making it suitable for low power circuits.
It operates within a temperature range of -20°C to 80°C, allowing reliable use in various environmental conditions.
The switch is designed for PCB mounting and features through hole terminals for secure connection.
The actuator of this model is 6mm in length, made from chrome plated brass for durability.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This switch has a mechanical life of up to 60,000 operations, providing longevity in usage.
The switch features nickel-plated brass metal parts and a PBT washable case for reliable insulation.
It operates at an AC contact voltage of 48V, suitable for various signal and control circuits.
This model is ideal for industrial automation equipment, electronic control panels, and laboratory instrumentation.
The switch operation type is On-On, providing two distinct switching positions.
The insulation resistance exceeds 500 MΩ at 250 Vdc, ensuring excellent electrical isolation for sensitive circuits.
