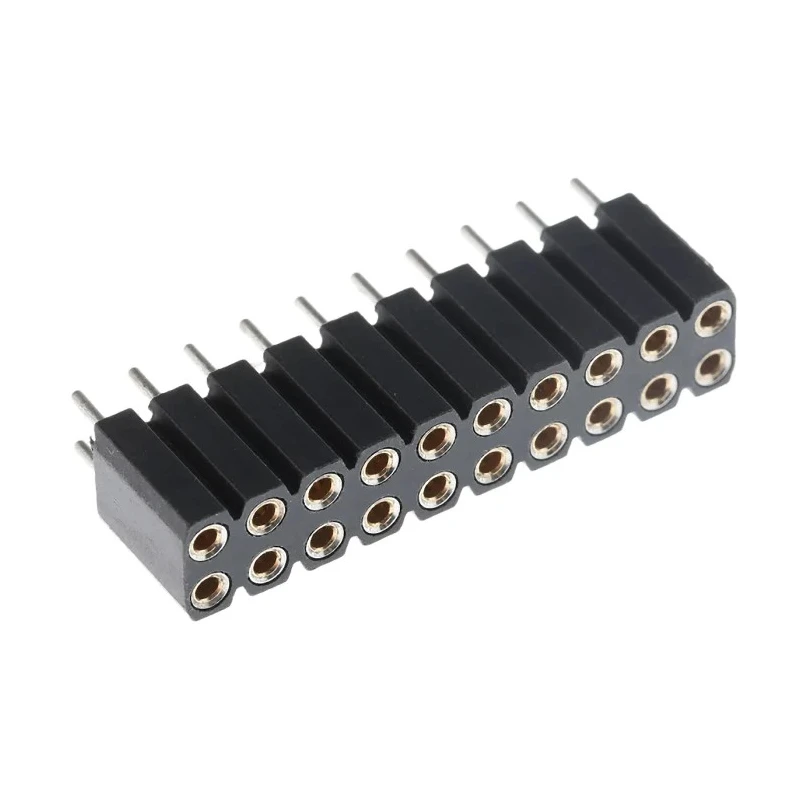

Preci-Dip 803 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch Solder 803-87-020-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Beryllium Copper Alloy |
| Series | 803 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold Flash |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features a straight surface mount design for reliable board-to-board connections.
- Contacts are female gender with beryllium copper alloy material and gold flash plating for excellent conductivity.
- The housing is made of black glass-filled polyester offering strength and durability.
- The socket supports a maximum operating voltage of 150 V and current of 12 A.
- It operates reliably from -55°C to 125°C temperature range.
- Contact pitch and row pitch are both 2.54 mm, suitable for standard PCB layouts.
- Designed and manufactured in Switzerland to high quality standards.
- The socket uses solder termination and offers a board-to-board connector system.
Product Description
Preci-Dip 803-87-020-10-001101 PCB Socket is a high-quality electronic component designed for board-to-board connection applications. This straight surface mount socket features 20 female contacts arranged in 2 rows with a standard 2.54 mm pitch, making it ideal for precise and reliable PCB assemblies.
The housing is constructed from black glass-filled polyester, providing robust insulation and mechanical strength. Contacts are crafted from beryllium copper alloy with a gold flash plating, ensuring excellent electrical conductivity and long-term reliability in demanding industrial, electronic manufacturing, and laboratory environments.
The socket supports a maximum operating voltage of 150 V and can handle up to 12 A of current, making it suitable for various electronic power and signal applications. It operates over a wide temperature range from -55°C to +125°C, ensuring stable performance in harsh conditions.
This PCB socket is designed for straightforward solder termination on surfaces, facilitating efficient assembly processes. It is a Swiss-made component, reflecting high manufacturing precision and quality control.
The socket features a straight orientation with a board-to-board connector system. Contact pitch and row pitch are standardized at 2.54 mm to fit common PCB designs. Its robust material construction ensures durability and performance consistency.
Suitable for applications in industrial electronics, automotive, communication equipment, and more. The product complies with UL 94V-0 standards for safety without specific certifications listed. Its gold flash contact plating minimizes corrosion and enhances electrical contact.
Preci-Dip connectors provide reliable interconnection solutions widely used in electronics manufacturing and testing setups. This model offers solder termination for solid mechanical and electrical bonding on surface-mounted PCBs.
Explore our complete range of PCB Sockets and connectors for diverse engineering and industrial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this PCB socket is 150 V.
This model can handle a maximum current of 12 A.
It operates reliably within a temperature range of -55°C to +125°C.
The socket features 20 female contacts arranged in 2 rows.
The contact pitch and row pitch for this socket are both 2.54 mm.
The housing is made of black glass-filled polyester, and the contacts are crafted from beryllium copper alloy with gold flash plating.
This model uses solder termination for connecting to PCBs.
The socket features a straight orientation for board-to-board connections.
Yes, it is suitable for applications in industrial electronics, automotive, and communication equipment.
This product is manufactured in Switzerland, reflecting high quality standards.
The contacts are female gender, designed for reliable connections.
The socket complies with UL 94V-0 standards for safety.
