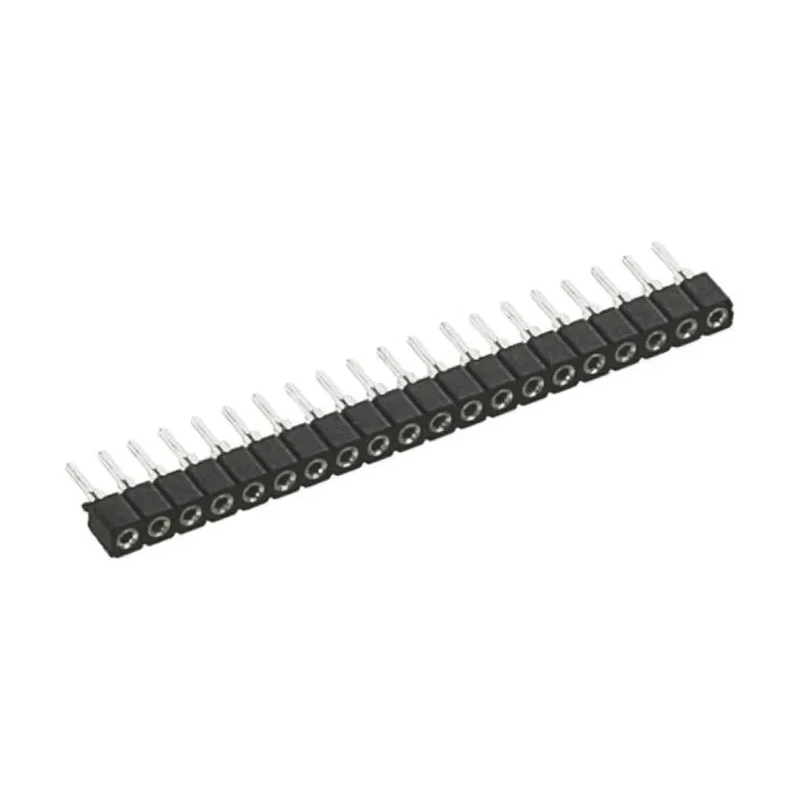

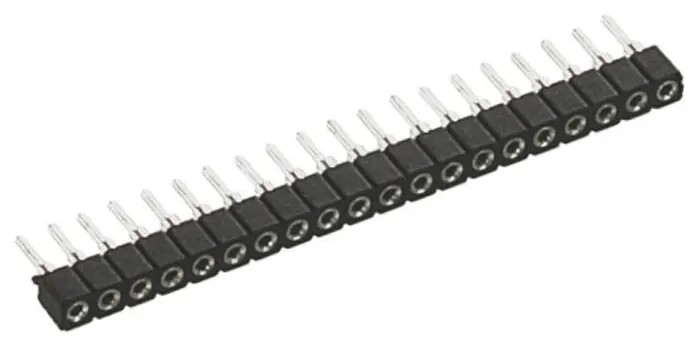

Preci-Dip 11 Way Preci-Dip Straight Through Hole 2 mm Pitch SIL Socket 100 V ac, 150 V dc, Solder, 3A 831-87-011-10-001101

Preci-Dip 831-87-011-10-001101 is an 11 Way SIL Socket designed for straight through-hole mounting with a 2 mm pitch. It operates safely at 100 V ac and 150 V dc and supports a maximum current of 3A, making it suitable for various electronic applications requiring durable and reliable socket connections.

The socket features contacts made of brass and beryllium copper alloy, which are plated with gold and tin to ensure excellent conductivity and resistance to corrosion. Its housing is constructed from fibreglass reinforced liquid crystal polymer, providing mechanical strength and thermal stability.

With a wide operating temperature range from -55°C to 125°C, this socket is suited for demanding industrial, laboratory, and manufacturing environments. The solder termination type and straight orientation facilitate secure and efficient PCB assembly.

Dimensions of the socket are compact with a length of 22 mm, width of 2.2 mm, and depth of 4.2 mm. The pins measure 3.2 mm in length and are designed to accommodate mating pins with diameters between 0.4 and 0.66 mm or 0.5 mm square pins, ensuring versatility for interconnect solutions.

This product complies with UL 94V-0 standards, reflecting its safety and quality. Originating from Switzerland, the socket is designed to meet the needs of precision electronic component connections.

Made with brass and beryllium copper alloy for reliable electrical contact. Features gold and tin contact plating for enhanced conductivity and corrosion resistance. Fibreglass reinforced liquid crystal polymer housing offers durability.

Supports a temperature range from -55°C up to 125°C for versatile use. Designed with a straight orientation and solder termination type for secure installation. Pin length is 3.2 mm, compatible with mating pins of 0.4 to 0.66 mm diameter or 0.5 mm square.

Compact dimensions: 22 mm length, 2.2 mm width, and 4.2 mm depth. Ideal for electronic components requiring precise, robust connections.

Preci-Dip 831-87-011-10-001101 SIL Sockets are widely used in electronic manufacturing, industrial equipment, and laboratory devices where quality and precision connections are essential. Browse EnvMart for other connectors and electronic components from Preci-Dip and related categories.
