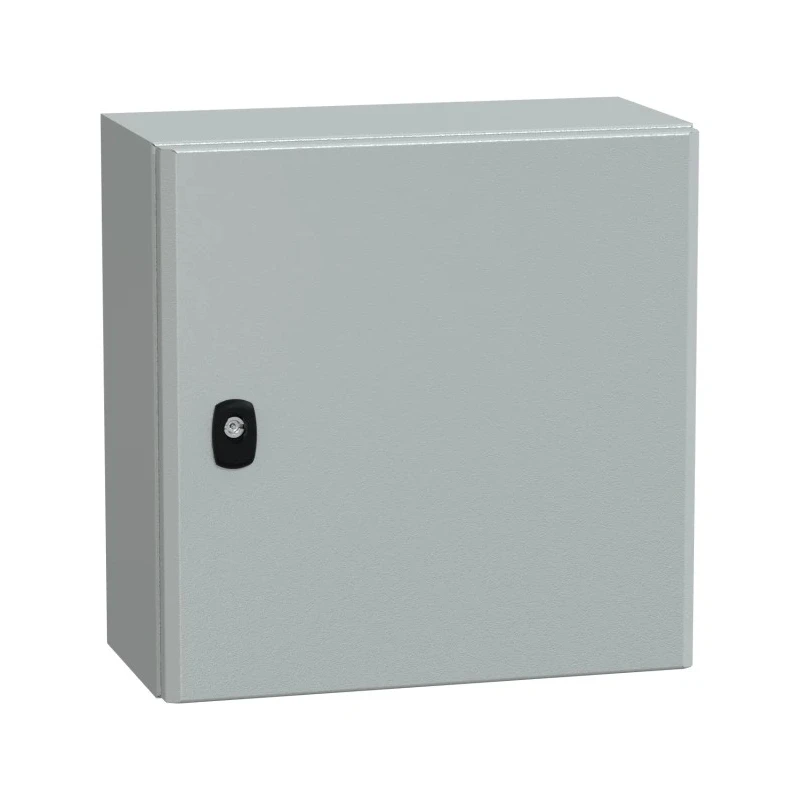

Schneider Electric PanelSeT S3DEX Series Steel Wall Box IP66 ATEX Certified, 400 mm x 400 mm x 200 mm S3DEX

Schneider Electric S3DEX PanelSeT Series Steel Wall Box S3DEX is a heavy duty steel electrical enclosure with external dimensions of 400 mm height, 400 mm width, and 200 mm depth. This wall-mounted enclosure features a high ingress protection rating of IP66, making it fully dust tight and capable of withstanding powerful water jets, suitable for both indoor and outdoor use in demanding environments.

The enclosure is certified under ATEX II2 and II3 hazardous area classifications, supporting safe operation in zones with potential explosive atmospheres containing flammable gas or dust. It complies with multiple global standards such as RoHS, DNV, BV, IEC 62208, REACH, LR, UL, and cUL, ensuring adherence to quality, environmental safety, and international acceptance.

Body construction uses a one-piece folded and welded steel body with a double plate thickness gutter-shaped profile on the front face. The enclosure includes a plain front face door with a 3 mm double-bar quarter turn lock for secure closure, cable gland plate for optimized wiring entries, and four shouldered M8x25 backstuds with crimped blind nuts for mounting.

The product incorporates an IK10 rating for mechanical impact resistance, protecting against impacts from a 5 kg object dropped from 20 cm. It is colored grey and designed for panel internal mounting. Additionally, a fixing kit is supplied to facilitate secure installation.

These wall boxes are intended for use in industrial, electrical, automation, and hazardous area applications requiring reliable protective containment of electrical and electronic components. The design emphasizes sustainability with a better world claim of being designed for disassembly to reduce environmental impact.

Constructed with durable steel providing robust mechanical protection. Certified IP66 ensures protection against dust and powerful water jets for outdoor use. ATEX certified for safe deployment in potentially explosive environments.

Includes quarter turn locking system for secure access control. Equipped with cable gland plate and mounting hardware for efficient installation. High impact resistance rated IK10 for industrial usage conditions. Supports compliance with global safety and environmental standards.
