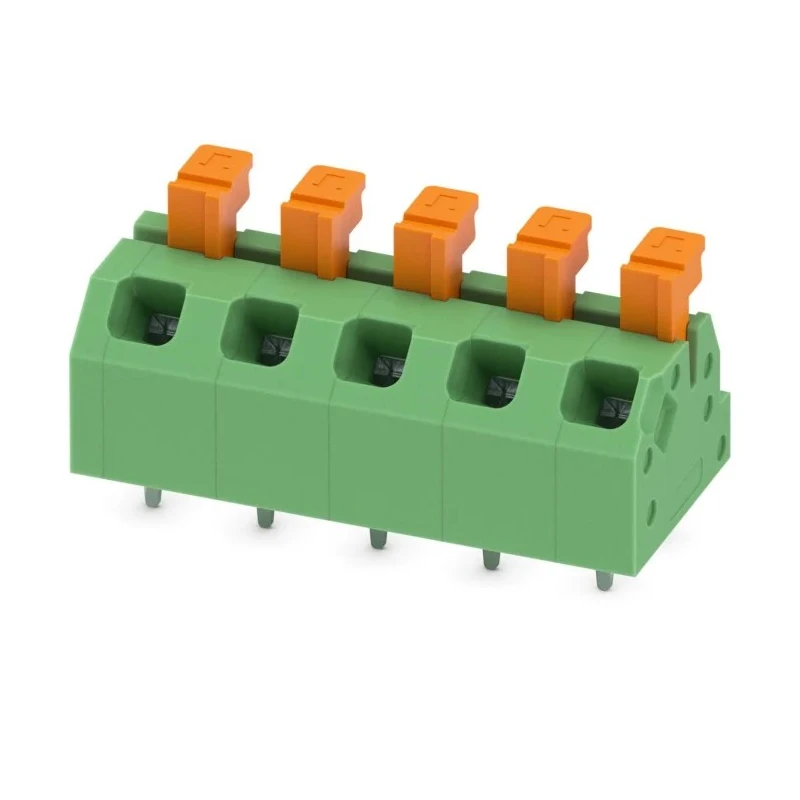

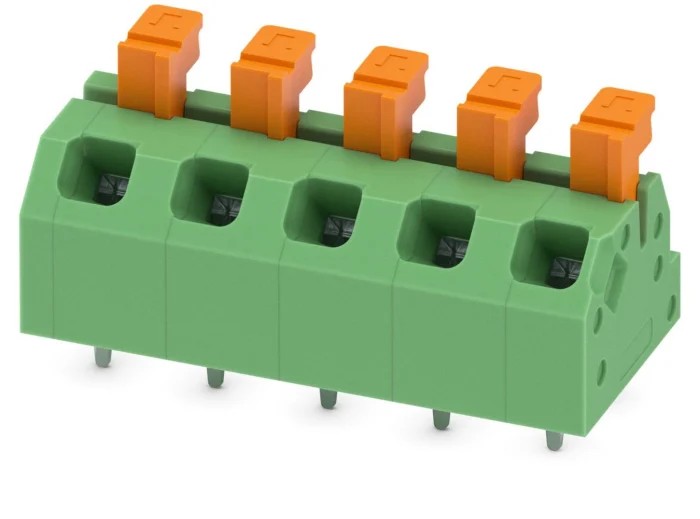

Phoenix Contact SPTAF 1/ 5-5.0-LL Series Angled PCB Terminal Block 5 Contact 5 mm Pitch 320 V 13.5 A 2 Row 1864464
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 13.5A |
| Model | 1864464 |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 5-5.0-LL |
| Number of Rows | 2 |
| Pitch | 5mm |
| Standards/Approvals | UL Recognised, EU RoHS, cULus Recognised |
| Number of Contacts | 5 |
| PCB Terminal block, nominal current | 13.5 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 5, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Features push-in spring connection for fast and tool-free wiring.
- Two-row angled orientation with 45° conductor connection to optimize PCB layout.
- Constructed using durable polyamide housing for electrical insulation and mechanical strength.
- Integrated testing option allows quick and convenient verification of connections.
- Complies with UL Recognised, cULus Recognised, and EU RoHS standards for quality and safety.
Product Description
Phoenix Contact 1864464 angled PCB terminal block is a high-performance electrical connector designed for electronics and industrial applications. This terminal block features 5 contacts with a 5 mm pitch and a two-row footprint, allowing compact and reliable wire-to-board connections.
Rated for a nominal current of 13.5 A and a voltage of 320 V, it ensures safe operation under typical industrial conditions. The push-in spring connection mechanism offers fast, secure wiring without requiring tools, reducing assembly times. The angled 45° conductor/PCB connection orientation optimizes PCB space and routing.
The housing is made of polyamide, providing excellent mechanical stability, electrical insulation, and resistance to environmental factors. Compliance with UL Recognised, cULus Recognised, and EU RoHS standards guarantees product quality and environmental safety.
Additional features include a finger-operated and lockable release button that enhances usability and a built-in test port for convenient troubleshooting. The terminal block is mounted using wave soldering, suitable for automated PCB assembly.
Ideal for industrial, electronics manufacturing, control panels, and automation systems, this terminal block offers reliable connectivity, time-saving installation, and space efficiency.
Push-in spring connection enables fast, tool-free wiring. Angled 45° conductor connection for optimized PCB layout. Polyamide housing ensures durability and insulation. Integrated test option for connection verification.
Compliance with UL, cULus, and RoHS standards. Discover more Phoenix Contact industrial electrical components and PCB Terminal Blocks at EnvMart to enhance your electronic assemblies and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal current rating of 13.5 A and a voltage rating of 320 V.
It features a pitch of 5 mm and includes 5 contacts.
The connection method is a push-in spring connection, allowing for fast and tool-free wiring.
The conductor connection is angled at 45°, optimizing the PCB layout.
The housing is constructed from polyamide, providing electrical insulation and mechanical strength.
It complies with UL Recognised, cULus Recognised, and EU RoHS standards.
It is mounted using wave soldering, which is suitable for automated PCB assembly.
The terminal block has a two-row footprint, but specific dimensions are not provided in the data.
Yes, it includes an integrated testing option that allows for quick and convenient verification of connections.
It is ideal for industrial, electronics manufacturing, control panels, and automation systems.
The country of origin is Germany.
This terminal block belongs to the SPTAF 1/ 5-5.0-LL series.
