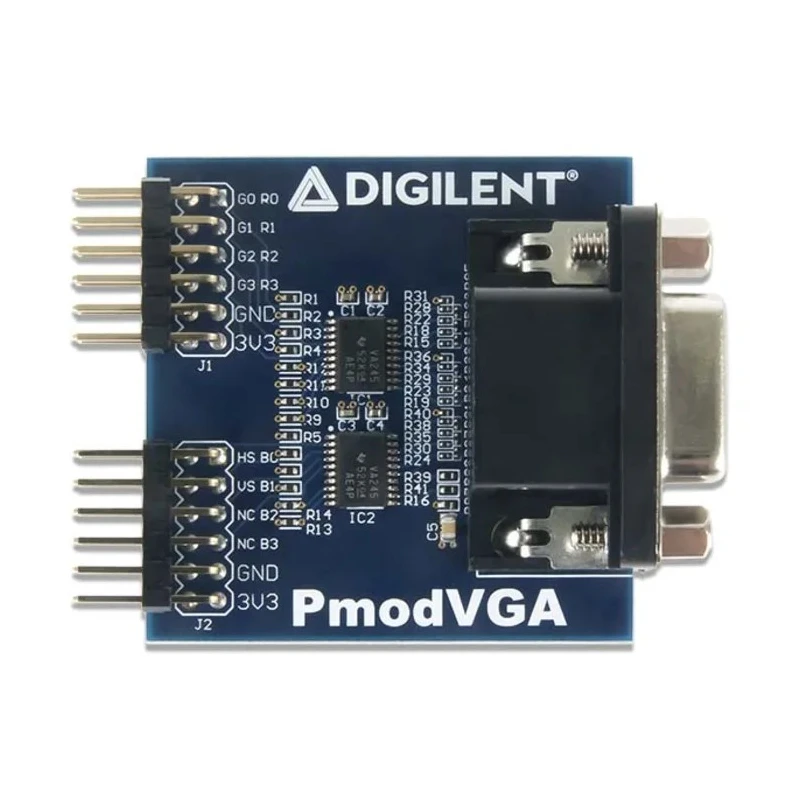

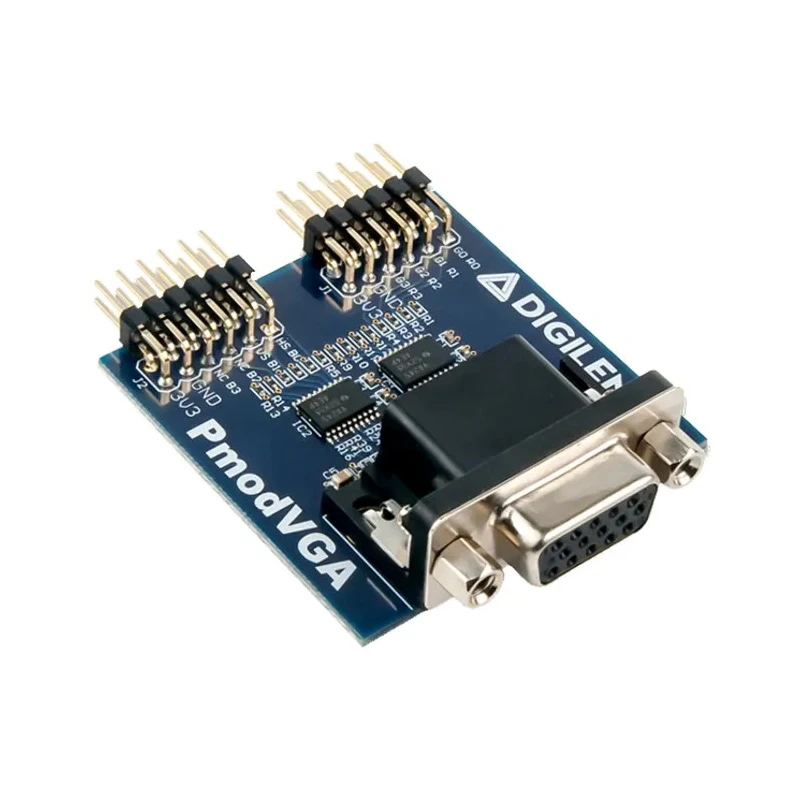

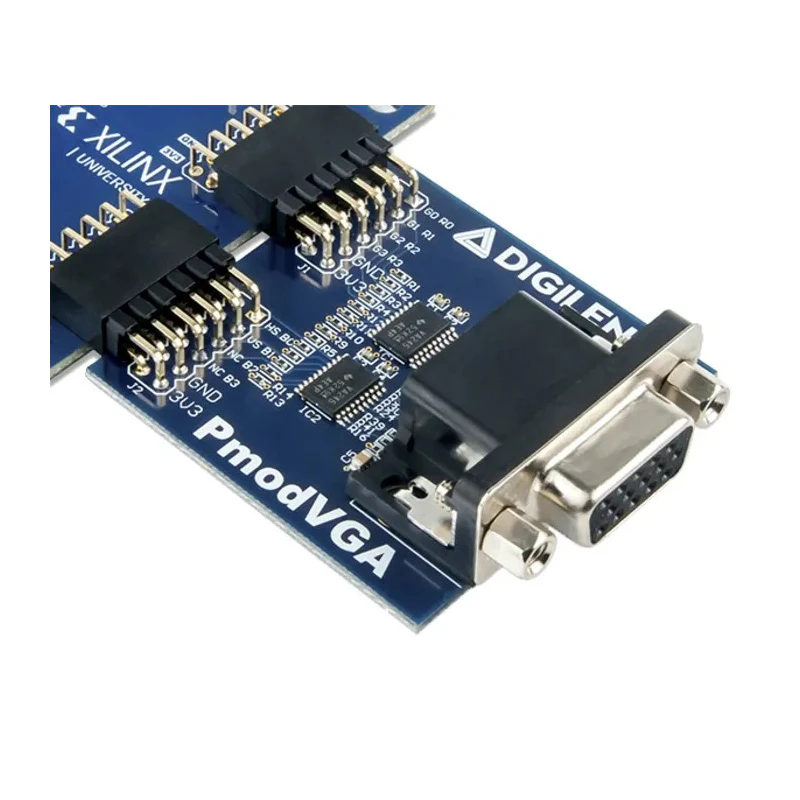

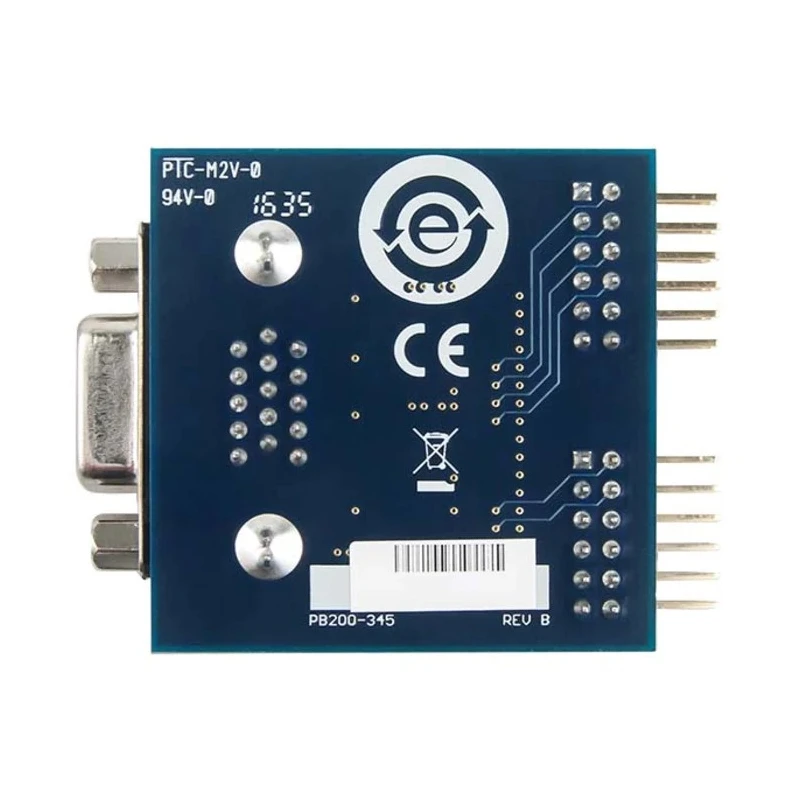

Digilent Pmod VGA Communication & Wireless Development Board 410-345
Specifications
| Country of Origin | India |
|---|---|
| Brand | Digilent |
| Model | 410-345 |
| Technology | Development Board |
| Kit Classification | Development Board |
| Kit Name | Pmod VGA |
| Colour Depth | 12-bit RGB444 |
Key Features
- The VGA port supports connection to televisions and monitors.
- It features a 12-bit RGB444 colour depth for rich display quality.
- The board uses a simple, high-speed R-2R resistor ladder DAC for signal conversion.
- High-speed buffers support pixel clocks up to 150 MHz for smooth image rendering.
- Compact PCB size of 1.7 x 1.7 inches (4.3 cm x 4.3 cm) allows flexible integration in designs.
- Equipped with a dual 12-pin Pmod connector providing a GPIO interface.
- Designed according to the Digilent Pmod Interface Specification ensuring compatibility.
Product Description
The Digilent 410-345 Pmod VGA Communication & Wireless Development Board is designed to add VGA output functionality to any host board featuring Pmod connectivity. It facilitates driving standard displays such as televisions and computer monitors through a VGA port.
This development board offers a 12-bit RGB444 colour depth, delivering enhanced color quality. It employs a high-speed R-2R resistor ladder DAC chipset for accurate digital-to-analog conversion, essential for clear video output.
Featuring high-speed buffers, the board supports pixel clocks up to 150 MHz, enabling smooth and stable image refresh rates suitable for various display requirements.
The board is built on a compact printed circuit board measuring 1.7 x 1.7 inches (4.3 cm x 4.3 cm), making it suitable for space-constrained applications. It provides a dual 12-pin Pmod connector that offers a versatile GPIO interface for easy integration with host systems.
Intended for use in diverse applications including industrial development, educational projects, and prototype designs requiring video output capabilities, the Pmod VGA board adheres strictly to the Digilent Pmod Interface Specification ensuring broad compatibility with Digilent and other compatible systems.
Its structural and functional design make it an ideal choice for electronics developers working on communication, wireless, and computing projects needing reliable VGA output interfaces.
The VGA port supports connection to televisions and monitors. 12-bit RGB444 colour depth ensures quality display output. R-2R resistor ladder DAC provides precise signal conversion. High-speed buffers enable pixel clocks up to 150 MHz.
Compact 1.7 x 1.7 inch PCB supports flexible design integration. Dual 12-pin Pmod connector offers GPIO interface compatibility. Compliant with Digilent Pmod Interface Specification. Explore similar digital and communication development tools on EnvMart for enhanced electronics and wireless projects.
Explore more products in our Communication & Wireless Development Tool category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The board features a 12-bit RGB444 colour depth, which enhances the quality of the display output.
It supports pixel clocks up to 150 MHz, allowing for smooth and stable image rendering.
The compact PCB measures 1.7 x 1.7 inches (4.3 cm x 4.3 cm), making it suitable for space-constrained applications.
It is equipped with a dual 12-pin Pmod connector that provides a GPIO interface for easy integration with host systems.
Yes, it adheres to the Digilent Pmod Interface Specification, ensuring compatibility with various systems.
It is intended for use in industrial development, educational projects, and prototype designs requiring video output capabilities.
The country of origin for this product is India.
This product is categorized as a Development Board, specifically designed for communication and wireless applications.
Its primary function is to add VGA output functionality to any host board featuring Pmod connectivity.
The details regarding included accessories or components are not specified; please confirm requirements through an enquiry.
