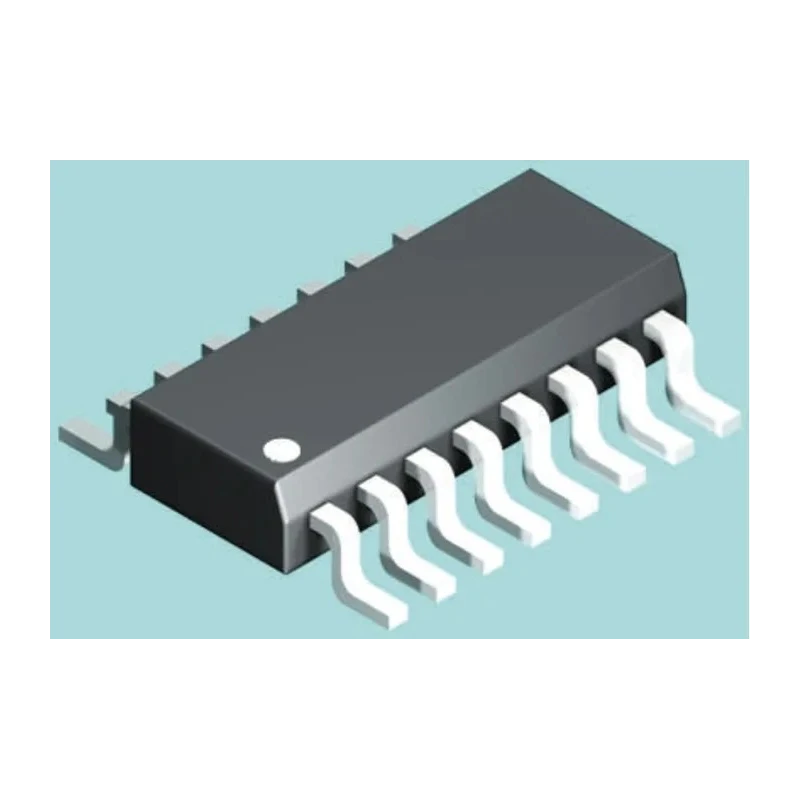

Broadcom DC Input 3-Channel Optocoupler Surface Mount 16-Pin SOIC ACSL-6310-00TE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACSL-6310-00TE |
| Packaging | Tube |
| Mount Type | Surface |
| Series | ACSL |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 15mA |
| Number Of Channels | 3 |
| Standards/Approvals | IEC, UL, CSA |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 35ns |
| Typical Fall Time | 12ns |
Key Features
- Surface mount with 16-pin SOIC package for efficient PCB integration.
- Supports three channels enabling multi-signal processing within a single device.
- Maximum forward voltage of 1.8V ensures low power dissipation.
- Operating temperature range from -40°C to 100°C suits diverse application environments.
- Typical rise time of 35ns and fall time of 12ns for fast signal response.
- Can handle maximum input current up to 15mA at DC input.
- Isolation voltage rated at 2.5kVrms for enhanced circuit protection.
- Compliant with IEC, UL, and CSA standards ensuring safety and reliability.
Product Description
Broadcom ACSL-6310-00TE is a high-performance DC input optocoupler designed for industrial and commercial electronic applications requiring precise signal isolation and logic output. This 3-channel optocoupler features a surface mount 16-pin SOIC package, facilitating ease of integration into compact printed circuit boards.
Featuring a maximum forward voltage of 1.8V and maximum input current of 15mA, this device operates efficiently with minimal power loss. The typical rise time of 35ns and fall time of 12ns support fast switching speeds necessary for real-time signal processing.
The operating temperature range from -40°C to 100°C enables reliable function in harsh and variable environments, making it suitable for industrial control systems, telecommunications equipment, and automation machinery. The isolation voltage rating of 2.5kVrms provides robust protection against electrical noise and voltage spikes.
The product is supplied in tube packaging to protect against damage during transit and facilitate automated insertion methods. Surface mount 16-pin SOIC package allows easy PCB assembly. Three independent input channels for multi-signal isolation.
Low forward voltage supports low power consumption. Wide operating temperature range for harsh environments. Fast switching with 35ns rise and 12ns fall times. High input current tolerance up to 15mA DC input. 2.5 kVrms isolation voltage for robust noise protection.
Certified by IEC, UL, and CSA standards. Packaged in tubes for safe handling and automated processing.
This Broadcom optocoupler is ideal for use in industrial automation, controller boards, telecommunication devices, and other electronic applications requiring reliable electrical isolation and signal integrity. Explore more electronic components and Optocouplers on EnvMart to find compatible parts for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 15mA at DC input.
It operates within a temperature range of -40°C to 100°C, making it suitable for various environmental conditions.
The isolation voltage is rated at 2.5kVrms, providing robust protection against electrical noise and voltage spikes.
The typical rise time is 35ns and the fall time is 12ns, supporting fast signal response.
This optocoupler supports three independent channels for multi-signal processing.
It is supplied in tube packaging, which protects the components during transit and facilitates automated insertion methods.
The maximum forward voltage is 1.8V, ensuring low power dissipation during operation.
This model features a surface mount design, which allows for efficient PCB integration.
It is compliant with IEC, UL, and CSA standards, ensuring safety and reliability in its applications.
This optocoupler has 16 pins, fitting into a SOIC package type.
It is suitable for industrial automation, controller boards, telecommunication devices, and other electronic applications requiring reliable electrical isolation.
This model belongs to the ACSL series of optocouplers from Broadcom.
