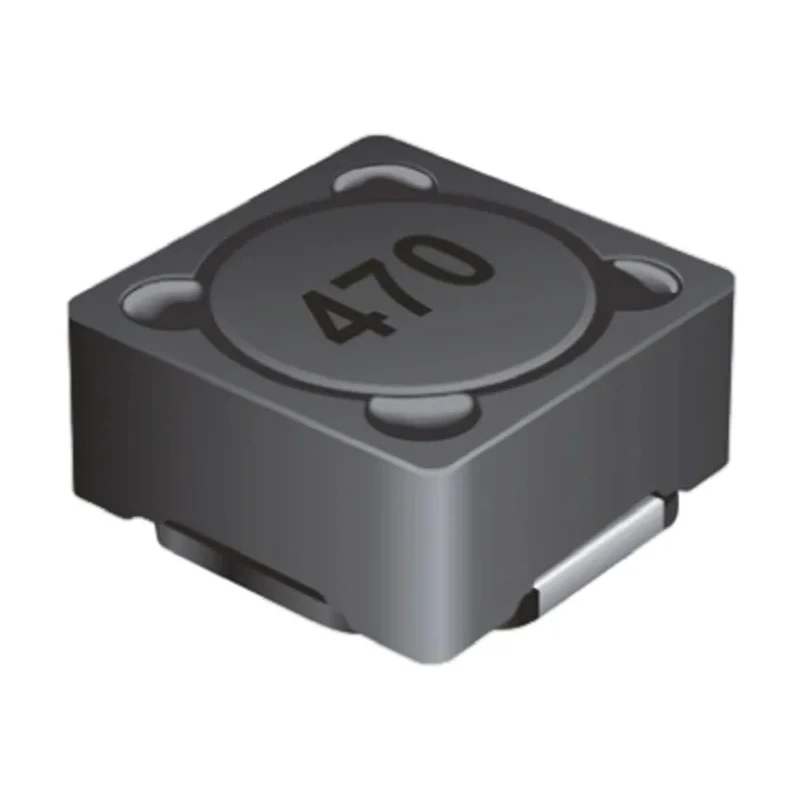

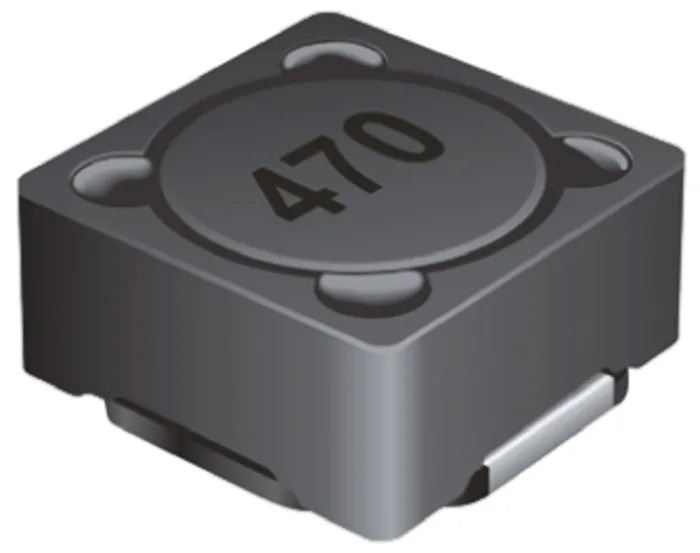

Bourns 1260 Shielded Wirewound Surface Mount Inductor 470 μH ±10% 950 mA IDC Q:18 SRR1260

Free Delivery in India | Lowest Global Shipping Charges

Bourns 1260 Shielded Wirewound Surface Mount Inductor 470 μH ±10% 950 mA IDC Q:18 SRR1260

Name: Bourns 1260 Shielded Wirewound Surface Mount Inductor 470 μH ±10% 950 mA IDC Q:18 SRR1260
Brand: BOURNS
SKU: 213074
Price: 1.05 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	6mm
Length	12.5mm
Model	SRR1260
Depth	12.5mm
Packaging	Reel
Series	SRR1260
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	470μH
Standards/Approvals	RoHS
Package/Case	1260
Maximum DC Current	950mA
Pin Count	2
Maximum DC Resistance	820mΩ
Inductance Tolerance	±10 %
Termination Style	Solder
Maximum Self Resonant Frequency	2.6MHz
Minimum Quality Factor	18
Inductor Construction	Wirewound

Key Features

Features a low profile height of 6 mm ideal for compact PCB layouts.
Provides magnetic shielding suitable for high frequency applications.
Constructed with a ferrite core and wirewound inductor technology.
Maximum DC resistance of 820 mΩ ensures efficient current flow.
Supports operating temperature range from -40°C to 125°C for robust use.
Designed for solder termination and molded construction for durability.
Maximum self-resonant frequency of 2.6 MHz with a minimum quality factor of 18.

Product Description

Bourns SRR1260 shielded wirewound surface mount inductor with ferrite core, model SRR1260, provides a precise inductance of 470 μH ±10% and supports a maximum DC current of 950 mA. This low profile inductor has a height of 6 mm and depth of 12.5 mm, making it suitable for compact PCB designs in demanding electronic circuits.

Manufactured with a ferrite core and wirewound construction, it offers magnetic shielding which minimizes interference, making it ideal for use in input/output circuits of DC/DC converters and power supplies. The device features a solder termination style and is molded for increased reliability in industrial and commercial electronics environments.

The inductor supports a wide operating temperature range from -40°C to 125°C, ensuring stable performance under varying conditions. It has a maximum DC resistance of 820 mΩ, a maximum self-resonant frequency of 2.6 MHz, and a minimum quality factor of 18, making it effective for high frequency applications.

This component is commonly applied in portable communication equipment, camcorders, LCD televisions, and car radios, where high current handling and efficient electromagnetic compatibility are essential.

Low profile 6 mm height suitable for space-constrained applications. Magnetically shielded wirewound construction for reduced interference. Robust ferrite core designed for efficient inductance and stability. Wide operating temperature range from -40°C to 125°C.

Maximum DC current rating of 950 mA for high power handling. Molded and solder termination style enhances durability and ease of assembly. High self-resonant frequency of 2.6 MHz supports high frequency circuit requirements.

Available in reel packaging format, this inductor enables efficient automated assembly processes, improving production throughput.

It is RoHS compliant and meets industry standards for quality and environmental safety. Bourns inductors in the SRR1260 series are trusted components for electronic manufacturing, ensuring reliable performance in various industrial, commercial, and consumer electronic applications.
