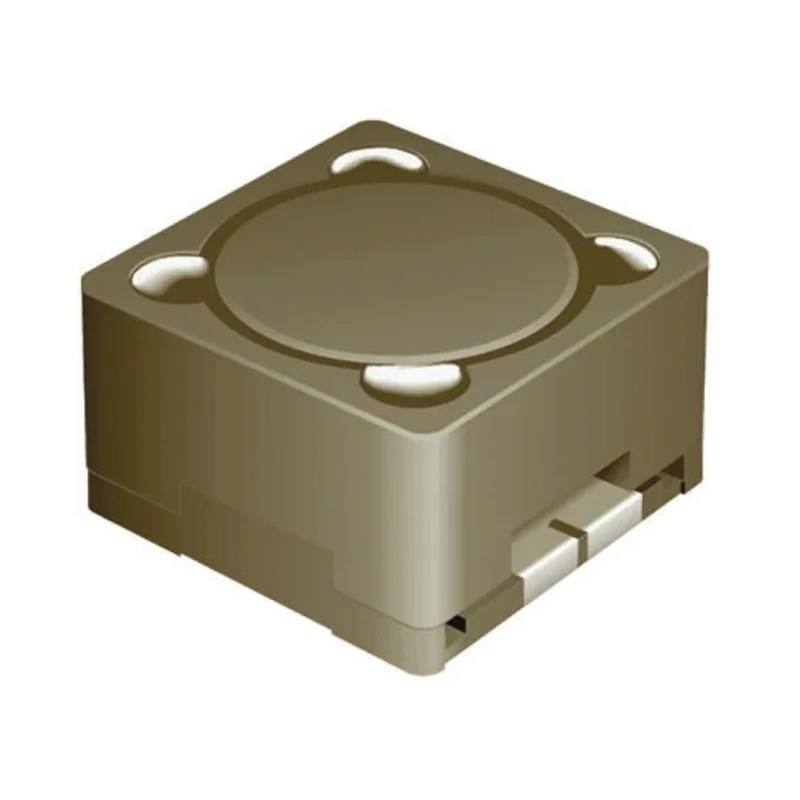

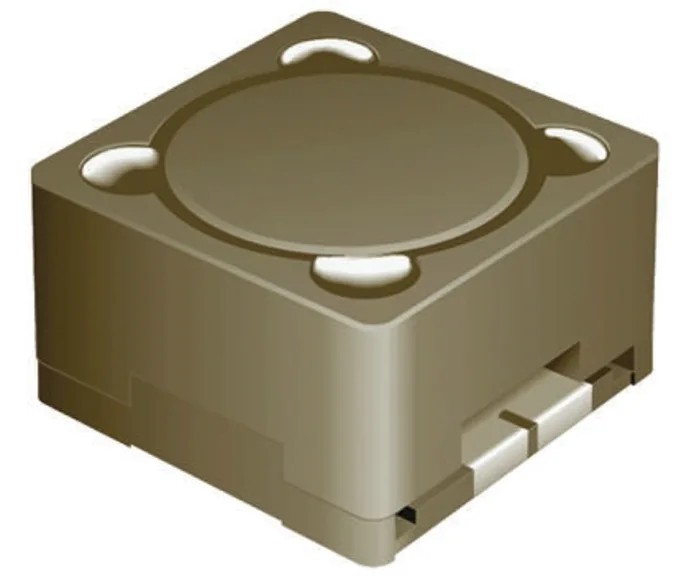

Bourns Shielded Wirewound Surface Mount Inductor 1208 Case 10 μH ±20 % 5A Idc Ferrite Core SRR1208

Bourns SRR1208 Shielded Wirewound Surface Mount Inductor with a Ferrite Core delivers 10 μH inductance with ±20 % tolerance and supports a maximum DC current of 5A. This surface mount device uses a magnetically shielded wirewound construction within a compact 1208 package, measuring 12.7mm in length and 8.5mm in height. The ferrite core material enhances performance at high frequencies, while the moulded construction provides durability.

It operates reliably within an extended temperature range from -40°C to 125°C, making it suitable for industrial, electronic manufacturing, and power management applications. The inductor has a maximum DC resistance of 21mΩ which ensures low power loss and high efficiency under operational currents.

The solder termination style supports secure surface mounting on printed circuit boards, and the product is RoHS compliant, meeting environmental standards. The SRR1208 series offers a self-resonant frequency up to 15 MHz and a quality factor minimum of 20, supporting demanding electronic filtering and power conversion tasks.

Applications include DC-DC converters, EMI filter circuits, power supplies, and other high frequency electronics typical in industrial and commercial environments. The product is supplied on a reel for efficient automated insertion and assembly.

Magnetically shielded wirewound design for noise reduction. Compact 1208 case package dimensions. Ferrite core for enhanced magnetic properties. High current rating with 5A DC maximum. Wide operating temperature from -40°C to 125°C.

Low DC resistance at 21mΩ for efficiency. RoHS environmental compliance. Ideal for high frequency power and EMI filtering applications. Supplied in reel packaging for production ease. Explore more electronic components and Surface Mount Inductors in the EnvMart catalog for a full range of industrial and commercial electronic assembly solutions.
